LESSON 7.3 · 1:41 · CHAPTER 7 · WARP AND DESIGN
Walls come in bead units
A wall thickness that isn't a whole number of beads forces the slicer to leave a gap or squeeze the beads.
Predict · at 0:28 in the video
A 20 millimetre bead, and a 50 millimetre wall in CAD. What does the slicer do?
One of two bad things. Two beads, and a ten millimetre gap between them. Or three beads squeezed to 16.7 millimetres each.
Further reading
This course is our own. These books go deeper.
- The economics of Big Area Additive Manufacturing, Post et al., Solid Freeform Fabrication Symposium, 2016
- Additively manufactured carbon fibre-reinforced composites: state of the art and perspective, van de Werken et al., Composites Part A, 2020
About the numbers
Simulations in this lesson are our own. Where a number rests on an assumption or a single source, the video marks it with an asterisk and says where it comes from.

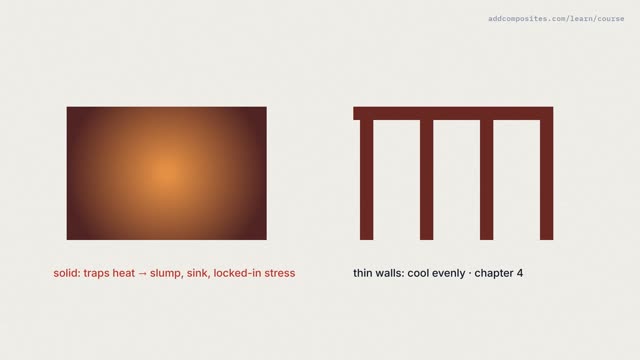

Up next · 7.4 · 1:45Ribs, not bricks
