LESSON 6.3 · 2:01 · CHAPTER 6 · CHOOSING AND HANDLING A MATERIAL
Moulded datasheet, printed reality
Many sheets quote injection-moulded bars; a printed part delivers 0.3 to 0.9 of that along the bead and 0.15 to 0.4 across the layers.
Predict · at 0:31 in the video
A sheet quotes 123 megapascals for a 30 percent carbon fibre PETG. Moulded. What should a printed tool be designed on, along the bead and across?
Bracket it. Along the bead, 0.3 to 0.9 of the moulded number: 37 to 111. Across the layers, 0.15 to 0.4: 18 to 49.
Further reading
This course is our own. These books go deeper.
- The economics of Big Area Additive Manufacturing, Post et al., Solid Freeform Fabrication Symposium, 2016
- Additively manufactured carbon fibre-reinforced composites: state of the art and perspective, van de Werken et al., Composites Part A, 2020
About the numbers
Simulations in this lesson are our own. Where a number rests on an assumption or a single source, the video marks it with an asterisk and says where it comes from.

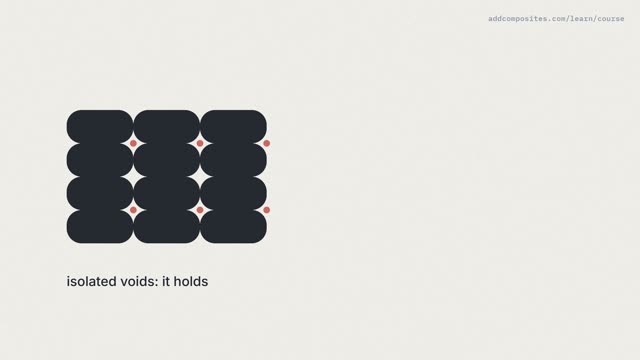

Up next · 6.4 · 1:49Porosity in two densities
