LESSON 4.6 · 1:56 · CHAPTER 4 · LAYER TIME AND THE WELD
Infrared heats a skin
An infrared lamp can rescue a cold substrate, but it heats only a thin surface layer that the cold bulk soon pulls back down.
Predict · at 0:33 in the video
A lamp 6.35 centimetres long passes over the bead at 5.1 centimetres a second. How deep does the heat soak in during the pass?
About 0.45 millimetres. The spot sees the lamp for 1.25 seconds. That soaks heat in under half a millimetre.
Further reading
This course is our own. These books go deeper.
- The economics of Big Area Additive Manufacturing, Post et al., Solid Freeform Fabrication Symposium, 2016
- Additively manufactured carbon fibre-reinforced composites: state of the art and perspective, van de Werken et al., Composites Part A, 2020
About the numbers
Simulations in this lesson are our own. Where a number rests on an assumption or a single source, the video marks it with an asterisk and says where it comes from.

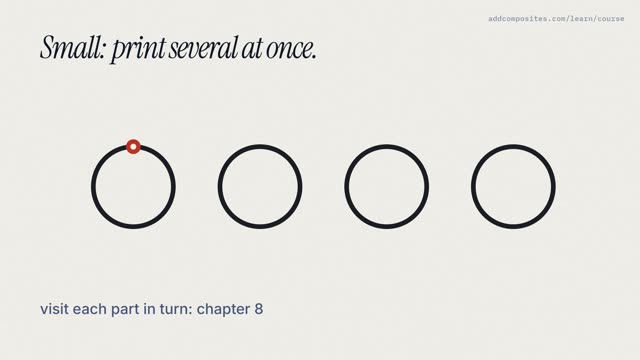

Up next · 4.7 · 2:08Big parts can be worse than small ones
