LESSON 7.4 · 1:42 · CHAPTER 7 · FIBRE, RESIN AND TENSION
More resin, fewer voids
Voids are air trapped between bands. Pressing each band onto a resin-rich surface pushes the air out through the resin ahead of it; on a dry surface the air has nowhere to go. The excess resin is squeezed out and bled off.
Predict · at 0:35 in the video
So, does adding more resin make voids worse, or better?
Better. As long as the excess is squeezed through and bled off. The final fibre content comes from the squeeze, not from starving the layup.
Further reading
This course is our own. These books go deeper.
- Composite Filament Winding, S. T. Peters (ed.), ASM International, 2011
- Filament Winding: a Unified Approach, S. Koussios, Delft University Press, 2004
About the numbers
Simulations in this lesson are our own. Where a number rests on an assumption, the video marks it with an asterisk and says where it comes from.

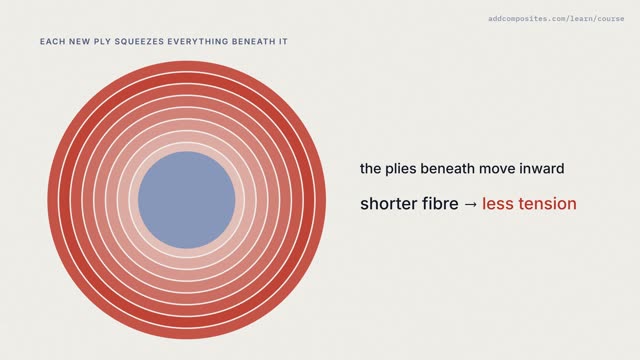

Up next · 7.5 · 1:49Thick walls lose their grip
