LESSON 6.3 · 1:54 · CHAPTER 6 · THE MACHINE AND THE CELL
Turning around at a pipe end
A pipe has no dome, so the fibre turns around at the end by dwelling or overshooting. A long dwell lays near-hoop wraps on one spot: a thick, wasted end. A short overshoot turns the fibre in less length with less build-up.
Predict · at 0:35 in the video
A long dwell, or a short overshoot: which wastes more material at the end?
The long dwell. If the carriage carries on a little past the end, slowing down as the mandrel turns, the fibre swings round in a shorter length, with fewer wraps on one spot.
Further reading
This course is our own. These books go deeper.
- Composite Filament Winding, S. T. Peters (ed.), ASM International, 2011
- Filament Winding: a Unified Approach, S. Koussios, Delft University Press, 2004
About the numbers
Simulations in this lesson are our own. Where a number rests on an assumption, the video marks it with an asterisk and says where it comes from.

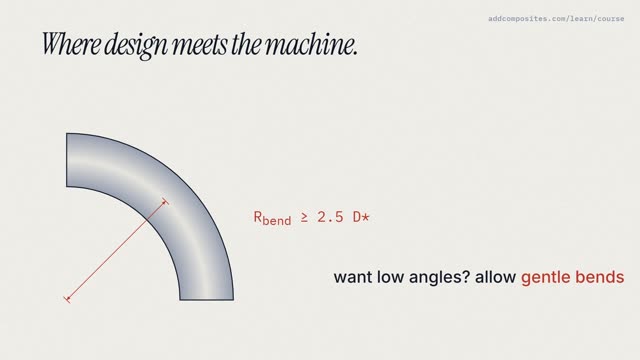

Up next · 6.4 · 1:55Robots wind what lathes can't
