Black aluminium
Copying a metal part in quasi-isotropic carbon at the same thickness makes it softer than the aluminium (55 against 74 GPa); carbon only beats it along the load when the fibres are aimed at that load.
Predict · at 0:42 in the video
Same thickness. Quasi-isotropic carbon, or the aluminium: which one is stiffer?
The aluminium. About 74 against 55 gigapascals. That's what people mean by black aluminium: a metal design, made in carbon.
This course is our own. These books go deeper.
- Basic Mechanics of Laminated Composite Plates, A. T. Nettles, NASA Reference Publication 1351, 1994
- Mechanics of Composite Materials, R. M. Jones, Taylor & Francis, 2nd ed., 1999
- Engineering Mechanics of Composite Materials, I. M. Daniel & O. Ishai, Oxford University Press, 2nd ed., 2006
- Design and Analysis of Composite Structures, C. Kassapoglou, Wiley, 2nd ed., 2013
- Composite Materials Handbook (CMH-17), Volume 3, Rev. G, CMH-17, SAE International, 2012

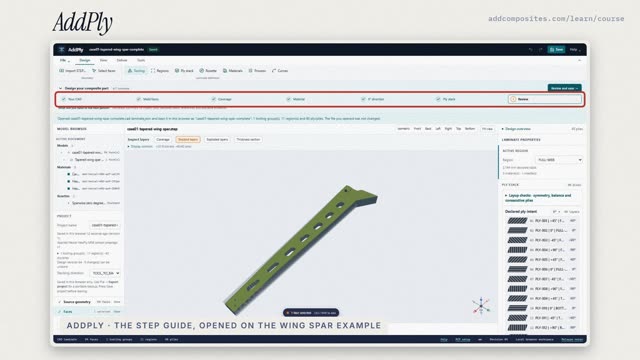

The course designs in AddPly, our browser app for laminate design: regions, ply stacks with live stacking-rule checks, thickness, mass and the ply book. It does not do strength, failure or draping; where a lesson covers those, the simulation is our own.
Simulations in this lesson are our own. Ply data come from the datasheet or textbook named on screen; where a number rests on an assumption, the video says so.
