LESSON 8.2 · 1:57 · CHAPTER 8 · MACHINES, PATHS AND MACHINING
Tilt the layer, not the part
A multi-axis head can tilt the slicing plane so a steep overhang becomes a gentle step.
Predict · at 0:34 in the video
A three millimetre layer, a 6.6 millimetre bead, and a 60 degree wall. What's the step per layer sliced flat? And with the layer plane tilted 45 degrees?
5.2 millimetres flat. 0.8 tilted. Flat, the step is 79 percent of the bead.
Further reading
This course is our own. These books go deeper.
- The economics of Big Area Additive Manufacturing, Post et al., Solid Freeform Fabrication Symposium, 2016
- Additively manufactured carbon fibre-reinforced composites: state of the art and perspective, van de Werken et al., Composites Part A, 2020
About the numbers
Simulations in this lesson are our own. Where a number rests on an assumption or a single source, the video marks it with an asterisk and says where it comes from.

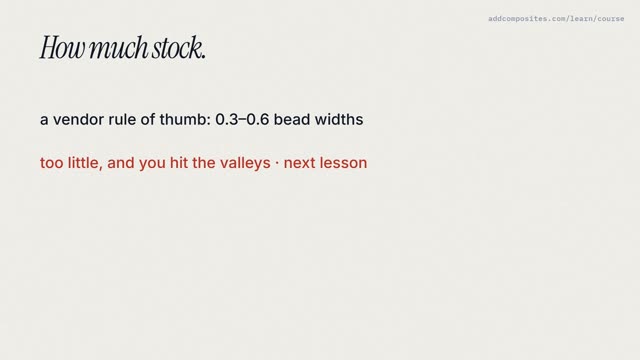

Up next · 8.3 · 1:43Print fat, cut thin
