LESSON 5.2 · 2:04 · CHAPTER 5 · WHAT'S IN THE PELLET
Where the fibres point
Nozzle shear lines up the shell of a big bead, but the core flows as a plug and stays nearly random.
Predict · at 0:40 in the video
On a desktop printer, carbon fibre ABS has an orientation value of about 0.9 along the print, where one is perfect and a third is random. What is it at the centre of a large format bead?
About 0.36. Almost random. A third would be fully random.
Further reading
This course is our own. These books go deeper.
- The economics of Big Area Additive Manufacturing, Post et al., Solid Freeform Fabrication Symposium, 2016
- Additively manufactured carbon fibre-reinforced composites: state of the art and perspective, van de Werken et al., Composites Part A, 2020
About the numbers
Simulations in this lesson are our own. Where a number rests on an assumption or a single source, the video marks it with an asterisk and says where it comes from.

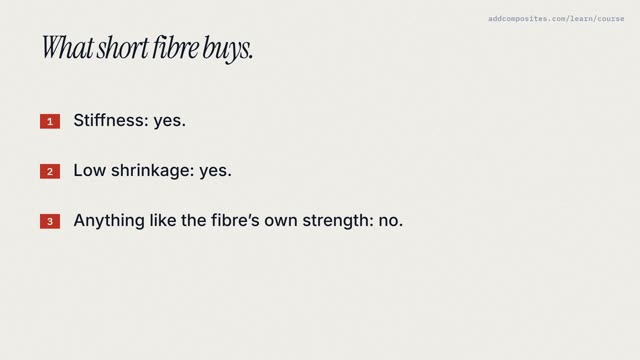

Up next · 5.3 · 2:13Short fibres never reach full strength
