LESSON 3.5 · 2:21 · CHAPTER 3 · PATHS ON CURVED SURFACES
You can't hoop-wind a steep cone
On a cone of half-angle β, part of a hoop's squeeze points along the surface toward the small end. The hoop stays put only while μ > tan β; at μ = 0.15 the limit is about 8.5°.
Predict · at 0:52 in the video
Friction 0.15. Do hoops stay on a 15 degree cone?
No. Tan 15 degrees is 0.27, nearly double the friction available. At mu 0.15, the steepest cone you can hoop-wind is about 8.5 degrees.
Further reading
This course is our own. These books go deeper.
- Composite Filament Winding, S. T. Peters (ed.), ASM International, 2011
- Filament Winding: a Unified Approach, S. Koussios, Delft University Press, 2004
About the numbers
Simulations in this lesson are our own. Where a number rests on an assumption, the video marks it with an asterisk and says where it comes from.

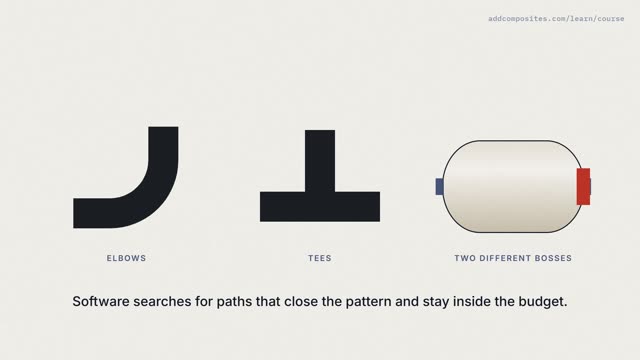

Up next · 3.6 · 2:56Bending the rules
