LESSON 3.4 · 2:27 · CHAPTER 3 · PATHS ON CURVED SURFACES
The friction budget
A taut fibre presses into the surface with T·k_n and is pushed sideways with T·k_g. It doesn't slip while |k_g| ≤ μ k_n. Friction is plentiful where the fibre presses hard (near hoop, small radius) and absent on flats.
Predict · at 0:53 in the video
Can friction steer a fibre across a flat end plate?
No. On a flat plate, the fibre doesn't press into the surface at all. Its normal curvature is zero.
Further reading
This course is our own. These books go deeper.
- Composite Filament Winding, S. T. Peters (ed.), ASM International, 2011
- Filament Winding: a Unified Approach, S. Koussios, Delft University Press, 2004
About the numbers
Simulations in this lesson are our own. Where a number rests on an assumption, the video marks it with an asterisk and says where it comes from.

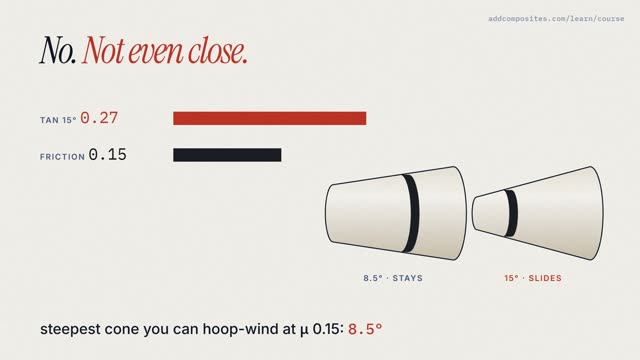

Up next · 3.5 · 2:21You can't hoop-wind a steep cone
