LESSON 5.5 · 4:06 · CHAPTER 5 · LAYUP STRATEGIES
Hybrid and dynamic strategies
No single strategy wins everywhere. Parallel offsets keep gaps and overlaps down but drift off angle; rosette paths hold the angle but open gaps. Hybrid methods offset until a threshold is broken, then re-seed a fresh reference.
Predict · at 1:25 in the video
Now tighten the tolerance to one degree. What does the ply turn into?
Almost every course fails its check, so almost every course is a new rosette. The hybrid collapses into a rosette ply. And rosette courses aren't parallel to each other.
In the book
Automated Fiber Placement: Status, Challenges, and Evolution, Ramy Harik & Alex Brasington.
- Chapter 5, section 3.4
- Chapter 5, section 3.4.1.A
- Chapter 5, section 3.4.1.B
About the numbers
Simulations in this lesson are our own. Where the numbers are invented to show a mechanism, the video says so on screen.

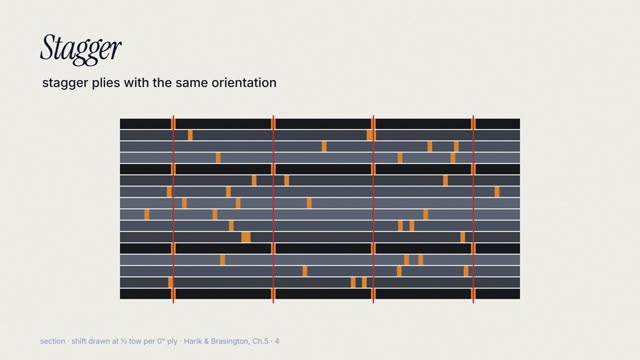

Up next · 5.6 · 3:19Through-thickness staggering
