Max stress and max strain

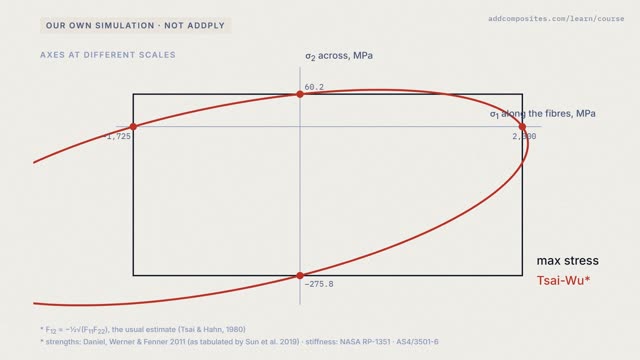

Max stress compares each ply stress (along, across, shear) with its strength and the first to reach 100% names the mode; max strain does the same with strains (strength ÷ modulus). They agree on the axes and almost agree off-axis (120 vs 123 MPa at 45°), but under combined stress they part: with 2,000 MPa along the fibres, max strain allows 99 MPa across, max stress 60, because of Poisson.
Predict · at 1:03 in the video
Do max stress and max strain predict the same failure?
On the axes, yes, by construction. Pulled at forty-five degrees, almost: 120 against 123 megapascals. But combine loads, and they part.
