50 / 100 mm
ATL50 / ATL100 TAPE WIDTH
07 — AUTOMATED TAPE LAYING
ATL

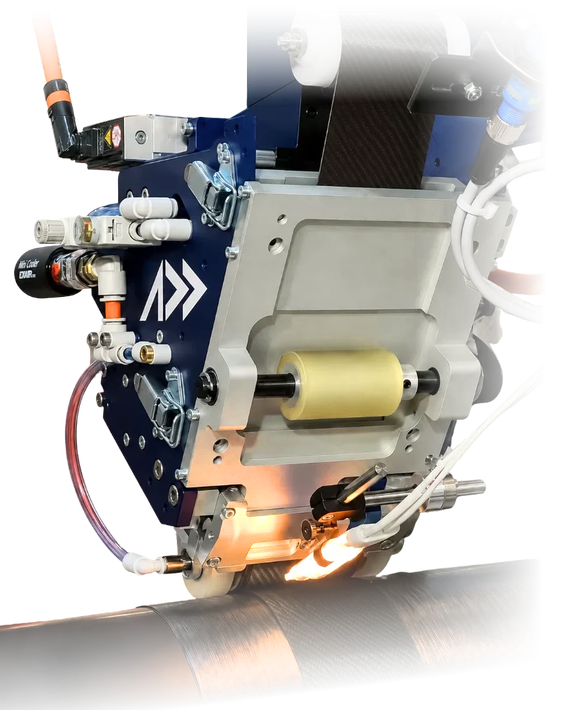

A wider end effector for efficient material deposition on large, gentler and less complex composite surfaces — configured for wide tape, high layup rate and repeatable industrial output.
Single tape
AUTOMATED TAPE LAYING
Thermoset slit tape · Thermoplastics
MATERIAL OPTIONS
AddController
CONTROL INCLUDED
LOWER COMPLEXITY · HIGHER RATES
Cover more surface with every pass
ATL is engineered for production programmes where wide tape and high layup rate matter more than steering through tight contours. The platform supports thermoset slit tape, with engineering thermoplastics, reinforcement options, heating and compaction configured to application requirements.
- Tool-less access — for easier cleaning and maintenance
- Natural, glass and carbon — reinforcement pathways
- Modular heating — configured to material and process requirements
MATERIAL COMPATIBILITY
Thermoset
SLIT TAPE
Thermoplastic
ENGINEERING POLYMERS
Natural & Glass
REINFORCEMENTS
Carbon Fiber
REINFORCEMENT
SYSTEM SPECIFICATIONS
What to check before you call
| Tape width | 50 mm / 2 in (ATL50) · 100 mm / 4 in (ATL100) |
| Material storage | Up to 450 m |
| Mass without material | 80 kg (ATL50) · 120 kg (ATL100) |
| Cleaning access | Tool-less |
| Layup rate | Up to 750 mm/s |
| Compaction | Up to 700 N |
| Cut/feed repeatability | ±0.5 mm at 300 mm/s |
| Materials | Thermoset slit tape, engineering thermoplastics, natural, glass and carbon reinforcements |
| Control | AddController integrated motion and process control |
Tape width, heating, compaction and cell integration are configured around the component geometry and target production volume.
WHAT HAPPENS ON THE CALL
01
Part geometry and surface curvature
02
Tape width, material and reinforcement
03
Target layup rate and annual volume
04
Robot, payload and cell constraints
05
Heating, compaction and quality requirements
Cover more surface with every pass
REQUEST A FEASIBILITY CALL →
ATL50 · ATL100 · WIDE-TAPE AUTOMATED TAPE LAYING
