Rhino 3D v8
BUILT ON
03 — SOFTWARE
AddPath
AddPath 2.0 plans and verifies every course on Rhino 3D v8 — one digital thread for printing, milling, placement, trimming and winding, with collision, singularity and time/material checks built in.
12
MAX AXES SUPPORTED
5 Processes
PRINT · MILL · PLACE · TRIM · WIND
Live
STATUS + CHECKS
THE PLATFORM

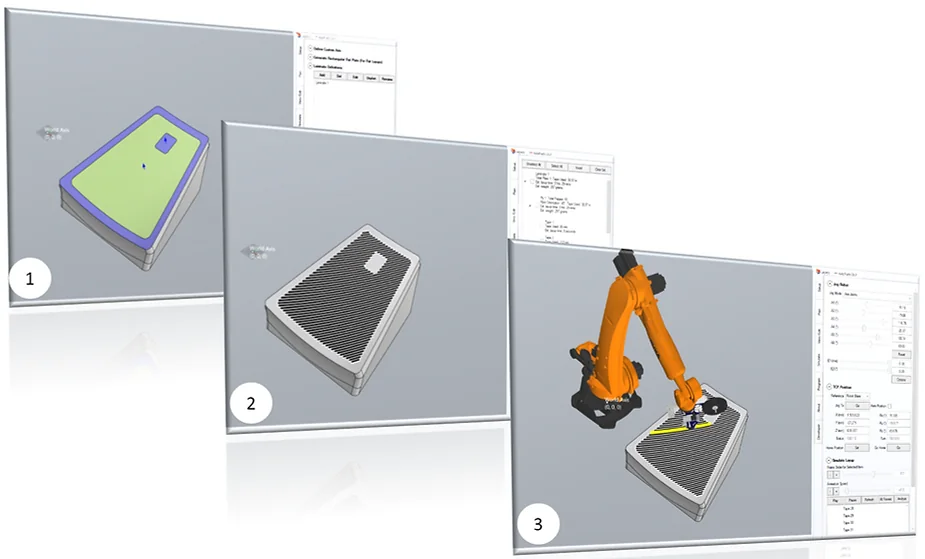

Every course, verified first
AddPath 2.0 runs on Rhino 3D v8 and supports up to 12 axes across robot and heater parameters — every course checked for collision and singularity, with time and material estimated before you commit a run.
THE DIGITAL THREAD
One thread, five processes
Printing, milling, placement, trimming and winding move through the same AddPath 2.0 program — the same collision, singularity and time/material checks, and live status as the run executes.
SYSTEM SPECIFICATIONS
What to check before you call
| Platform | Rhino 3D v8 |
| Coordinated motion | Up to 12 axes |
| Processes | Printing, milling, placement, trimming, winding |
| Pre-run checks | Collision, singularity, time and material |
| Execution | Live status, robot and heater parameters, custom post-processors |
The workflow and post-processor are configured around the robot, process equipment and cell architecture.
WHAT HAPPENS ON THE CALL
01
Your part geometry and laminate definition
02
Processes to program and connect
03
Robot, external axes and existing cell
04
Controller, heater and post-processor requirements
05
Workflow goal, users and implementation timing
Plan it before you lay it
REQUEST A FEASIBILITY CALL →
ADDPATH 2.0 · PRINTING, MILLING, PLACEMENT, TRIMMING AND WINDING IN ONE DIGITAL THREAD
