Advanced composites have transformed the landscape of materials used in civilian aircraft, introducing a new era of performance, efficiency, and safety. These materials are not just incremental improvements over their predecessors; they represent a leap forward in materials science. Here we introduce the definition of advanced composites and their significance in civilian aircraft, along with an overview of their high-performance attributes.
Advanced composites are engineered materials made from two or more constituents with distinct physical or chemical properties. One of these is typically a reinforcing fiber, such as carbon, aramid, or glass, known for its high strength-to-weight ratio. The other is a matrix material, like a polymer resin, which binds the fibers together, providing shape and protecting the fibers from environmental and operational damage.
In aerospace, these composites are meticulously designed to exploit the strengths of each constituent. The result is a material that outperforms traditional metal alloys in many respects, from strength and stiffness to corrosion resistance and fatigue life.
The adoption of advanced composites in civilian aircraft manufacturing has been a game-changer. The primary driver for their use is the relentless pursuit of efficiency. Composite materials offer significant weight savings over traditional materials, leading directly to fuel savings—a critical factor in the economic and environmental sustainability of the aviation industry.
Additionally, the versatility of composites allows for innovative aircraft designs. The materials can be molded into complex shapes that would be difficult or impossible to achieve with metal, enabling more aerodynamic structures that further improve fuel efficiency and performance.
At the heart of every advanced composite material are fibers that provide the fundamental properties required for aerospace applications. The choice of fiber is a strategic decision based on a blend of performance requirements and cost considerations. Let's explore the various fiber types and the science behind their selection.

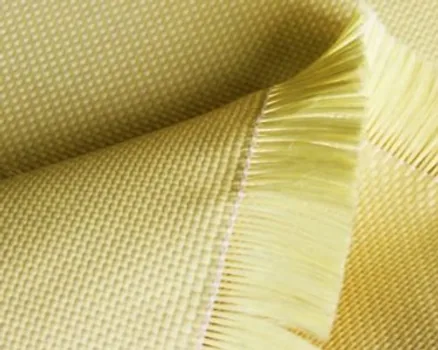

Aramid fibers, known for their golden-yellow color, are synthetic polymers derived from aromatic polyamides. They exhibit exceptional strength and resistance to impact, making them ideal for ballistic and aerospace applications. Notably, aramid fibers are not just strong; they're also lightweight and possess excellent fatigue resistance.
In the aerospace sector, aramid fibers are often used in honeycomb core structures, where their ability to absorb vibration and resistance to fatigue contribute to both the longevity and performance of aircraft components.
Boron fibers are produced by chemical vapor deposition on a substrate, resulting in a fiber with a large diameter relative to other advanced composite fibers. Their high stiffness and superior compressive strength make them suitable for applications where rigidity is paramount. However, the cost of boron fibers often restricts their use to highly specialized aerospace components where performance justifies the expense.
Boron fibers are commonly found in military aircraft, where they reinforce critical structures and improve the performance-to-weight ratio of the aircraft.
Carbon and graphite fibers are the workhorses of the aerospace composite world. Derived from organic precursors like polyacrylonitrile (PAN), these fibers undergo a thermal treatment process to achieve their desired high-strength and high-modulus characteristics.
The versatility of carbon fibers lies in their wide range of modulus, strength, and conductivity. Their ability to be processed into various forms, such as woven fabrics and unidirectional tapes, makes them adaptable to numerous aerospace applications—from the fuselage and wing skins to the empennage and control surfaces.

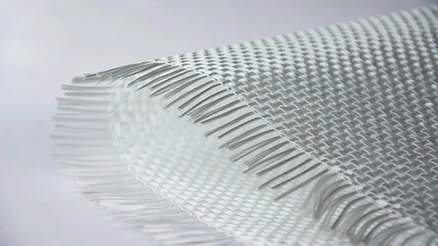

Fiberglass, made from a mixture of silica sand, limestone, and other minerals at high temperatures, is the most widely used fiber in composite materials. While it doesn't match the strength or stiffness of carbon or aramid fibers, it's significantly less expensive and still provides a favorable strength-to-weight ratio.
Fiberglass is particularly prevalent in less critical structures of civilian aircraft, where its cost-effectiveness is a major advantage. It's also widely used in interior components and secondary structures, providing a balance of performance and economy.
Advanced composites are continually evolving, with research pushing the boundaries of fiber performance. Future developments may include fibers with even greater strength and stiffness, enhanced thermal properties, and perhaps even self-healing capabilities. As the demand for performance and efficiency in the aerospace industry grows, so too will the science of fiber materials, leading to the next generation of aircraft design.
In the realm of advanced composites for aerospace applications, the form that reinforcing fibers take is as crucial as the fiber material itself. These forms cater to specific functional demands of aircraft structures and dictate the composite material's behavior under various load conditions. Here, we explore the most common fiber forms and how their configurations are employed to create materials that meet the rigorous demands of the aerospace industry.
When it comes to composite construction, the physical form of the fiber—whether it's strands, tows, or woven into fabrics—plays a pivotal role in the composite's ultimate strength, stiffness, and weight.

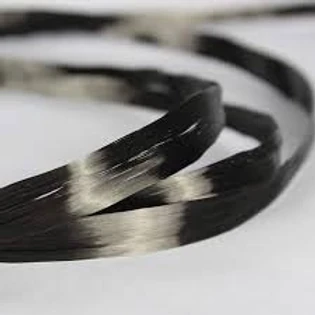

In their simplest forms, fibers are bundled into strands or tows. Strands are typically single, untwisted bundles of filaments, which can be used as-is or chopped into shorter lengths for various manufacturing processes. Tows are similar but are specified by the number of filaments they contain, often numbering in the thousands, and are used in applications requiring continuous reinforcement.
These forms are versatile and can be adapted to a wide range of manufacturing techniques, from hand lay-up to automated fiber placement, each method affecting the orientation and distribution of the fibers within the matrix and thus the mechanical properties of the final part.
Moving up in complexity, fibers can be woven into fabrics, interlacing warp and weft yarns in various patterns. This weaving process not only enhances the in-plane properties of the composite but also improves its out-of-plane toughness, a crucial factor in resisting delamination and other forms of structural failure.
Woven fabrics are particularly suited to complex shapes and contours found in aircraft designs. They offer better drape and can conform to the intricate geometries of airframe components. Moreover, the weave pattern can be optimized to prioritize strength in certain directions, a property known as anisotropy, which is essential for parts that experience directional loads.
Prepreg materials represent a significant evolution in composite technology. These are fibers that have been pre-impregnated with a matrix material, such as epoxy resin, and partially cured. Prepregs offer uniform resin distribution, consistent quality, and ease of handling, making them highly favored in aerospace manufacturing.
Unidirectional tape is one form of prepreg where fibers are aligned in a single direction, providing maximum strength along that axis. Woven fabric prepregs, on the other hand, have fibers running in orthogonal directions, offering balanced strength properties.
In aerospace composites, fiber orientation is meticulously designed to align with the load paths of the aircraft structure. This strategic placement of fibers is key to achieving optimal strength, stiffness, and weight objectives. The lay-up process, whether manual or automated, is critical in realizing the intended fiber orientation, with the goal of fabricating a component that has the right balance of properties for its specific function.
The orientation of the fibers within the matrix can significantly impact the tensile, compressive, and shear strength of the composite material. For instance, fibers laid up in a zero-degree orientation relative to the primary load direction will provide maximum tensile and compressive strength, while fibers placed at 45 degrees can help to manage shear loads.
In the advanced composites used for aerospace applications, prepreg materials stand as a pinnacle of precision engineering. Prepregs, or pre-impregnated materials, are fibers that have been pre-coated with a resin system. This pre-application ensures uniform distribution of the matrix, optimizing the material properties and manufacturing process. Let's take an in-depth look at prepreg materials and their critical role in aerospace composites.
Prepregs are the result of fibers—be they carbon, aramid, or glass—saturated in a controlled amount of epoxy or other resin systems. This saturation takes place in a factory setting, ensuring consistent quality. The resin within prepregs is partially cured to a 'B-stage', where it is tacky and can be easily laid into molds before final curing.
The most common form of prepreg comes in unidirectional tapes, where fibers are aligned in a single direction. This form is crucial for creating parts that need high strength in one specific direction. For instance, the spar of an airplane wing, which bears the brunt of the lift forces, benefits immensely from unidirectional prepregs that align with the wing's longitudinal axis.
Fabric prepregs, conversely, have fibers woven into a bidirectional pattern, lending the composite balanced strength properties in two directions. This makes fabric prepregs ideal for parts that encounter multi-axial stresses, such as fuselage panels or wing surfaces where forces are complex and multi-directional.
Prepreg materials offer several compelling advantages that make them highly sought after in aerospace design and manufacturing:
The use of prepregs transforms the manufacturing process. Layers of prepreg material are cut to shape and laid into a mold in a predetermined sequence and orientation. This lay-up process is either done manually or with the help of automated machines. Once laid up, the prepreg assembly is subjected to heat and pressure, typically in an autoclave, to cure the resin fully and solidify the composite material.
The cure cycle for prepregs is carefully controlled to optimize the cross-linking of the resin matrix without compromising the integrity of the fibers. This results in a composite material with excellent strength-to-weight ratios, crucial for aerospace applications where every ounce matters.
Designing with prepregs requires a deep understanding of the intended load paths and performance demands of the component. The fiber orientation in the prepreg must be designed to align with these load paths to ensure the part can handle the stress it will encounter in service.
For instance, if a part needs to withstand torsional forces, the fibers in the prepreg might be oriented at ±45 degrees to the axis of torsion. For bending loads, a 0/90 degree orientation could be more appropriate. The ability to tailor the fiber orientation is one of the key strengths of using prepregs in composite design.
The structural integrity of composite materials used in aerospace relies heavily on the weave of the fabrics that form the basis of these advanced materials. In this section, we will explore the intricacies of fabric weaves, their impact on composite performance, and their application in the aerospace industry.
In composite materials, fabric weaves are more than just a pattern; they are engineered structures that determine the directional strength, flexibility, and bonding characteristics of the material. The weave pattern affects how the fabric handles during manufacturing, how it conforms to complex shapes, and its ability to absorb impacts.

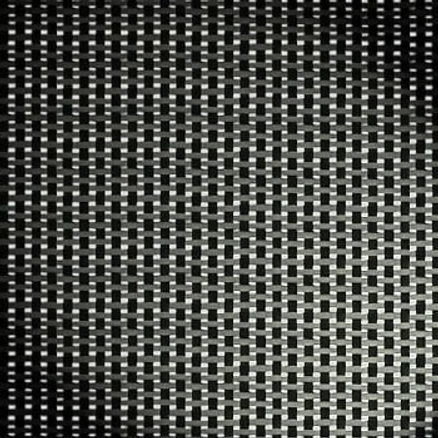

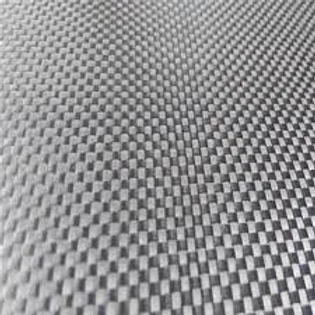

Plain Weave: The most fundamental and widely used pattern, where each warp fiber alternates over and under each weft fiber. It's characterized by its stability and good strength in both the warp and weft directions. However, it's less drapable, which can make it more challenging to conform to curved surfaces.

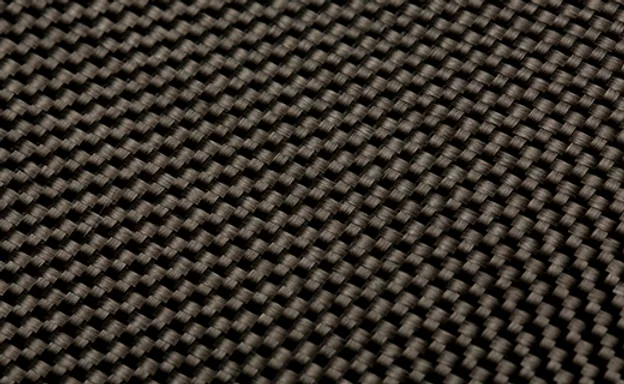

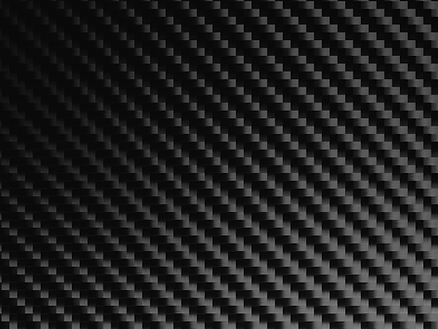

Twill Weave: In a twill weave, each warp or weft fiber floats across two or more weft or warp fibers with a progression of interlaces by one to the left or right, forming a distinct diagonal pattern. This weave offers better drape than a plain weave and is easier to work with during lay-up, especially on complex shapes.
Satin Weave: Satin weaves are more complex, where warp fibers float over four or more weft fibers. This pattern results in a fabric with a smooth surface, excellent drape, and conformability. Satin weaves are typically used for composite parts that require a smooth finish or those that have compound curves.
Unidirectional Weave: Here, most of the fibers run in one direction with minimal cross-weave fibers. This arrangement provides very high strength in the direction of the fibers and is used in applications where maximum strength is required in one predominant direction.
In the realm of advanced composites, particularly in aerospace applications, the matrix material plays a crucial role, often described as the 'glue' that binds the fibers together. This section delves into the function of the matrix in composites, provides a comparative analysis of different resin matrices like polyester, epoxy, phenolic, and thermoplastics, and outlines the advantages and disadvantages of thermoset and thermoplastic matrices.
The matrix in a composite material serves several vital functions:

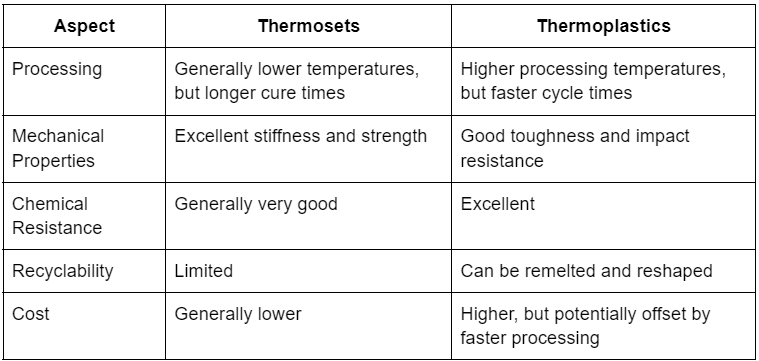

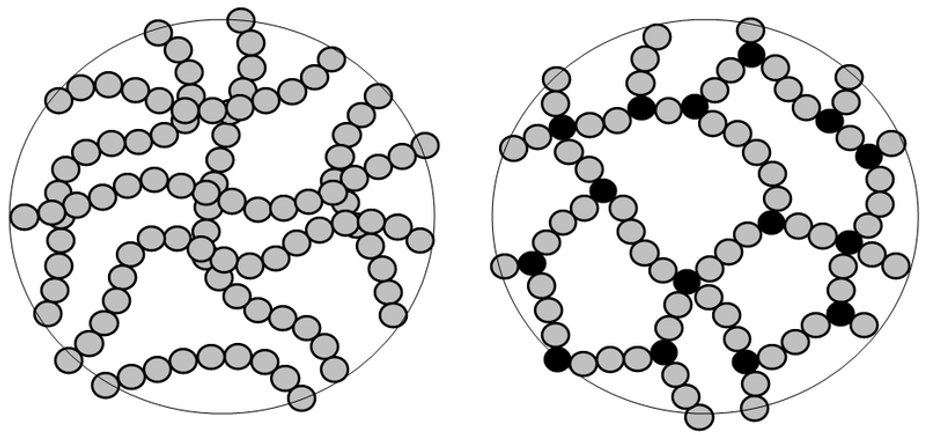

The selection of the matrix material in a composite is a critical decision that influences the performance, processing, and application of the material. While thermosets like epoxy and phenolics have been the traditional choice in aerospace for their high performance, thermoplastics are gaining ground due to their recyclability and ease of processing. The ongoing development in matrix materials aims to enhance properties like toughness, thermal stability, and environmental resistance, further expanding the potential of composites in aerospace and beyond.
The choice of weave pattern is strategic and varies depending on the component's design requirements. For instance, an aerospace component that requires equal strength in both the horizontal and vertical directions might use a plain weave. Conversely, parts that need to be formed into complex shapes without compromising the integrity of the fibers might benefit from a satin weave.
Strength and Stiffness: The way fibers are interlaced affects load distribution and the composite's ability to handle stress. For example, the straighter the fiber runs within the weave, the higher the tensile strength along that direction.
Impact Resistance: The interlocking nature of certain weaves, such as twill or satin, can distribute impact forces more effectively, enhancing the composite's ability to withstand sudden loads.
Thermal and Acoustic Insulation: Fabric weaves can also be designed to offer insulative properties against heat and sound, contributing to the thermal management and comfort of the aircraft cabin.
With advancements in textile technology, more sophisticated weave patterns are being developed to meet the specific demands of the aerospace industry. 3D weaving technology allows for the creation of near-net-shape preforms with fibers interlaced in three dimensions, providing superior out-of-plane strength and reducing the need for additional reinforcements.
The pursuit of aerospace innovation continuously drives the evolution of composite materials. Advanced forms such as three-dimensional weaves and the potential of emergent materials promise to revolutionize the industry. This section explores the cutting-edge developments and the future trajectory of materials that may define the next era of aerospace engineering.

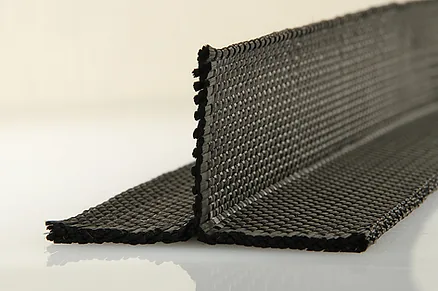

Three-dimensional (3D) weaving technology stands at the forefront of composite material advancement. Unlike traditional two-dimensional fabrics, 3D weaves interlace fibers in multiple directions, creating preforms with inherent strength in the x, y, and z axes. This multi-axial reinforcement translates to significant improvements in impact resistance, delamination resistance, and damage tolerance.
The creation of 3D woven preforms involves complex weaving processes that can yield near-net-shape components, reducing waste and the need for additional machining or assembly. These preforms are particularly suited for critical load-bearing aerospace structures, such as fuselage sections, where multi-directional strength is paramount.

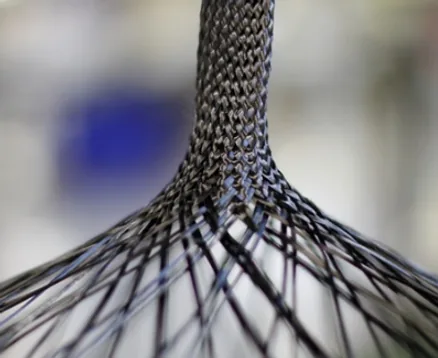

Advanced braiding and knitting techniques complement 3D weaving by offering additional geometric flexibility and the capability to integrate functional elements within the composite structure. For instance, braided composites can be engineered to include built-in channels for cooling systems or conduits for electrical wiring.
While carbon, glass, and aramid fibers have been the mainstay of composite materials, research is pushing boundaries to develop fibers with even greater capabilities.
Carbon nanotubes and graphene represent the frontier of high-strength, high-modulus materials. With their exceptional mechanical properties and electrical conductivity, they hold the potential for creating composites that are not only structurally superior but also functionally diverse.
Self-healing composites are another area of intense research. These materials are designed to autonomously repair microcracks that could otherwise lead to catastrophic failures. Incorporating microencapsulated healing agents or vascular networks within the composite matrix enables the material to recover its integrity upon damage.

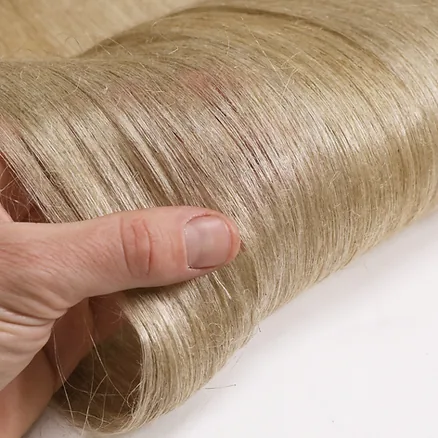

The aerospace industry is also focusing on sustainability. Bio-based composites derived from natural fibers and resins are being developed to reduce the environmental footprint of aircraft manufacturing and operation. These materials aim to match the performance of traditional composites while being recyclable or biodegradable at the end of their service life.
Smart materials and structures that can adapt their properties based on external stimuli are no longer science fiction. Piezoelectric composites, shape memory alloys, and electrostrictive materials are being integrated into aerospace components, enabling active vibration control, morphing wing structures, and improved efficiency in aerodynamic profiles.
The design of composite materials for aerospace applications involves a complex interplay of factors tailored to meet the rigorous demands of flight. From the thickness and weight of the composites to the structural considerations and finish, every detail counts. Let’s delve into the critical design considerations that engineers must navigate when developing composite materials for aerospace use.
In aerospace design, the thickness of the composite material is a critical factor that directly impacts the weight and performance of the aircraft. Optimizing the thickness not only pertains to strength and stiffness requirements but also to the overall weight efficiency of the aircraft. Lighter composites contribute to fuel efficiency and payload capacity, which are paramount in aircraft performance.
The weight of composite materials is largely determined by the type and volume of fibers used, the density of the matrix, and the compactness of the weave or lay-up. Advanced composites aim to maximize strength and minimize weight, balancing these attributes through meticulous design and material selection.
The construction of composite materials refers to the arrangement and density of the fibers within the matrix. This includes the number of layers, the orientation of the fibers in each layer, and the weave or braiding pattern used.
Yarn size is another essential consideration, as it determines the weight and thickness of the fabric. In aerospace applications, finer yarns may be used for detailed work or surface layers, while heavier yarns may be selected for their structural properties.
The finish of composite materials is not merely aesthetic; it plays a role in performance, particularly in the aerospace industry. Surface treatments and finishes can provide additional protection against environmental factors, such as UV radiation and moisture, and can also enhance the bonding between the composite and additional coatings or structures.
The finish must be compatible with other materials used in the aircraft. For example, the composite might need to adhere to aluminum or titanium components, requiring a specific surface treatment to ensure a strong bond.
Composite materials in aerospace are exposed to a wide range of environmental conditions, from temperature extremes to varying humidity levels and exposure to chemicals and UV light. Design considerations must account for these conditions to ensure long-term durability and performance.
Engineers must consider the thermal expansion and moisture absorption rates of both the fibers and the matrix. A mismatch in these properties can lead to internal stresses and potential failure of the composite.
The selection of materials and design of composites must also take into account the manufacturing processes. Certain designs or materials may require specialized equipment or may affect the speed and cost of production.
Composites must be designed with a consideration for how easily they can be fabricated into the final component shape. Complex shapes or sizes may necessitate additional steps or technologies in the manufacturing process.
Designing composite materials for aerospace applications is an intricate process that requires a deep understanding of material properties, environmental conditions, and manufacturing capabilities. Engineers must carefully consider each factor to develop composites that meet the high standards of the aerospace industry. As materials technology advances, these considerations will evolve, continuously pushing the boundaries of what is possible in aircraft design and performance.
As we conclude our exploration of advanced composites in the aerospace industry, it's clear that the material selection process is not just a matter of technical necessity but a strategic decision that significantly impacts the performance, efficiency, and sustainability of civilian aircraft. Looking forward, the role of composites is poised to expand not only in aviation but in various sectors where their unique properties can be leveraged.
The aerospace industry, characterized by its stringent safety standards and relentless pursuit of efficiency, demands materials that meet a complex array of requirements. Advanced composites have risen to this challenge, offering a combination of strength, lightness, and durability that traditional materials can't match.
Selecting the right composite material involves a deep understanding of the specific application, including load conditions, environmental exposure, and performance expectations. This decision-making process is a sophisticated blend of engineering acumen, scientific understanding, and practical considerations like cost and manufacturability.
The future of composites in civilian aircraft looks bright and broad. Innovations in fiber materials, such as the development of carbon nanotubes and graphene, are set to push the boundaries of what's possible, offering even higher strength-to-weight ratios and new functionalities.
Moreover, the advent of smart composites, capable of changing their properties in response to external stimuli, opens up possibilities for more adaptive and resilient aircraft designs. These materials could lead to aircraft that self-monitor and respond dynamically to varying flight conditions, enhancing performance and safety.
Sustainability is another frontier where advanced composites are making significant inroads. The development of bio-based composites and efforts to make composites more recyclable align with the growing emphasis on environmental stewardship in the aerospace industry. These advancements are not just beneficial for the planet; they also resonate with the shifting priorities of consumers and regulators.
The potential of advanced composites extends beyond the aerospace industry. Their high-performance characteristics make them ideal candidates for a variety of applications, including automotive, renewable energy (especially in wind turbine blades), and infrastructure. In each of these fields, the advantages of composites can lead to more efficient, durable, and sustainable solutions.
