Superior Strength in CFRTP Parts with Precise Printing and Speed Control



Challenges of 3D Printing Speeds for Enhanced Mechanical Properties

The quest for optimizing the mechanical properties of Continuous Fiber Reinforced Thermoplastic (CFRTP) composites is a topic of paramount importance. This exploration is fueled by the growing demand for CFRTP components, celebrated for their exceptional mechanical, thermal, and chemical performance across a variety of industries, including aerospace, automotive, and robotics.

The focus of recent investigations has been on the role of printing speed in the Fused Deposition Modeling (FDM) process and its impact on the tensile strength and elasticity modulus of CFRTP composites. This interest stems from the need to achieve desired mechanical strengths in components that are critical for structural and load-bearing applications.

By experimenting with CFRTP using nylon filament reinforced with continuous carbon fiber, researchers have shed light on how different printing speeds (1.5mm/s, 2.5mm/s, 5 mm/s) influence the final mechanical properties of the printed parts. These speeds were selected to understand the range of outcomes possible within typical FDM printing operations.


Achieving Desired Mechanical Properties in 3D Printed CFRTP Parts

Achieving optimal mechanical properties in CFRTP composites through 3D printing unveils a fascinating challenge within the field of additive manufacturing. This challenge roots deeply in the intricate balance between the technological parameters of 3D printing and the inherent characteristics of the materials involved. A particular focus has been placed on the influence of printing speed, a critical variable, on the tensile strength and elasticity modulus of CFRTP composites.

The exploration centers around CFRTP composites, specifically those utilizing a nylon filament reinforced with continuous carbon fiber, prepared under various printing speeds: 1.5mm/s, 2.5mm/s, and 5 mm/s. This examination aims to dissect how these alterations in speed can significantly affect the material outcomes, particularly focusing on the crucial aspects of tensile strength and elasticity for structural applications.

The results derived from extensive testing reveal a direct relationship between the speed of printing and the mechanical properties of the CFRTP composites. Notably, a decrease in printing speed to 1.5 mm/s substantially elevates both the tensile strength and the elasticity modulus of the printed parts. This improvement can be attributed to the enhanced thermal bonding that occurs at slower speeds, promoting a stronger adhesion between successive layers. In contrast, increased speeds lead to a rapid cooling of previously deposited layers, thereby weakening the bond and diminishing the mechanical properties.


Influence of Printing Speed on CFRTP Composites Through Experimental Insights

The synergy between 3D printing technology and composite material science has paved the way for remarkable advancements, especially in the development of CFRTP composites. A key area of investigation has been how variations in printing speed can significantly influence the tensile strength and elasticity modulus of CFRTP composites, which are crucial for their application across various engineering and design domains.

This exploration into the effects of printing speed on the mechanical properties of CFRTP parts employs a Fused Deposition Modeling (FDM) approach. The study meticulously examines CFRTP test specimens created using nylon filament reinforced with continuous carbon fiber at three distinct printing speeds: 1.5mm/s, 2.5mm/s, and 5 mm/s. The selection of these speeds aims to encompass a range of common settings in FDM printers, ensuring that the outcomes are both relevant and applicable to a broad spectrum of manufacturing scenarios.

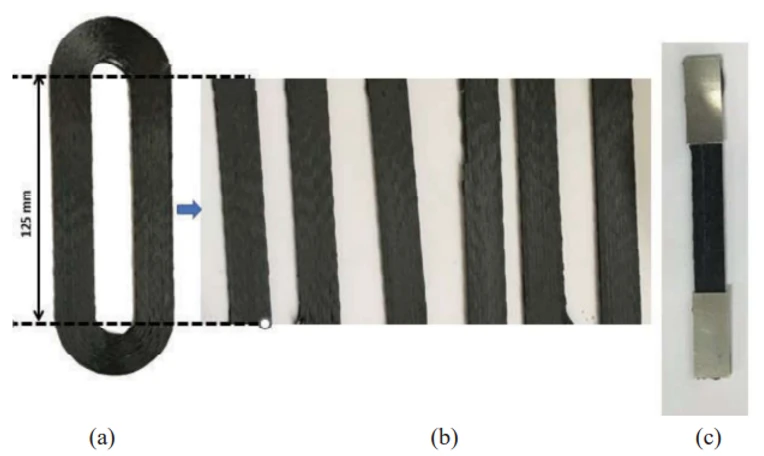

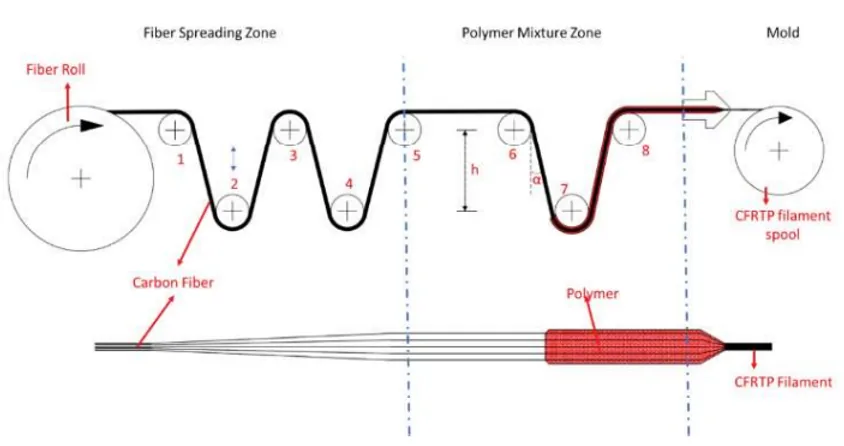

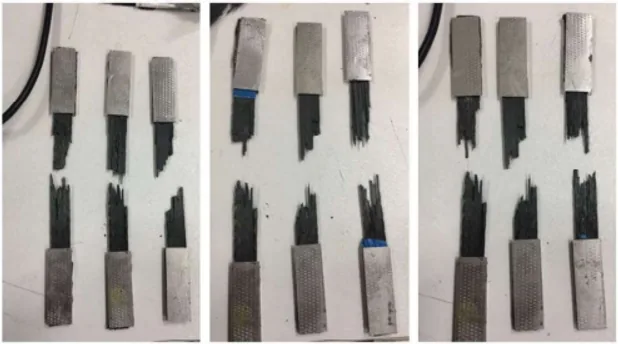

The methodology incorporates a detailed process of CFRTP filament production, closely resembling the pultrusion method, to ensure optimal reinforcement and matrix integration. Following filament creation, the specimens undergo 3D printing under the specified conditions, adhering to a consistent set of parameters to maintain uniformity across tests. Tensile testing forms the core of the experimental investigation, providing quantitative insights into the material's response to different printing speeds.

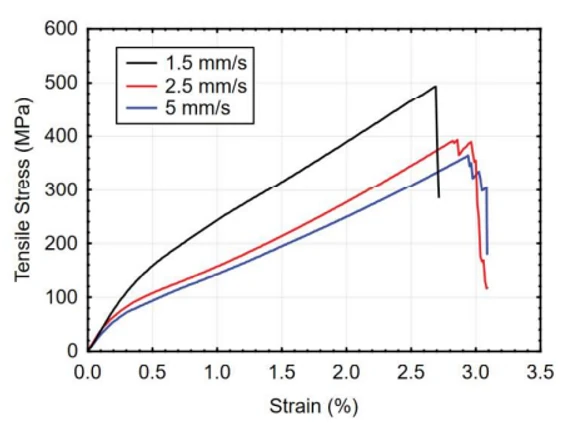

The findings from the tensile tests reveal a direct correlation between printing speed and the mechanical properties of CFRTP composites. Notably, reducing the printing speed to 1.5 mm/s significantly enhances both the tensile strength and elasticity modulus of the printed parts. This improvement is attributed to better thermal bonding achieved at reduced speeds, facilitating stronger interlayer adhesion. Conversely, higher printing speeds compromise these mechanical properties due to insufficient heating of the preceding layer, leading to weaker bonds.

This experimental journey into the realm of printing speed effects on CFRTP composites offers vital insights into optimizing the FDM process for improved mechanical properties. The study highlights the importance of carefully selecting printing parameters to achieve the desired balance between manufacturing efficiency and material performance, laying the groundwork for future research into optimizing other aspects of the 3D printing process.


Unlocking High-Strength Composite Parts: Optimizing 3D Printing Speeds for Superior CFRTP Performance

The pursuit of advancing additive manufacturing techniques, especially for CFRTP composites, has led to the revelation that printing speeds play a pivotal role in determining the mechanical properties of the final parts. This insight is particularly significant in the context of producing high-strength CFRTP components, where the interplay between speed and material integrity becomes crucial.

Research in this area has illuminated that slower printing speeds notably enhance the tensile strength and elasticity modulus of CFRTP composites. Such findings are instrumental in pushing the boundaries of what can be achieved with 3D printing technologies, allowing for the production of components that are not only robust but also meet stringent mechanical requirements.

The implications of these advancements are wide-ranging. Industries such as aerospace, automotive, and robotics, where the strength-to-weight ratio is a critical factor, stand to benefit immensely. By fine-tuning the printing parameters, particularly the speed, it becomes possible to tailor the mechanical properties of CFRTP parts to meet specific needs, thus opening up new avenues for design and application.

Moreover, this exploration into the impact of printing speeds on CFRTP's mechanical properties serves as a foundation for further research. It invites an in-depth look into how other printing parameters might interact and affect the performance of composite materials. Such continuous improvement and optimization efforts are essential for keeping pace with the demands of modern manufacturing and engineering challenges.

the ability to control and optimize printing speeds has emerged as a key factor in enhancing the performance of CFRTP composites. This breakthrough not only signifies a major step forward in additive manufacturing but also highlights the potential for future innovations that could redefine the standards for composite material production.



I'd like to extend my heartfelt thanks to Bahri Barış Vatandaş, Altug Usun, and Recep Gümrük from Karadeniz Technical University's Mechanical Engineering Department for their invaluable contributions to the study "Effect of Printing Speed on Mechanical Properties of Continuous Fiber Reinforced Thermoplastic Composites." Their expertise and diligent research have provided significant insights that form the backbone of this blog post, offering a deeper understanding of optimizing 3D printing techniques for enhanced material performance.
