Hydrogen storage tanks: testing, certification, codes & standards

Contents

Overview

High-pressure tanks (250 bar) have been used safely in compressed natural gas vehicles for many years. Improved versions of these tanks made of high-strength composite materials are now used to store hydrogen at higher pressures (350 and 700 bar) to achieve a greater range in hydrogen-fueled mobility. High-pressure hydrogen tanks are designed not to rupture and are held to rigorous performance requirements. This article summarizes major regulations, codes, and standards in different aspects of hydrogen tank storage. The article further dives into the testing and certification process of hydrogen tanks.

Regulations, Codes, and Standards (RCS)

There has been extensive work evaluating regulations, codes, and standards (RCS) for the emerging fuel cell market, such as the infrastructure required to support fuel cell electric vehicles. However, there has not been a similar RCS evaluation and development process for these larger systems. This section highlights the key ideas behind RCS.

Regulations

  • Legally binding, developed through a national administrative process or international agreement

  • Typically incorporate by reference safety codes and standards

  • Developed in advance of commercialization to protect public safety

Codes

  • Specify requirements, components, and procedures for use

  • Developed through voluntary code publishing groups

  • Usually established/adopted by jurisdictions

  • Legally binding; i.e. building codes Intern codes set by agreement

Standards

  • Technical guidelines for design, manufacture, and testing

  • The set minimum performance or component requirements

  • Technical experts from industry and governments

  • International standards are typically voluntary, consensus-based

Quick RCS Overview

The below images indicate the major RCS used in different use case scenarios. Marine and railway have yet to finalize any major RCS that can be used, but it is anticipated that they are more likely to also follow the EC79/EU406.

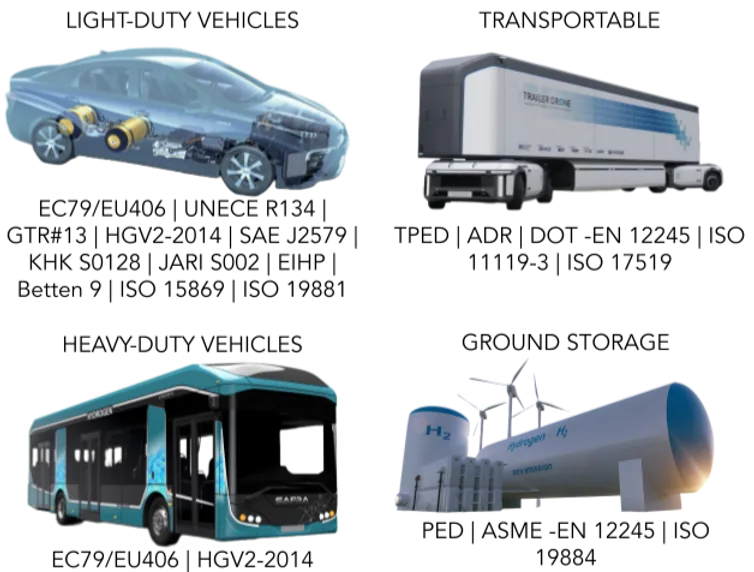

Hydrogen Storage Tank: RCS Overview
Hydrogen Storage Tank: RCS Overview

Testing and Certification

Over the last decade, the international hydrogen community has worked hard to develop codes and standards for onboard gaseous hydrogen storage composite tanks. Currently, there are multiple available regulations and codes applicable to composite hydrogen tanks as mentioned in the previous section. The following is a list of the tests required for the qualification of hydrogen tanks, with the most significant in tests of safety highlighted in boldface:

  • Composite material tests

  • liner material tests

  • liner burst test at ambient temperature

  • hydraulic(proof) test of finished cylinders at ambient temperature

  • cylinder burst test

  • resistance to pressure cycles at test pressure and ambient temperature immersion in salt water

  • exposure to an elevated temperature at test pressure;

  • drop test

  • flawed cylinder test

  • extreme temperature cycle test

  • fire resistance test

  • high-velocity impact (bullet) test

  • permeability test of cylinders with non-metallic or without liners

  • test of compatibility of thermoplastic liners with oxidizing gases

  • torque test

  • neck strength

  • cylinder stability

  • neck ring

Hydrostatic Burst Test

A hydrostatic burst test is conducted to determine the burst pressure of the tank. The determination of the burst pressure (BP) is critical for the composite tank’s safety and reliability. It is a primary and most important qualification test for a hydrogen tank. Minimum values of the burst pressure ratio for different types of fibers are listed in the table below.

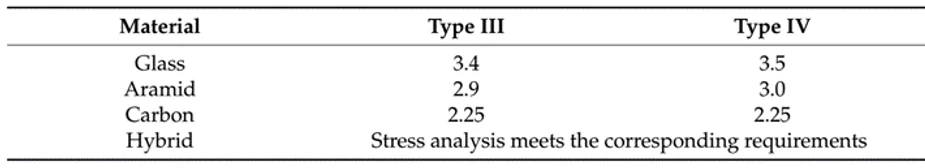

Minimum burst pressure ratio according to EC Regulation 406
Minimum burst pressure ratio according to EC Regulation 406

Flame Exposure Test

The flame exposure test is performed to evaluate the ability of the hydrogen tank to withstand exposure to fire. The temperature profile for the fire exposure test according to UN GTR 13 is shown in the figure below, and the test procedure is as follows:

  • The tank is pressurized up to the working pressure(70 MPa);

  • Container assembly is positioned 100 mm above the ground;

  • The tank is exposed to the fire according to the fire-exposed cycle;

  • In total, 1-to-10 min fire is applied at localized region (Temp 900 C);

  • In total, 10-to-12 min engulfing region exposed to fire (Temp 1100 C);

  • The tank should not burst and should vent by means of a pressure-relief device.

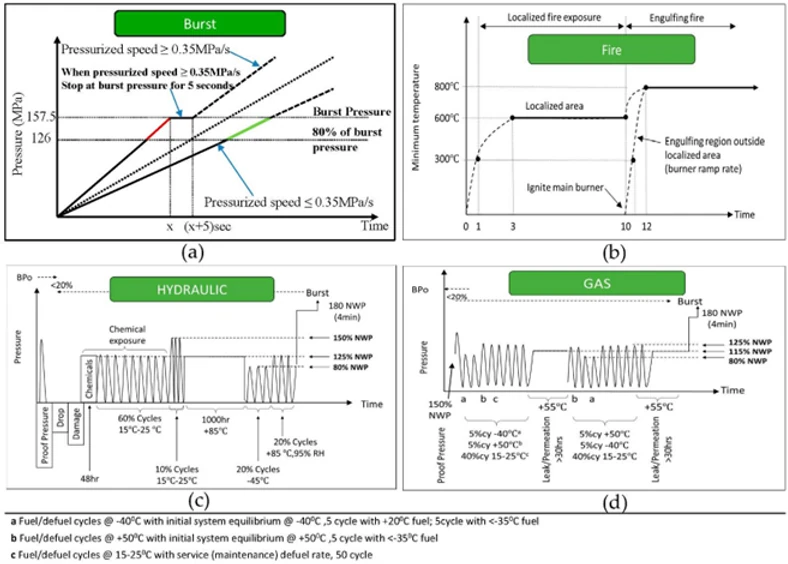

Certification testing overview—UN GTR 13: (a) hydrostatic burst test; (b) flame exposure test; (c) durability test (hydraulic); (d) durability test (gas).
Certification testing overview—UN GTR 13: (a) hydrostatic burst test; (b) flame exposure test; (c) durability test (hydraulic); (d) durability test (gas).

Performance Durability (Hydraulic/Gas Sequential Test)

The cyclic test or the performance durability test of hydrogen storage containers is performed according to the figure above c,d. Three containers must be hydraulically pressurized for 22,000 cycles or until a leak occurs at (20+/-5) C to 125 percent NWP (+2/ -0 MPa) without breakage. Considering a service life of 15 years, leakage must be prevented within 11,000 cycles. Only one container is evaluated if the pressure cycle life measurements are greater than 11,000 cycles or if they are all within 25% of one another. If not, three containers should be examined. Further details can be found in R134CE.


Safety amid failure

In the unlikely case that an advanced composite tank leaks, it can be removed from service without incident. It is highly unlikely that these tanks will fail in a way that will directly endanger the occupants of a hydrogen-fueled vehicle. These tanks have remained intact in collisions and in vehicle fires, and, when tested after such events, have passed various pressure tests under flame exposure. In case of vehicle fires or events in which a fire from another vehicle may engulf the tank, the tank's pressure relief device is activated when the temperature of the tank exceeds a set point (typically 102°C). When the pressure relief device is activated, the hydrogen gas in the tank is released in a safe manner.

Future Work

Additional standards are being developed and validated (SAE J2579, ISO 15869) to further improve and validate safety standards for high-pressure hydrogen tanks. Vehicle manufacturers (domestic and foreign) are working closely together with tank manufacturers and others to develop robust test procedures to ensure the safety of the tanks and the entire vehicle.
