How Screw Speed Influences Composite Durability in Large Format Additive Manufacturing



Optimizing Fiber Length in Large-Format Additive Manufacturing

Optimizing fiber length in large-format additive manufacturing (LFAM) presents technical challenges that are pivotal for achieving superior mechanical properties in the final products. The integrity of fibers throughout the manufacturing process significantly influences the structural strength of composite materials. When fibers are shortened or damaged due to mechanical stresses, particularly during the extrusion process, the resultant materials' durability and performance can be severely compromised.

The screw speed of the extruder plays a critical role. High screw speeds often result in shorter fibers due to increased shear forces, thus weakening the material. Conversely, maintaining optimal screw speeds preserves fiber length, enhancing the composite's mechanical strength.

The implications of fiber length on material properties are profound. Longer fibers distribute stress more effectively across the composite, improving load-bearing capacity and reducing the risk of material failure under operational stresses.

To tackle these challenges, careful calibration of processing parameters is essential. It involves not only adjusting the speed but also understanding the material-specific responses to these adjustments. For instance, different materials like carbon fiber reinforced ABS (CF-ABS) and glass fiber reinforced TPU (GF-TPU) react differently under identical extrusion conditions. Such insights are crucial for customizing the manufacturing process to suit specific material characteristics, ensuring both efficiency and quality in production.


The Complexities of Maintaining Fiber Integrity During the Printing Process

Maintaining the integrity of reinforcing fibers during the large-format additive manufacturing (LFAM) process is a complex challenge that significantly impacts the mechanical performance of the final products. The length of fibers in a composite material plays a crucial role in determining its strength and durability. During the printing process, these fibers are subjected to mechanical shear forces that can cause them to break and shorten, undermining the composite's overall structural integrity.

One of the primary factors influencing fiber breakage is the screw speed of the printer's extruder. Higher screw speeds tend to increase shear forces, leading to more significant fiber degradation. This relationship is pivotal because shorter fibers are less effective at reinforcing the composite, which in turn, leads to materials that are weaker and less durable.

The pain of maintaining fiber integrity is not just a technical hurdle but also impacts production efficiency and material cost. For manufacturers using LFAM, it's crucial to balance the extruders' screw speed and other processing parameters to optimize fiber length. This balance ensures that the speed of manufacturing does not compromise the quality and durability of the composite material.


Methods for Analyzing and Adjusting Printing Parameters

The field of large-format additive manufacturing (LFAM) continues to evolve with the development of innovative methods to analyze and adjust printing parameters, significantly enhancing the mechanical performance of fiber-reinforced polymer composites. A crucial aspect of these advancements is the ability to meticulously measure and modify the extrusion parameters, such as screw speed, to control the integrity of fibers throughout the manufacturing process.

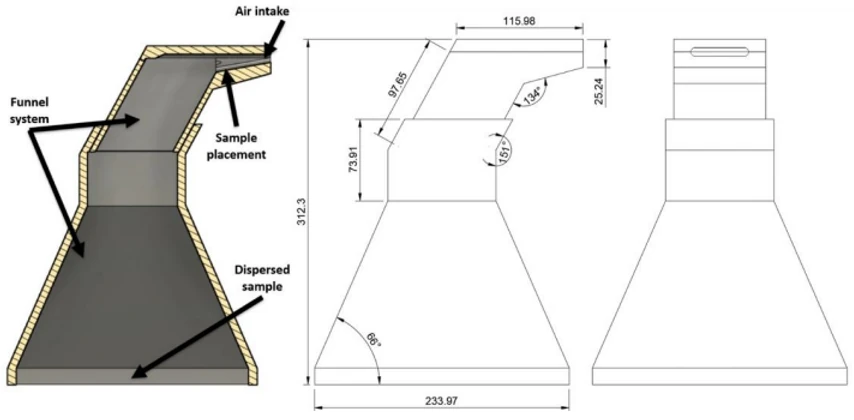

Analyzing fiber length distribution with precision is key to understanding how these fibers behave under different extrusion conditions. This understanding allows manufacturers to see the direct impact of process parameters on fiber degradation. By maintaining longer fibers, the composites produced are mechanically stronger and more durable. Such insights are crucial for optimizing the settings of the extrusion process to reduce the mechanical stresses that cause fiber breakage.

Adjustments to the screw speed of the extruder are particularly impactful. This parameter is instrumental in managing the shear forces applied to the fibers during extrusion. Lower screw speeds typically preserve fiber length better, thereby enhancing the structural integrity of the final product. These findings emphasize the need for a careful selection of processing parameters, tailored to the specific material being used, such as carbon fiber reinforced ABS (CF-ABS) or glass fiber reinforced TPU (GF-TPU).

This approach not only minimizes the trial-and-error previously common in setting up LFAM operations but also establishes a more systematic guideline for achieving optimal material properties. Through these innovative methods, the LFAM industry is equipped to produce materials that are not only faster and more cost-effective but also of significantly higher quality. This shift towards more scientific parameter control in manufacturing promises to expand the applications and capabilities of additive manufacturing in various industries.


Improvements in Mechanical Performance Through Controlled Fiber Length

Significant improvements in mechanical performance have been achieved through precise control over fiber length within fiber-reinforced polymer composites. This advancement is pivotal because the length of fibers significantly influences the strength and durability of the final products. Longer fibers enhance the mechanical properties of composites by better distributing stresses and reducing the likelihood of failure under load.

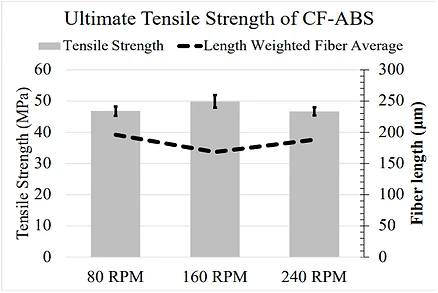

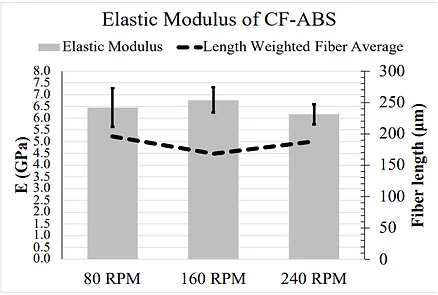

Through adjustment of processing parameters, particularly the screw speed of the extruder, manufacturers can effectively control the extent of fiber degradation during the extrusion process. Lower screw speeds generally result in longer fibers by mitigating the mechanical shear forces that typically break down fibers. This optimization plays a crucial role in preserving the structural integrity of fibers, thereby enhancing the mechanical strength of the resulting composite material.

The approach involves understanding the relationship between screw speed and fiber integrity but also recognizing how different materials respond to these adjustments. For instance, materials like carbon fiber reinforced ABS (CF-ABS) and glass fiber reinforced TPU (GF-TPU) each have unique characteristics that require specific settings to optimize their performance. By tailoring the manufacturing process to the specific properties of these materials, it is possible to significantly enhance the quality of the output.

These improvements are not just theoretical; they have practical implications for a wide range of applications in various industries, from automotive to aerospace, where the reliability and strength of materials are paramount. Thus, controlled fiber length emerges as a key factor in advancing the capabilities of LFAM, making it a critical area of focus for ongoing research and development in additive manufacturing technologies. This strategic approach ensures that the production of composite materials is both efficient and leads to superior, reliable products.



We extend our deepest appreciation to Andrew Phillip Rhodes and his team for their dedicated efforts in the research study titled "Correlating Large-Format Additive Manufacturing Processing Parameters to Fiber Length and the Mechanical Performance of Reinforced Polymer Composites." Their work, conducted at the University of Tennessee, Knoxville, has significantly enhanced our understanding of the critical factors influencing fiber integrity within large-format additive manufacturing.

Their thorough exploration into how processing parameters such as screw speed impact fiber length has provided invaluable insights that are crucial for both academic research and practical applications in the industry. This research serves as the foundation for the discussions presented in this blog, enriching our content with scientifically robust findings and innovative methodologies.

We are grateful for their commitment to advancing the field of materials science and for sharing their expertise, which continues to inspire improvements in manufacturing technologies across various sectors.
