TLDR

A Brief about Automotive Industry with Advanced Composite Materials

The integration of advanced composite materials has revolutionized the automotive industry by enhancing vehicle performance through innovative structural designs and superior mechanical properties. This introduction outlines the significance of composite materials, particularly honeycomb structures, in automotive applications, detailing their impact on performance, safety, and sustainability.

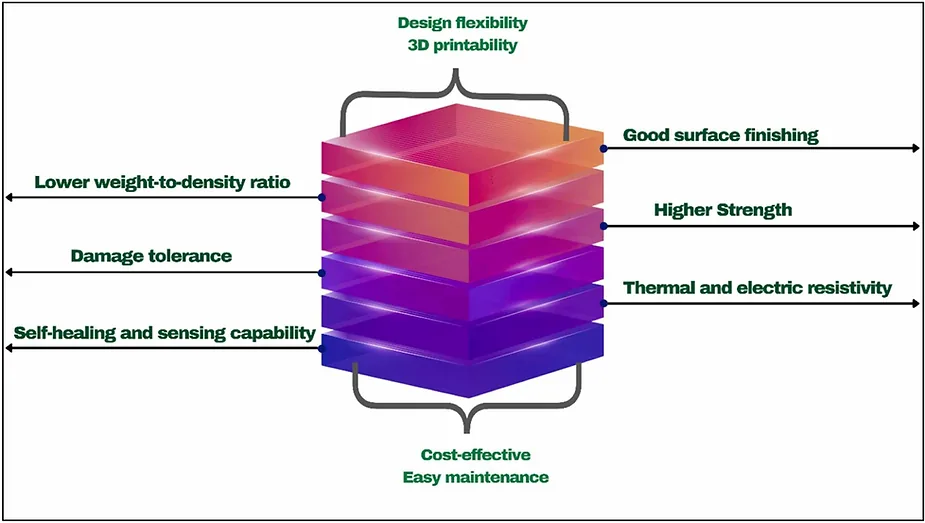

Advanced Composites in the Automotive Industry

  • Lightweight and High Strength: Composite materials are favored in the automotive sector for their exceptional strength-to-weight ratio. Lighter vehicles result in better fuel efficiency and reduced emissions, aligning with global sustainability goals.
  • Enhanced Safety Features: The energy absorption properties of composites, particularly in honeycomb configurations, enhance vehicle safety standards by improving impact resistance.

Honeycomb Structures: Core of Innovation

  • Structural Integrity from Geometry: Unlike traditional materials, the strength and stiffness of honeycomb structures are derived from their unique geometric configurations rather than the material properties alone. This results in structures with high porosity and low density, which contribute to vehicle lightweighting without compromising on strength.
  • Mechanical Properties: Honeycomb materials exhibit superior:
  • Specific Stiffness and Strength: Optimized to handle various loading conditions more efficiently than solid structures.
  • Energy Absorption: Capable of absorbing high levels of energy under impact, crucial for protective automotive applications.

Application and Impact

  • Vehicle Performance Optimization: The use of composite materials in automotive design not only enhances performance but also significantly reduces the vehicle’s environmental footprint.
  • Safety Improvements: Advanced composites increase the energy absorption capability during collisions, thereby improving passenger safety.
  • Design Flexibility: The adaptability of composite materials allows for innovative design approaches that can conform to specific performance and aesthetic requirements.

Limitations of Traditional Materials in Automotive Applications

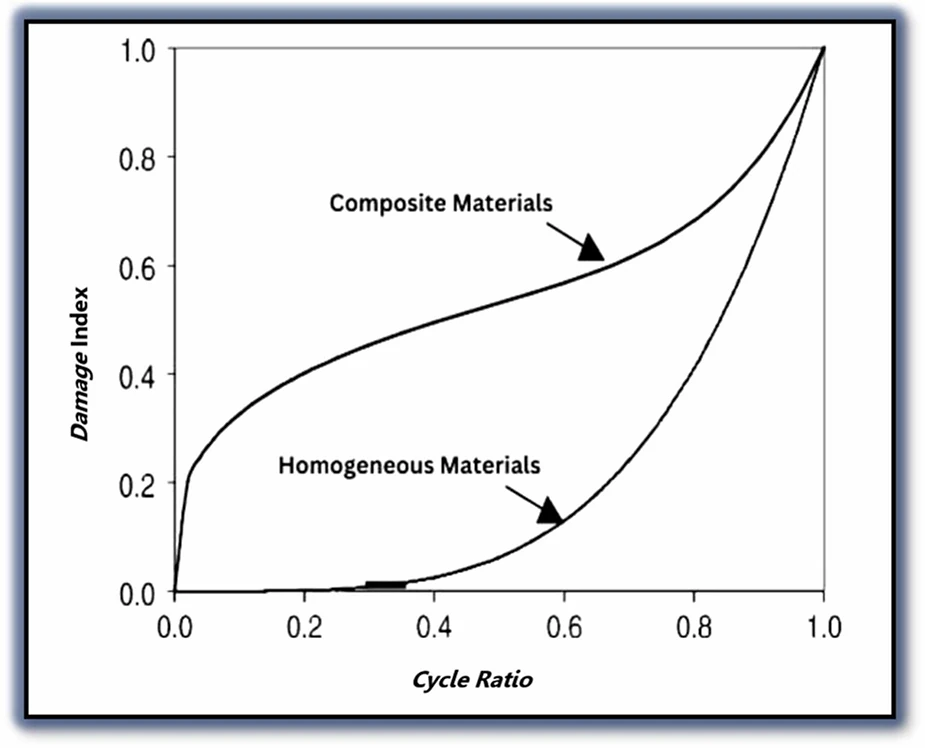

Fatigue damage build-up in sketches

Overcoming the limitations of traditional materials in automotive applications is a key driver for the adoption of advanced composites like honeycomb structures. Here are the major limitations of traditional materials and how advanced composites address these challenges:

Limitations of Traditional Materials

  1. Weight: Traditional materials like steel and aluminum, though strong and durable, add significant weight to vehicles, which can impact fuel efficiency and emissions.
  2. Corrosion: Metals are susceptible to corrosion over time, especially under varying environmental conditions, which can compromise the structural integrity and lifespan of automotive components.
  3. Manufacturing Complexity: Traditional materials often require complex and energy-intensive processes for shaping and assembly, which can limit design flexibility and increase production costs.
  4. Energy Absorption: While metals are structurally sound, they often do not absorb energy as efficiently during impacts when compared to more advanced materials. This can result in more severe damage and less safety in crash scenarios.
  5. Cost: The cost of raw materials and processing for metals can be high, particularly for lighter, more advanced alloys.

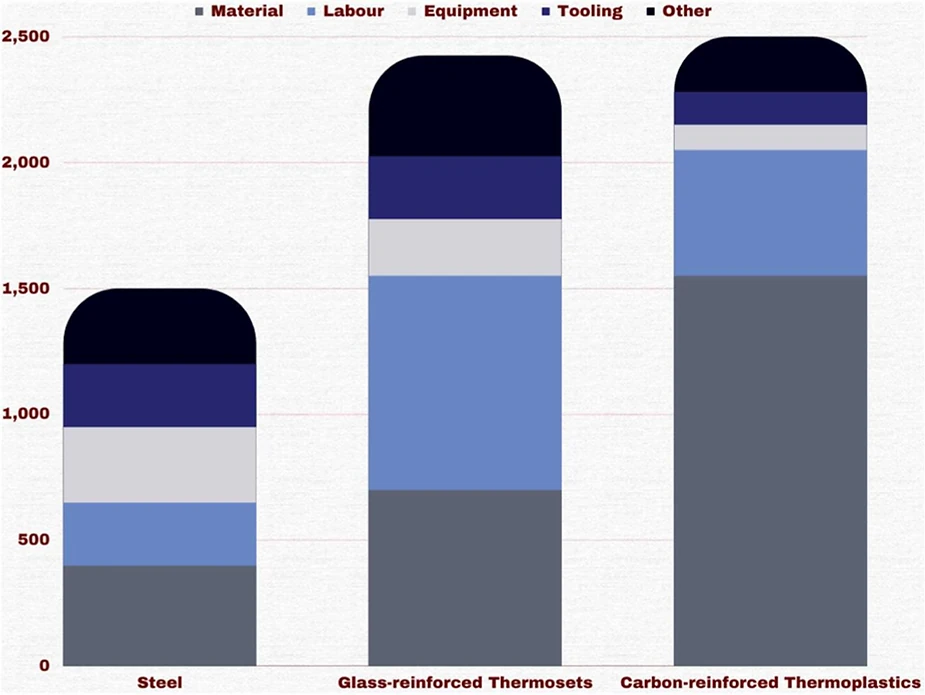

Comparison of the Cost Structure of Body-in-White Design

Harnessing the Unique Properties and Manufacturing Techniques of Continuous Fiber Composite Materials

Advantages of Advanced Composites in Overcoming These Limitations

  1. Reduced Weight:  Advanced composites, especially carbon fiber and honeycomb structures, offer high strength-to-weight ratios, significantly reducing vehicle mass. This leads to better fuel efficiency and lower emissions.
  2. Enhanced Corrosion Resistance: Composites are inherently more resistant to corrosion compared to metals, which enhances the longevity and durability of automotive components.
  3. Increased Manufacturing Flexibility: The moldability of composite materials allows for more complex and integrated designs that are difficult to achieve with traditional materials. This can lead to the consolidation of parts and a reduction in assembly steps and costs.
  4. Superior Energy Absorption: Composite materials can be engineered to absorb and dissipate energy effectively during impacts. Honeycomb structures, in particular, are designed to crush in a controlled manner, absorbing energy and protecting passengers during collisions.
  5. Cost-Effectiveness: While the initial cost of composite materials can be higher than traditional metals, their durability, reduced maintenance, and lighter weight can result in lower lifecycle costs. Additionally, the ability to integrate multiple functions into single components can further reduce overall costs.
  6. Thermal and Acoustic Insulation: Composites provide better insulation against heat and noise compared to metals, which can improve the comfort and energy efficiency of vehicles.
  7. Customization and Performance Tuning: The properties of composites can be tailored to specific needs through the adjustment of fiber types, orientations, and matrix materials, allowing for performance optimization that is not feasible with traditional materials.

Leveraging Advanced Fabrication Techniques

  1. Automated Lay-Up and Tape Laying:Automated fiber placement and tape laying techniques allow for precise control over the orientation of fibers, optimizing the strength and stiffness of components according to load requirements while minimizing waste.
  2. Resin Transfer Molding (RTM):RTM enables the production of complex geometric shapes with excellent surface finish and high dimensional accuracy. This process is faster than traditional hand lay-up methods, making it suitable for higher-volume production.
  3. 3D Printing of Composites:Additive manufacturing techniques enable the printing of composite materials directly into complex shapes and structures. This not only reduces the production time and cost but also allows for the design of more optimized structures that traditional methods cannot achieve.
  4. Thermoforming and Compression Molding:These processes are used for rapid shaping of composite sheets and preforms. Thermoforming is particularly effective for making lightweight body panels and other large structural components.

Strategic Implementation

  1. Modular Design: Composite materials facilitate modular vehicle design strategies, allowing for easier upgrades and part replacements. This can extend the lifecycle of the vehicle and reduce manufacturing and maintenance costs.
  2. Integration of Functions: Composites allow for the integration of multiple functions into a single component, such as combining structural support with aesthetic surface finishes or built-in channels for wiring and airflow.
  3. Tailored Properties:By adjusting the type, orientation, and arrangement of fibers, manufacturers can tailor the mechanical, thermal, and electrical properties of composites to meet specific application requirements.
  4. Sustainability Focus:Investing in bio-based composites and recycling technologies can help automotive manufacturers reduce their environmental footprint further. Bio-composites made from natural fibers are gaining popularity due to their renewable origins and lower environmental impact.

Fabrication Technique

Advantages

Applications

Resin Transfer Molding (RTM)

High fiber volume fractions, consistent quality, complex shapes

Structural components, body panels

Compression Molding

Near-net-shape components, high production volumes

Sheet Molding Compounds (SMCs), Bulk Molding Compounds (BMCs)

Automated Fiber Placement (AFP) and Automated Tape Laying (ATL)

Precise fiber placement, highly optimized structures

Large and complex structures

Filament Winding

High strength-to-weight ratio, suitable for cylindrical parts

Pressure vessels, drive shafts

Vacuum Infusion

Large components, low-volume production

Body panels, structural parts

Unleashing the Potential of Composite Materials for Lightweight, High-Performance Automotive Components

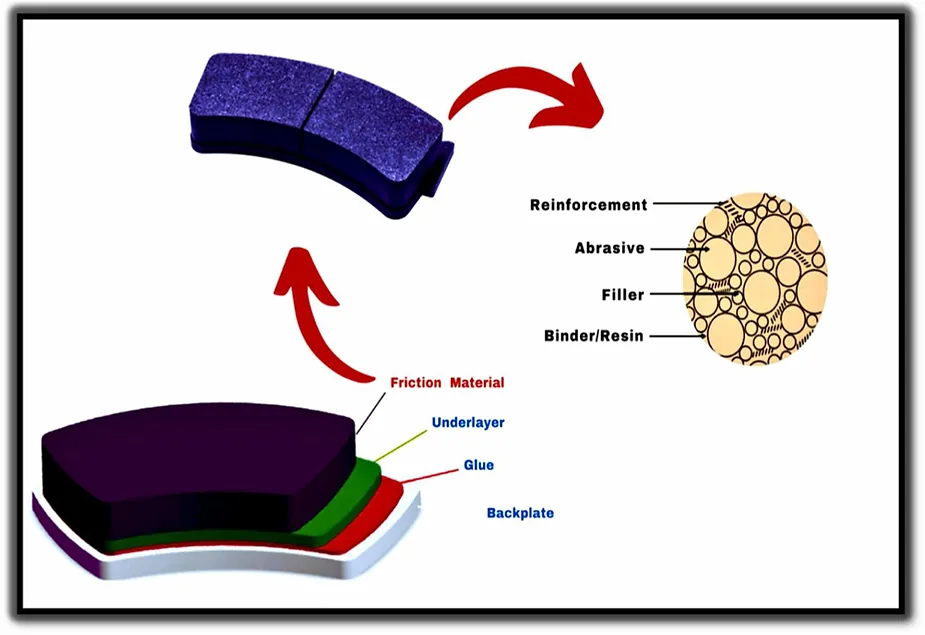

Brake Pads Structure.

The automotive industry is witnessing a paradigm shift towards lightweight, high-performance components, and composite materials are at the forefront of this revolution. By leveraging the unique properties and advanced fabrication techniques of composites, manufacturers are unlocking new possibilities in vehicle design and performance.

Composite materials offer a wide range of applications in the automotive sector. One prominent example is their use in structural components such as chassis, body panels, and suspension systems. By replacing traditional metal parts with composite alternatives, significant weight reductions can be achieved without compromising strength or stiffness. This translates to improved fuel efficiency, reduced emissions, and enhanced vehicle dynamics.

Another key application of composites is in the development of lightweight and high-performance brake systems. Composite brake pads and rotors offer superior wear resistance, thermal stability, and noise reduction compared to conventional materials. This not only enhances the braking performance but also extends the service life of the components.

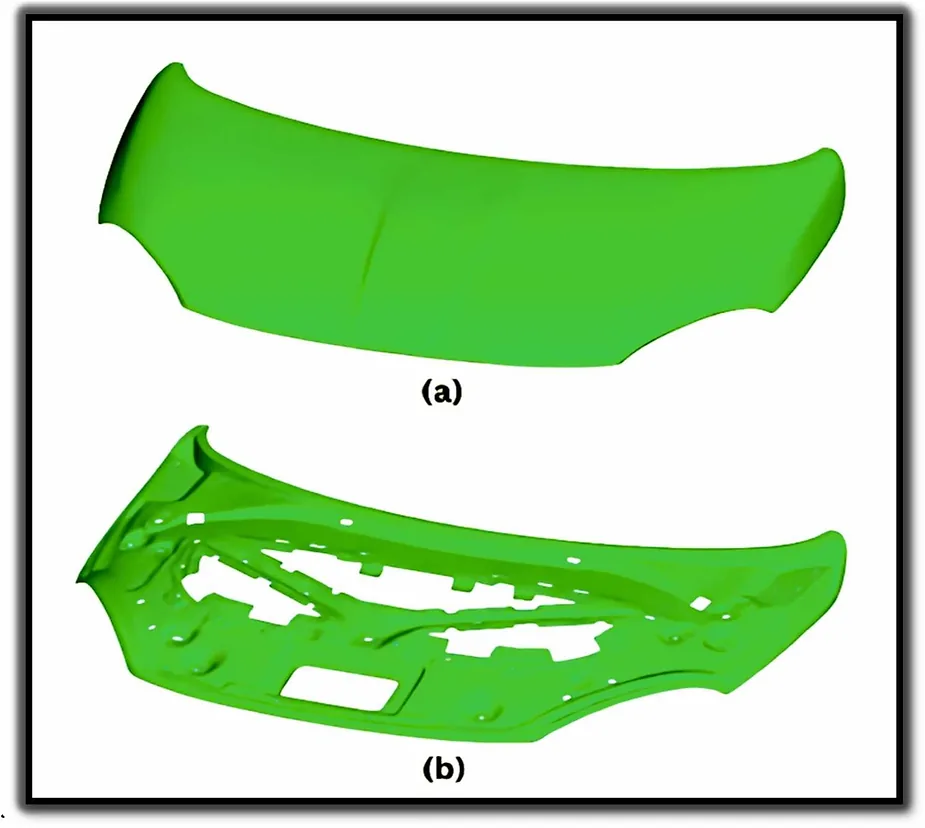

(a) The hood panel of the outside, (b) The hood panel of the inner side.

Composites are also revolutionizing the design of automotive interiors. Lightweight composite seat structures, door panels, and dashboard components contribute to overall vehicle weight reduction while offering improved aesthetics and functionality. The ability to mold composites into complex shapes allows for the integration of features such as built-in sensors, heating elements, and acoustic insulation.

In the realm of powertrain components, composites are finding applications in engine parts, transmission systems, and exhaust components. The high thermal and chemical resistance of ceramic matrix composites (CMCs) makes them suitable for high-temperature applications, such as turbocharger housings and exhaust manifolds. The use of composites in these areas helps to reduce weight, improve heat management, and enhance the overall efficiency of the powertrain.

The automotive industry is also exploring the potential of natural fiber composites as a sustainable and eco-friendly alternative to traditional materials. Natural fibers such as flax, hemp, and jute, when combined with biodegradable polymer matrices, offer a reduced environmental impact while maintaining comparable mechanical properties. These bio-composites are finding applications in non-structural components such as interior trim, door panels, and trunk liners.

To fully realize the potential of composite materials, close collaboration between material scientists, engineers, and designers is essential. The development of advanced simulation tools and testing methods is crucial for predicting the behavior of composite components under various loading conditions. Additionally, establishing robust supply chains and investing in specialized manufacturing facilities are key to scaling up the production of composite parts.

References

let's thank the authors Fardin Khan, Nayem Hossain, Juhi Jannat Mim, SM Maksudur Rahman, Md. Jayed Iqbal, Mostakim Billah, and Mohammad Asaduzzaman Chowdhury for their valuable contribution in writing the research paper titled "Advances of composite materials in automobile applications – A review" which was published in the Journal of Engineering Research. Their extensive research and insights have provided the foundation for this informative blog post, shedding light on the revolutionary role of composite materials in the automotive industry. We greatly appreciate their dedication and expertise in this field, as their work has significantly contributed to the advancements discussed throughout this blog.
