Overview of 3D Printing of Continuous Fiber Composites: Print Head, Pre and Post Processing



Challenge of 3D Printing Continuous Fiber Reinforced Composites

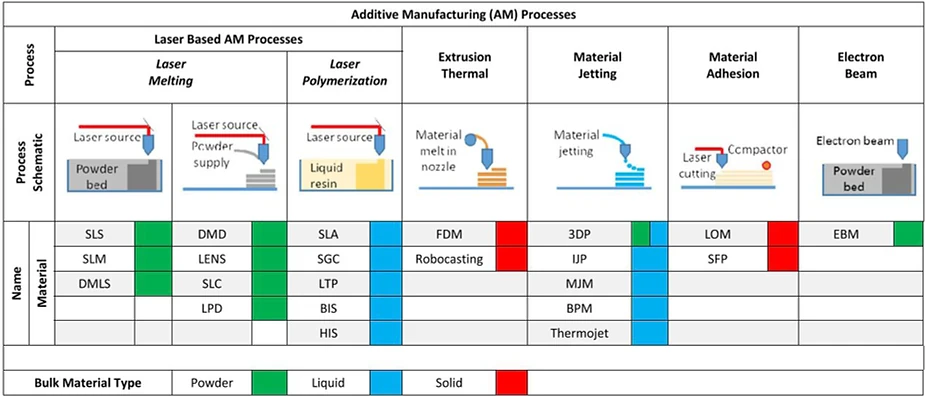

Additive manufacturing (AM), or 3D printing, represents a revolutionary leap in production technology, allowing for the creation of complex structures directly from digital models. This technology has the potential to address some of the most pressing challenges faced by traditional manufacturing methods, including high costs, lengthy production times, and design limitations. Despite its promise, the transition to 3D printing, especially in the realm of continuous fiber reinforced composites (CFRCs), is fraught with hurdles.

The primary challenge lies in the inherent complexity of CFRC materials.

These composites are celebrated for their exceptional strength-to-weight ratios, a characteristic crucial for applications in aerospace, automotive, and sports equipment industries. However, incorporating continuous fibers into a 3D printed matrix without compromising their integrity or the composite's overall mechanical properties is a significant technical challenge. Traditional 3D printing techniques, such as fused deposition modeling (FDM), are not fully equipped to handle the nuances of fiber reinforcement, often leading to weak points at the interfaces between the matrix and the fibers.

Moreover, the mechanical properties of 3D printed CFRCs are directly influenced by a multitude of processing conditions during the printing process.

Parameters such as layer thickness, printing speed, temperature, and fiber orientation must be meticulously optimized to achieve desired outcomes. Even with optimization, the resulting composites often exhibit inferior mechanical characteristics compared to their traditionally manufactured counterparts, primarily due to flaws like voids and poor layer bonding.

Addressing these challenges requires a multi-faceted approach, blending innovative pre-processing techniques, advanced printing strategies, and post-processing methods to enhance inter-layer adhesion and fiber impregnation. Research and development efforts are currently underway, exploring new methodologies like dual extrusion and compaction roller techniques, aiming to improve the distribution and bonding of fibers within the composite matrix.

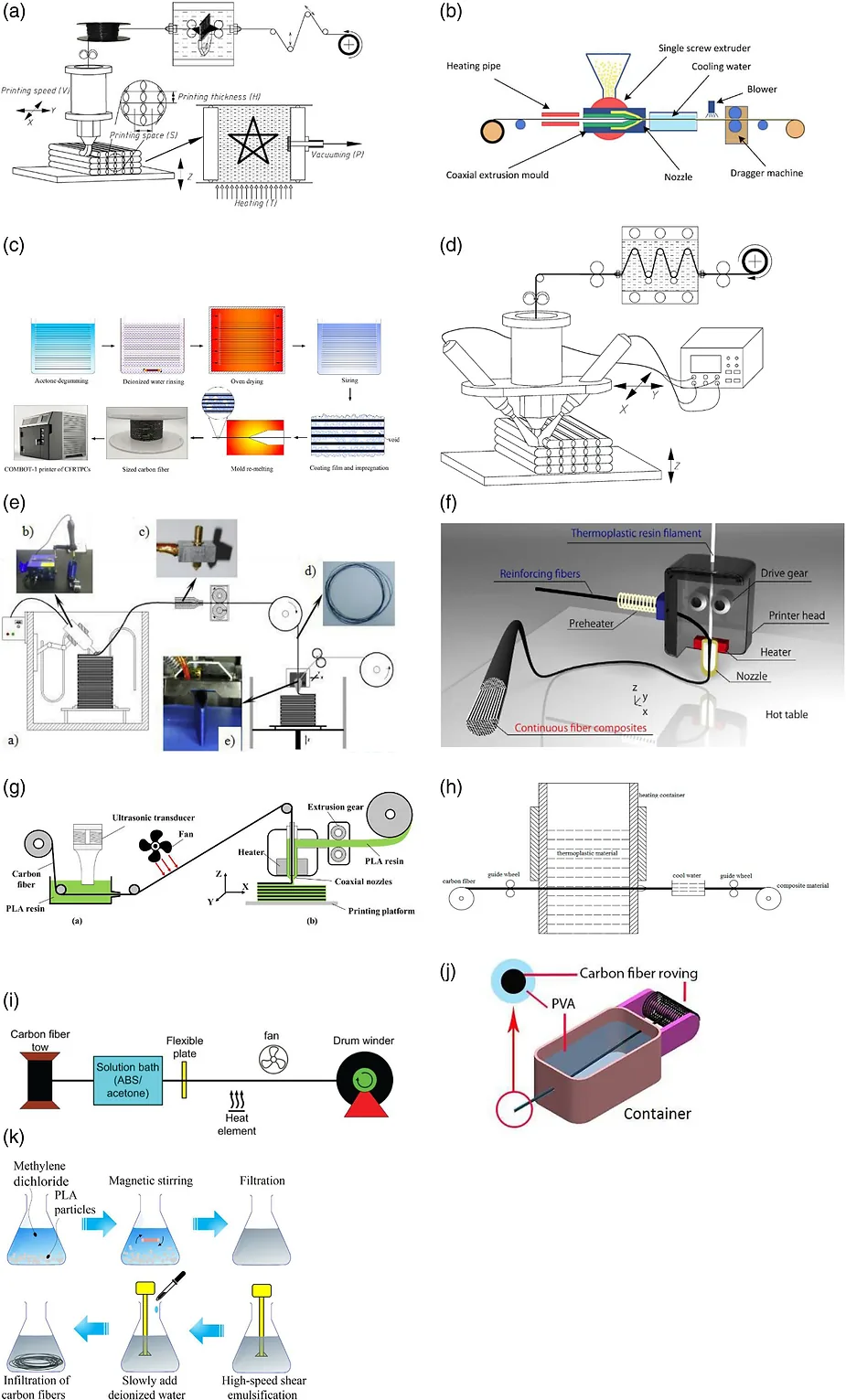

Complexity of Impregnation

The path to leveraging the full potential of continuous fiber reinforced composites (CFRCs) in 3D printing encounters several technical challenges, among which the process of impregnation stands out. Impregnation—the method of thoroughly infusing the matrix material into the continuous fibers—is pivotal for ensuring the composite's mechanical integrity and performance. This step is crucial for the material's final strength, durability, and functionality.

Achieving a uniform and complete impregnation is a nuanced challenge. The process must ensure that the matrix material, typically a type of resin, fully saturates the continuous fibers. This is essential for the composite to exhibit its characteristic high strength-to-weight ratio and durability. However, the rapid material deposition and cooling inherent in 3D printing introduce complexities not present in traditional composite manufacturing methods. These include maintaining optimal temperature gradients and ensuring the deposition speed does not compromise the material's quality.

Innovative approaches are being explored to enhance impregnation quality in 3D printed CFRCs. Techniques such as pre-heating the fibers to improve their receptiveness to the matrix material, adjusting the printing temperature for better matrix flow, and applying ultrasonic vibration during the process have shown promise in improving fiber saturation. These methods aim to address the core issues of achieving even distribution and strong adhesion of the matrix to the fibers, ultimately enhancing the mechanical properties of the composite.

The pursuit of optimal impregnation techniques underscores the ongoing innovations in the field of 3D printing CFRCs. As researchers and manufacturers refine these processes, the potential applications of CFRCs continue to expand, promising new horizons in industries ranging from aerospace to automotive, where the material's unique properties can lead to significant advancements.

Overcoming the impregnation challenge is not just a step towards better material quality; it's a leap towards redefining the boundaries of what 3D printing technology can achieve. With each innovation, the industry moves closer to realizing the full potential of CFRCs, marking a significant milestone in the evolution of composite manufacturing.

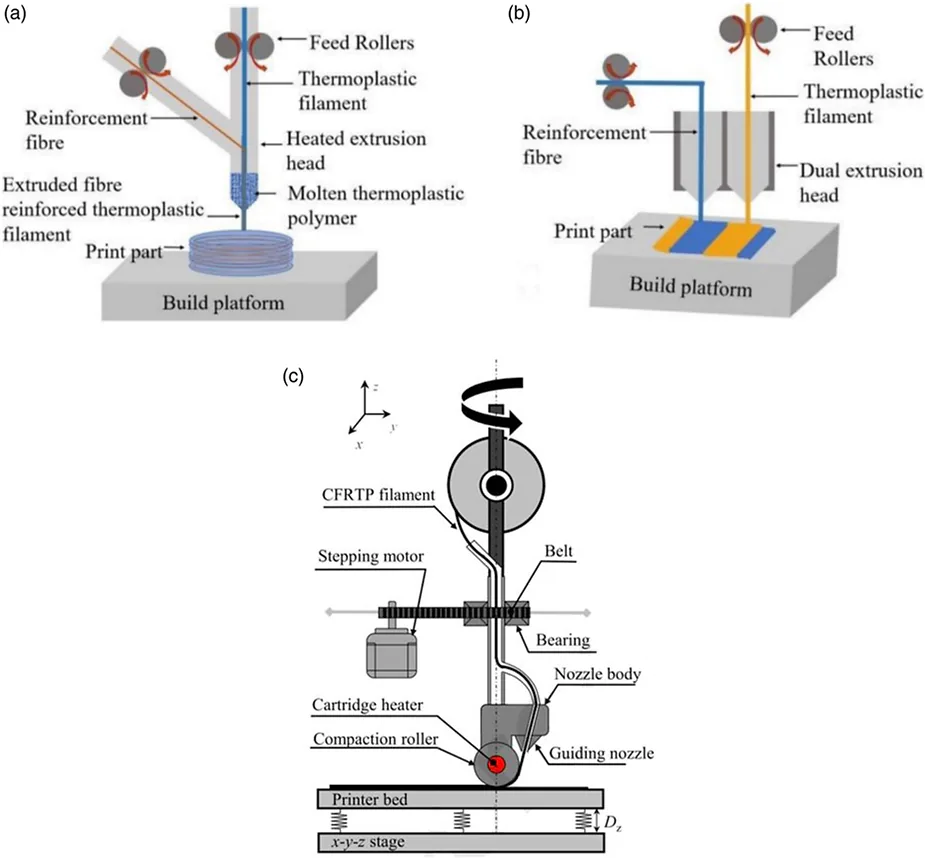

From Dual Extrusion to Compaction: Navigating the 3D Printing Techniques

The realm of 3D printing continuous fiber reinforced composites (CFRCs) is marked by an array of intricate techniques, each with its own set of challenges and advantages. Among these, dual extrusion and compaction stand out as pivotal methods that significantly impact the quality and functionality of the final composite products.

Dual extrusion is a technique where the printer uses two separate nozzles to lay down the matrix material and the continuous fibers simultaneously. This method offers a high degree of flexibility in terms of material combinations, enabling the production of composites with tailored properties. However, the dual extrusion process is not without its challenges. Achieving a uniform distribution of the reinforcing fibers and ensuring their proper adhesion to the matrix material requires precise control over the extrusion rates and paths. Moreover, the process parameters, such as temperature and print speed, must be meticulously optimized to minimize defects like voids and ensure the mechanical integrity of the composite.

Compaction roller technique introduces a mechanical component to the printing process. After deposition, a roller compacts the layer, enhancing the consolidation of the matrix and the fibers. This method improves the inter-layer adhesion and reduces the presence of voids, leading to composites with superior mechanical properties. However, implementing a compaction roller complicates the printing setup and requires careful calibration to apply the right amount of pressure without damaging the fibers or distorting the part.

Each of these techniques reflects the broader complexities of 3D printing CFRCs. The choice between dual extrusion and compaction—or a combination thereof—depends on the specific requirements of the composite, such as the desired strength, flexibility, and application. Innovations in printer design and process control are continually expanding the capabilities of these techniques, pushing the boundaries of what can be achieved with 3D printed composites.

Despite the advancements, significant hurdles remain in the quest for optimal fiber placement and matrix-fiber bonding. Researchers are exploring new approaches, including varying the fiber orientation and layer thickness, to address these challenges. The development of novel materials and processing conditions further contributes to enhancing the performance of 3D printed CFRCs.


Enhancing Mechanical Properties Through Post-Processing

The journey from raw materials to finished continuous fiber reinforced composites (CFRCs) doesn't end as the 3D printer cools down. Post-processing, the critical final step in the production of 3D printed CFRCs, plays a pivotal role in defining the mechanical properties and application potential of these advanced materials. Techniques such as hot pressing and vacuuming emerge not just as finishing touches but as transformative processes that can significantly enhance the strength, durability, and performance of the composites.

Hot pressing involves the application of heat and pressure after the 3D printing process. This method can improve the density and remove the voids within the composite material, leading to a more uniform and tightly bonded structure. The pressure helps in better fusion of the matrix and the fibers, enhancing the interfacial adhesion and, consequently, the load-transfer efficiency between them. However, optimizing the parameters of hot pressing—temperature, pressure, and duration—is crucial to avoid damaging the fibers or degrading the matrix, which could otherwise compromise the composite's integrity.

Vacuuming, another post-processing technique, involves placing the printed composite under vacuum to remove entrapped air and volatiles from the matrix. This process can significantly reduce the presence of voids, thereby increasing the density and mechanical properties of the composite. In some cases, vacuuming is combined with the infusion of additional resin to ensure complete impregnation of the fibers, further enhancing the mechanical properties.

These post-processing techniques highlight the importance of the 'finishing' phase in the manufacturing of CFRCs. By refining the microstructure and improving the material consolidation, post-processing unlocks the true potential of 3D printed composites. The challenge lies in the delicate balance between applying sufficient heat and pressure to enhance the properties without inducing damage or warpage.

The implications of effective post-processing are far-reaching, extending the application scope of 3D printed CFRCs to sectors demanding high-performance materials, such as aerospace, automotive, and sports equipment. As the technology evolves, the development of innovative post-processing methods tailored to the unique requirements of different composite materials will be essential for advancing the frontier of 3D printing technology.


A heartfelt thank you to Faraz Safari, Abdolvahed Kami, and Vahid Abedini for their invaluable contributions detailed in "3D Printing of Continuous Fiber Reinforced Composites: A Review of the Processing, Pre- and Post-Processing Effects on Mechanical Properties." Their thorough research and insightful analysis have significantly enriched our understanding, shedding light on the complexities and advancements in the field of 3D printed continuous fiber reinforced composites.
