Advanced Print Head Technologies Transform Additive Manufacturing

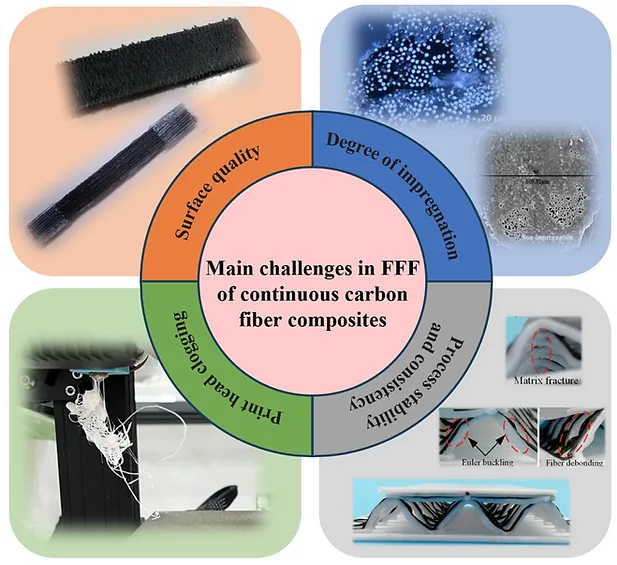

Challenges in Additive Manufacturing of Continuous Carbon Fiber-Reinforced Composites

In the realm of additive manufacturing (AM), the quest for enhanced material properties has led to the development of continuous carbon fiber-reinforced composites. These materials offer exceptional mechanical properties, crucial for applications in aerospace, automotive, and military sectors. However, the integration of continuous carbon fibers into the fused filament fabrication (FFF) process introduces a set of complex challenges that significantly impact the quality and feasibility of the final products. the main challenges in additive manufacturing (fused filament fabrication) of continuous carbon fiber-reinforced composites include:

  1. Print head clogging - Nozzle clogging is a common mechanical failure when printing these composites.

  2. Degree of impregnation - Achieving sufficient impregnation of the fibers with the polymer matrix is challenging, especially with in-situ impregnation methods. Poor impregnation can lead to local pore defects and reduced mechanical properties.

  3. Surface quality - Achieving smooth surface quality of the printed parts is difficult. Use of flattened nozzle tips and applying compaction force can help reduce fiber waviness and improve surface quality.

  4. Process stability and consistency - Precise control over parameters like feed rate, temperature, pressure is needed to ensure stable, consistent printing. Fiber damage and breakage can occur with improper feed rates and tensions.

  5. Low fiber volume fraction - Single-extrusion print heads are limited in the fiber volume fractions that can be achieved while maintaining resin flow. This constrains the mechanical performance.

  6. Internal void defects - 3D printed composites tend to have significantly more internal voids and defects compared to traditionally manufactured composites, which degrades mechanical properties. Pressure control in the print head is important for minimizing voids.


Technical Hurdles in Achieving Optimal Print Head Performance

Achieving optimal performance in the print heads of fused filament fabrication (FFF) systems, particularly when dealing with continuous carbon fiber-reinforced composites, presents several significant technical challenges. The core difficulties stem primarily from the material characteristics of continuous carbon fibers combined with thermoplastic matrices, as well as the mechanical design constraints of print heads capable of precise and reliable extrusion.

  1. Nozzle design

    1. Preventing nozzle clogging due to resin accumulation

    2. Reducing fiber damage from sharp edges

    3. Selecting appropriate nozzle diameter, material, and temperature

    4. Optimizing nozzle geometry (e.g. conical shape, flattened tip) for mixing and compaction

  2. Heating and cooling control

    1. Maintaining precise, uniform temperature distribution in the heating block and nozzle

    2. Avoiding premature melting of filament in cold zones

    3. Controlling melt viscosity and flow behavior of the resin

  3. Pressure management in the liquefier/chamber

    1. Generating sufficient pressure for impregnation and minimizing voids

    2. Balancing interior and exterior pressures during deposition

    3. Accommodating space constraints of pressure control mechanisms

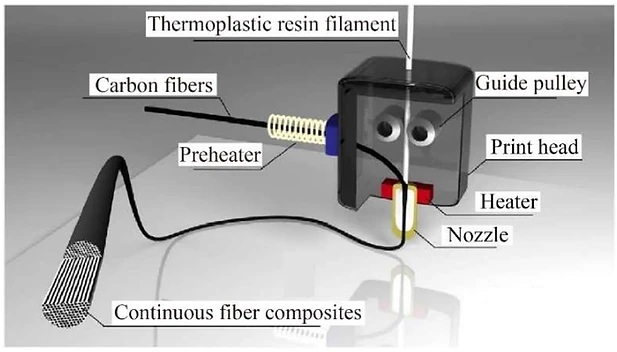

  4. Guide mechanism design

    1. Smoothly and consistently feeding fiber and polymer filaments

    2. Minimizing friction between filament and guide surfaces

    3. Preventing fiber twisting, misalignment or breakage

  5. Optimizing laying and compaction

    1. Synchronizing fiber feed rate with the nozzle movement speed

    2. Controlling fiber tension and maintaining straightness after exiting nozzle

    3. Applying appropriate compaction force through nozzle tip geometry and z-positioning

The print head design needs to delicately balance the thermal, flow, and mechanical behaviors of the fibers and polymer melt to produce high-quality printed composites. This requires carefully optimizing each functional component and seamlessly integrating them. More modeling and simulation of the complex phenomena inside the print head is still needed to guide design improvements.

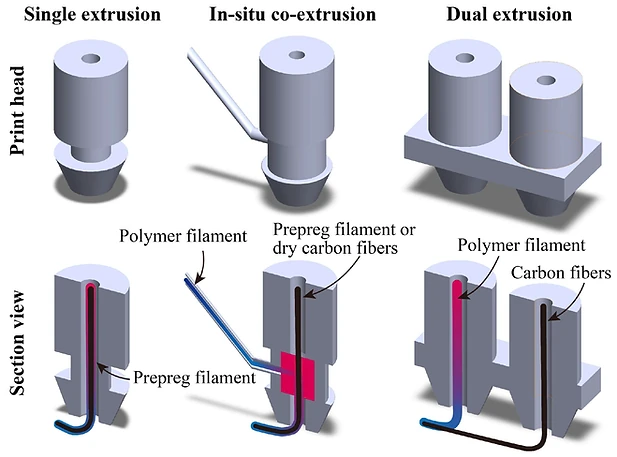

Advanced Extrusion Methods for Enhanced Composite Fabrication

three main advanced extrusion methods for enhanced fabrication of continuous carbon fiber composites:

  1. Single extrusion

    1. Uses pre-impregnated continuous carbon fiber filament

    2. Simple design, easy to implement

    3. Allows high impregnation quality

    4. But limited to low fiber volume fractions to maintain flowability

    5. Constrains the selection of fiber and matrix combinations

  2. In-situ co-extrusion

    1. Feeds continuous fiber and polymer matrix separately into print head

    2. Impregnation occurs inside the heated liquefier/chamber

    3. Enables higher fiber volume fractions (>50% reported)

    4. Provides flexibility in selecting fiber and matrix materials

    5. But requires complex print head design to accommodate two feed paths

    6. Risk of poor impregnation due to limited time and pressure inside print head

    7. Slower printing speed needed to ensure adequate mixing

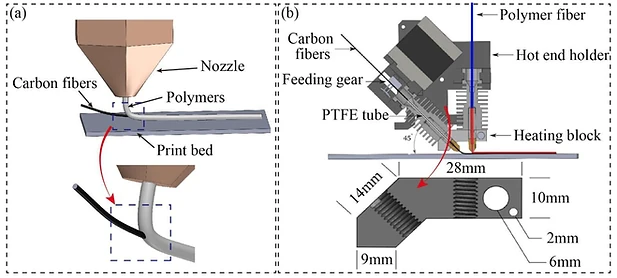

  3. Dual extrusion

    1. Deposits continuous fiber and polymer matrix simultaneously but separately

    2. Fiber encapsulation and composite formation occurs outside the nozzle

    3. Maintains integrity of pre-impregnated fibers

    4. Enables high printing speeds

    5. Provides flexibility in material selection

    6. But lacks sufficient pressure for void elimination

    7. Bonding between fiber and matrix relies on hot fiber encapsulation

Among these, in-situ co-extrusion seems most promising for producing composites with high fiber content and good matrix-fiber interfacial bonding. However, it also poses the greatest challenges in print head design and processing control.
Dual extrusion could be suitable for large scale, high-speed printing but more research is needed on improving the consolidation quality.

In general, these advanced extrusion techniques aim to overcome the limitations of traditional single-extrusion while leveraging the benefits of using continuous fiber reinforcement. More innovations in print head design and processing science are still needed to fully realize their potential in composite additive manufacturing.


Future Directions in Print Head Technology for Carbon Fiber Composites

the future directions in print head technology for advancing additive manufacturing of continuous carbon fiber composites include:

  1. Intelligent control of printing parameters

    1. Developing closed-loop control systems that can monitor and adjust key parameters like temperature, pressure, feed rate, etc. in real-time

    2. Enabling adaptive control to accommodate variations in material properties and printing conditions

  2. Integrated process monitoring and quality control

    1. Incorporating in-situ sensors (e.g. thermocouples, pressure transducers, fiber tension meters) into the print head for process monitoring

    2. Using the sensor data for detection of defects, anomalies, and process drifts

    3. Integrating machine learning algorithms for data-driven quality control and optimization

  3. Multi-material and multi-functional printing

    1. Designing print heads that can handle multiple types of fibers and matrix materials simultaneously

    2. Enabling the printing of composites with spatially varying compositions and functionalities

    3. Exploring hybrid printing techniques that combine continuous fibers with other materials like metals, ceramics, etc.

  4. High-speed and large-scale printing

    1. Developing print head designs that can enable high-speed deposition while maintaining quality

    2. Exploring parallelization techniques like multi-nozzle arrays for enhancing productivity

    3. Scaling up the print head and associated sub-systems for large-format composite printing

  5. Modeling and simulation-driven design

    1. Leveraging advanced computational tools like finite element analysis, computational fluid dynamics, etc. to model the complex thermo-mechanical phenomena inside the print head

    2. Using the simulation insights to optimize the print head design and processing parameters

    3. Establishing a digital twin of the print head for virtual testing and optimization

  6. Sustainable and recyclable composite printing

    1. Exploring print head designs that can accommodate sustainable fibers and matrix materials

    2. Enabling the printing of recyclable or repairable composite structures

    3. Investigating techniques for in-situ recycling of printed composites

Advancing the print head technology in these directions can help unlock the full potential of additive manufacturing for producing high-performance, multi-functional composite structures in a cost-effective and sustainable manner. However, realizing these will require close collaboration between the hardware, software, and material domains, as well as targeted research investments.



let’s take a moment to acknowledge the significant contributions of Heng Cai and Yuan Chen, the authors of the PDF titled "Fused Filament Fabrication of Continuous Carbon Fiber-Reinforced Composites." Their in-depth research and comprehensive analysis have provided a strong foundation for our discussions on advancements in print head technology for fused filament fabrication. We are immensely grateful for their meticulous work, which continues to inspire innovations and elevate standards in the field of additive manufacturing. Their dedication to exploring and addressing complex challenges in this domain is truly commendable.
