Why CF-PEEK Thermoplastic are Replacing CF-Epoxy Thermoset Composites

We would like to express our deepest gratitude to the authors of the article "Comparison of Properties of Carbon Fiber Reinforced Thermoplastic and Thermosetting Composites for Aerospace Applications". The authors, Sudhin A U, Manu Remanan, Ajeesh G, and Karingamanna Jayanarayanan, have conducted a comparative study of carbon fiber reinforced poly ether ketone (CF-PEEK) and CF epoxy (CF-Epoxy) composites, focusing on their mechanical and thermal properties. Their research contributes to the understanding of these materials' potential applications in aerospace and other high-performance industries. Their work has significantly contributed to the following blog.

1. Introduction: A Material Revolution on the Horizon

In the ever-evolving world of material science, the quest for stronger, more resilient, and versatile materials never ceases. The aerospace, automotive, medical, and energy sectors are in a constant search for materials that can withstand extreme conditions, offer superior performance, and contribute to sustainability.

Enter Carbon Fiber Reinforced Poly Ether Ketone (CF-PEEK), a thermoplastic composite that's challenging the status quo and sparking a material revolution. But what makes CF-PEEK so special, and why is it poised to replace traditional Carbon Fiber Reinforced Epoxy (CF-Epoxy) composites?

  • The Problem: CF-Epoxy, though widely used, has limitations such as brittleness, poor crack resistance, and high moisture absorption. These challenges have led to a search for alternatives.

  • The Solution: CF-PEEK offers a unique combination of high tensile strength, thermal stability, and flame resistance, making it a promising alternative to CF-Epoxy.

  • The Question: Why is CF-PEEK emerging as the preferred choice, and what are its potential applications and implications for various industries?

This article explores the rise of CF-PEEK, delving into its properties, advantages, applications, and the future landscape it's shaping. Join us as we unravel the story of CF-PEEK, a material that's not just breaking barriers but redefining what's possible in material science.

2. The Battle of Materials: CF-PEEK vs. CF-Epoxy

In the arena of advanced composites, two contenders stand tall: Carbon Fiber Reinforced Poly Ether Ketone (CF-PEEK) and Carbon Fiber Reinforced Epoxy (CF-Epoxy). Let's break down this epic battle:

  • Materials and Fabrication Methods:

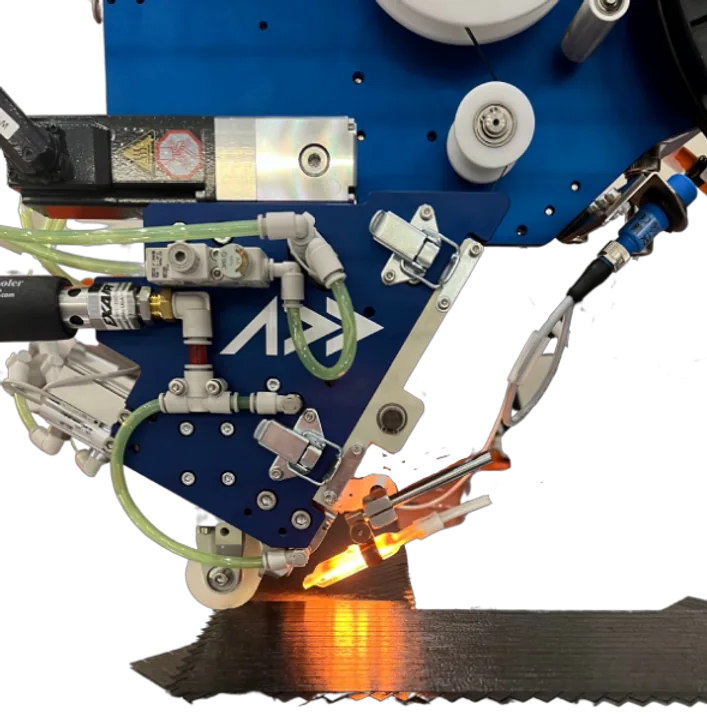

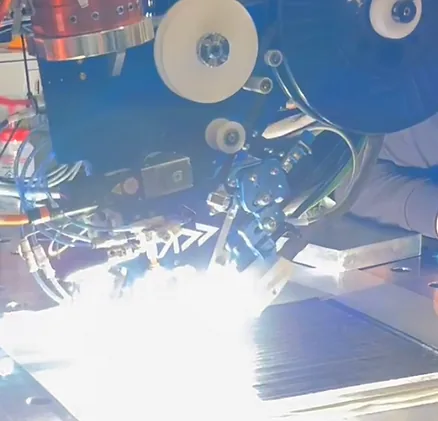

    • CF-PEEK: CF-PEEK tapes are placed by Automated Fiber Placement (AFP)/ Automated Tape Laying (ATL) at Melting temperature, followed by post-curing in a mold at 410°C.

  • CF-Epoxy: CF-Epoxy tapes are placed by AFP/ATL at about 40°C, followed by curing at 80°C-180°C in or outside an Autoclave.

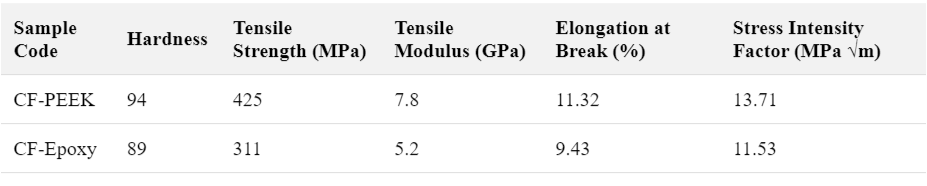

  • Mechanical Properties Showdown:

    • Tensile Strength: CF-PEEK's 425 MPa vs. CF-Epoxy's 311 MPa.

    • Fracture Toughness: CF-PEEK's stress intensity factor is 10% higher.

    • Hardness: Both materials were tested, with CF-PEEK showing superior results.

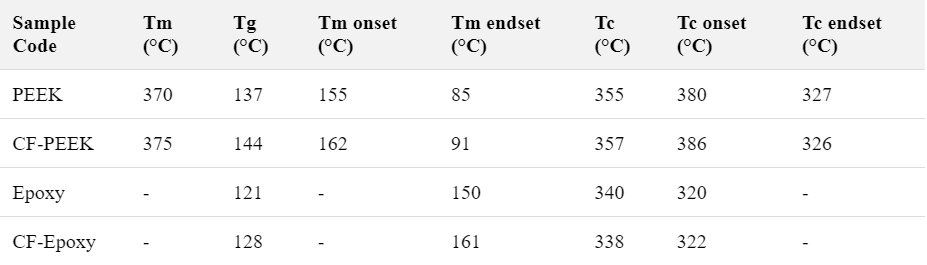

  • Thermal Properties Face-Off:

    • Glass Transition Temperature: CF-PEEK wins with higher stability at elevated temperatures.

    • Flame Retardant Behavior: CF-PEEK's LOI value of 47 showcases excellent flame resistance.

3. Why CF-PEEK Wins: The Advantages

The triumph of Carbon Fiber Reinforced Poly Ether Ketone (CF-PEEK) over traditional CF-Epoxy is more than a technical victory. Here's a closer look at the specific advantages that make CF-PEEK the champion:

  • Superior Tensile Strength for Robust Applications:

    • With a tensile strength of 425 MPa, CF-PEEK outperforms CF-Epoxy's 311 MPa.

    • This translates to more robust materials for demanding applications like aerospace.

  • Enhanced Thermal Stability for Extreme Environments:

    • CF-PEEK's higher glass transition temperature makes it suitable for elevated temperatures.

    • Think of applications like spacecraft re-entry shields or high-performance engine parts.

  • Flame Resistance for Safety-Critical Applications:

    • CF-PEEK's LOI value exceeds 47, indicating superior flame resistance.

    • This could be vital in applications like aircraft interiors or fire-fighting equipment.

  • The Unexpected Underdog's Triumph:

    • CF-PEEK's emergence as a superior alternative to CF-Epoxy is a surprising development.

    • It's not just an alternative; it's becoming the preferred choice for many industries.

  • Backed by Science, Trusted by Industry:

    • The findings are not mere claims; they are backed by rigorous scientific research.

    • CF-PEEK's advantages are recognized and adopted by leading industries worldwide.

4. The Future is Here: Applications and Implications

CF-PEEK is not just a material; it's a symbol of a new era in material science. Here's a glimpse into the future landscape shaped by CF-PEEK:

Aerospace Exploration:

  • From aircraft interiors to re-entry shields, CF-PEEK's superior properties open new horizons in aerospace technology.

  • Automotive Innovation:

    • Imagine lighter, stronger, and more heat-resistant parts in cars, enhancing performance and safety.

  • Medical Breakthroughs:

    • CF-PEEK's biocompatibility and strength could revolutionize medical implants and devices.

  • Energy Sector Transformation:

    • From wind turbines to nuclear reactors, CF-PEEK's resilience can redefine energy infrastructure.

Challenges and Opportunities Ahead:

  • While CF-PEEK's rise is promising, it's essential to recognize potential challenges in manufacturing, cost, and adoption.

  • The opportunities, however, far outweigh the challenges, paving the way for a new era of innovation.

5. Conclusion: Embracing the Change

The story of Carbon Fiber Reinforced Poly Ether Ketone (CF-PEEK) is not just a tale of a material's triumph; it's a narrative of human ingenuity, innovation, and the relentless pursuit of excellence. Here's why embracing CF-PEEK is more than a technological shift:

  • A Symbol of Progress:

    • CF-PEEK represents a leap forward in material science, setting new benchmarks in strength, stability, and safety.

  • A Catalyst for Innovation:

    • From aerospace to healthcare, CF-PEEK is fueling innovation, opening doors to possibilities previously unimagined.

  • A Commitment to Excellence:

    • Adopting CF-PEEK is not just a choice; it's a commitment to excellence, quality, and a future where materials are not just functional but transformative.

  • The Unexpected Call to Action:

    • The triumph of CF-PEEK is not just for scientists and engineers; it's a call to all of us to embrace innovation, to challenge the status quo, and to be part of a future where materials are not just about substance but about significance.

The rise of CF-PEEK is not an isolated event; it's a reflection of our collective potential to create, innovate, and transcend limitations. It's not just about what we make; it's about what we make possible.

Join us in celebrating not just a material but a movement, not just a product but a promise, not just a technology but a testament to human potential.
