By Pravin Luthada, CEO & Co-founder, Addcomposites

During my years at ISRO, I witnessed firsthand how advanced composite materials could push the boundaries of what's possible in extreme environments. Today, I'm excited to share how these same materials are revolutionizing a technology much closer to Earth – high-speed electric motors. The humble carbon fiber sleeve, often overlooked in discussions about electric vehicle innovation, is quietly enabling a new generation of motors that operate at speeds once thought impossible.

When Centrifugal Force Becomes Your Worst Enemy

Let me paint you a picture of the forces at play. When a motor rotor spins at 20,000 RPM – now common in modern electric vehicles – every component experiences centrifugal forces that follow a quadratic relationship with speed. Double the RPM, and you quadruple the forces trying to tear the rotor apart.

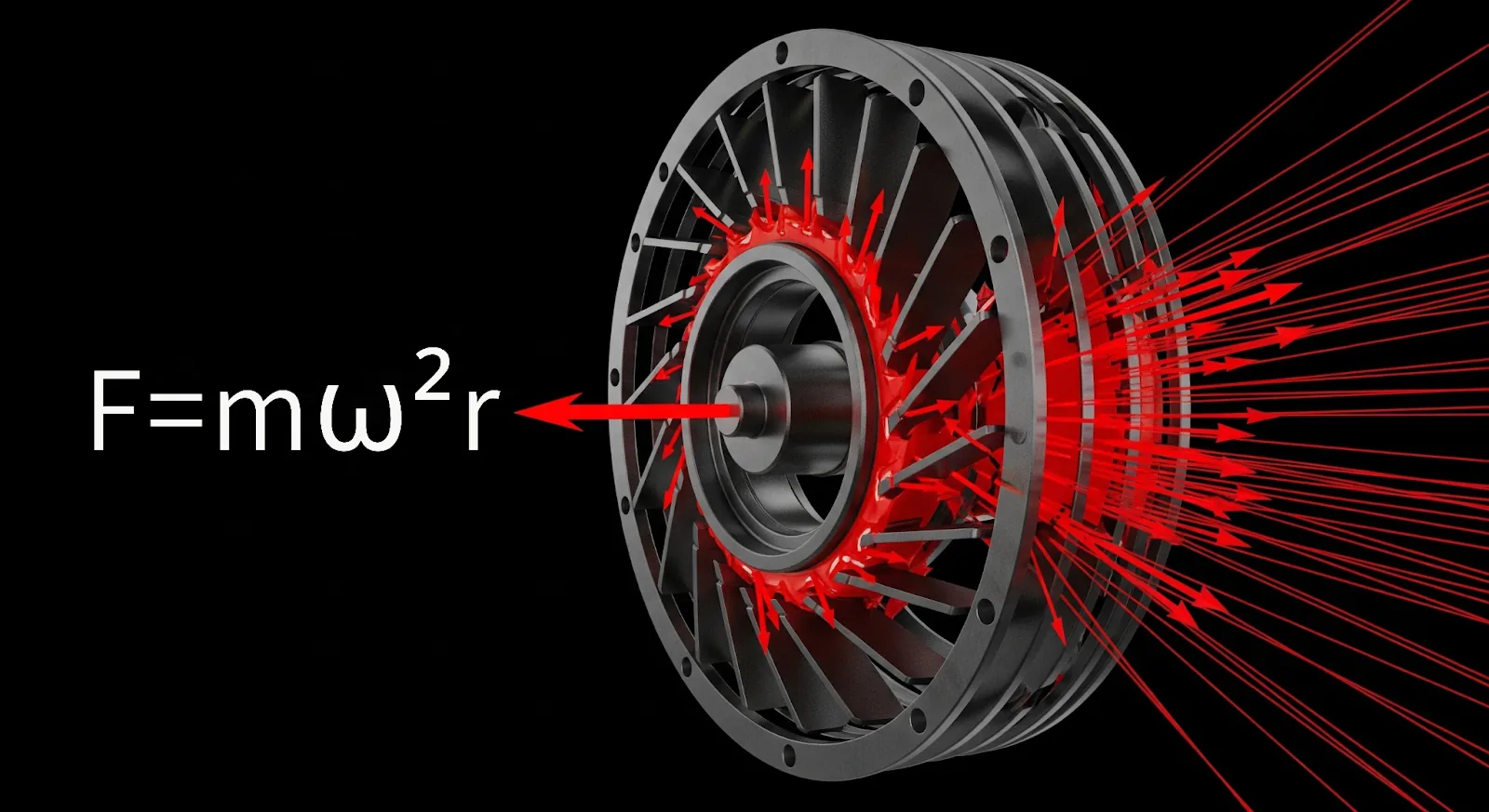

The equation is deceptively simple: F = mω²r

But the implications are profound. At these speeds, the permanent magnets in surface-mounted motors – typically made from brittle rare-earth materials like neodymium-iron-boron (NdFeB) – experience tensile stresses they simply cannot withstand. With tensile strengths around 74 MPa, these ceramic-like materials would literally explode outward without proper containment.

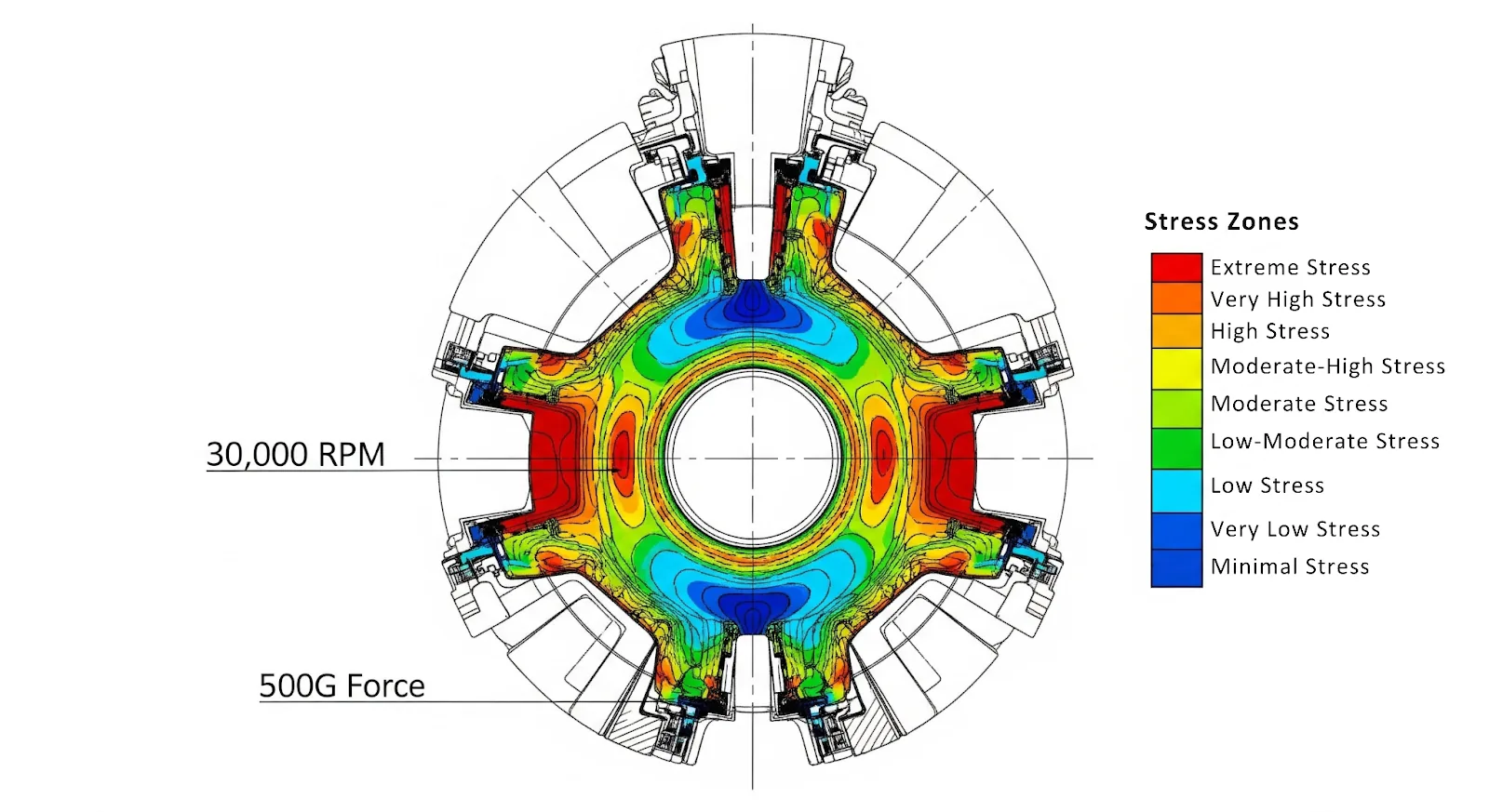

Consider this: at 30,000 RPM, a magnet just 50mm from the rotation axis experiences forces exceeding 500 times gravity. Without containment, catastrophic failure isn't a possibility – it's a certainty.

The stress distribution in the sleeve follows thick-walled cylinder theory, where the hoop stress (σ_θ) is the dominant component. For a rotating sleeve, this stress is approximately:

σ_θ = ρω²(r_o² + r_i²)/2

Where ρ is density, ω is angular velocity, and r_o, r_i are the outer and inner radii. This reveals why material density becomes critical – it directly multiplies with the square of speed.

The Old Guard Falls Short

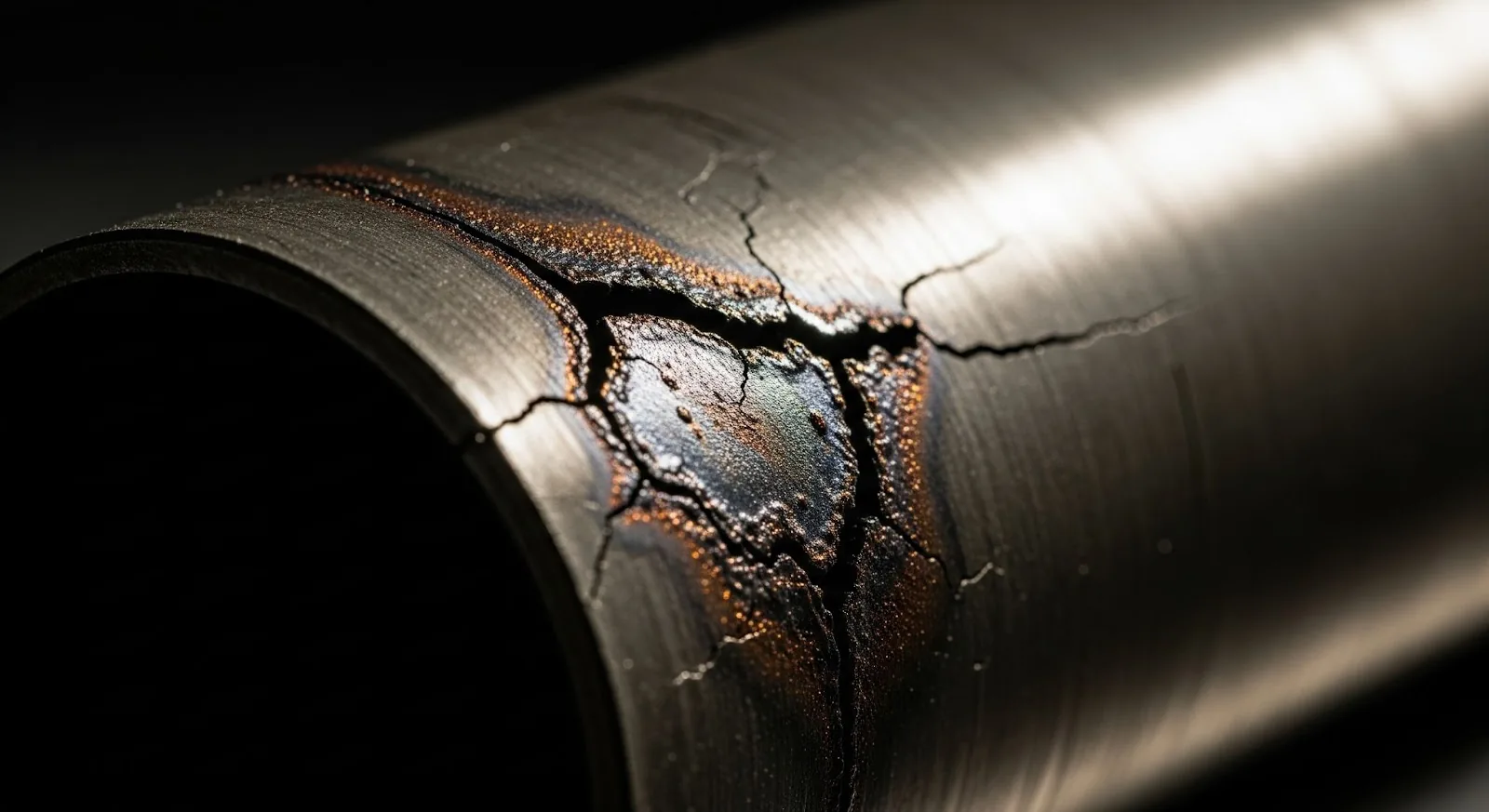

Historically, engineers turned to high-strength metallic sleeves made from materials like Inconel 718, titanium alloys, or specialized stainless steels. These materials offered the necessary strength and were well-understood from decades of aerospace applications.

But here's where the story gets interesting – and where my experience in satellite design becomes relevant. In space applications, every gram matters, and we learned that strength alone isn't the complete answer. The metal sleeves that seemed like the obvious solution carried hidden penalties that only became apparent when pushing the performance envelope.

Let's dive into the numbers. Inconel 718, a superalloy champion, offers:

  • Yield strength: ~1,100 MPa
  • Density: 8,190 kg/m³
  • Electrical conductivity: 0.8×10⁶ S/m
  • Thermal expansion coefficient: 13×10⁻⁶/K

That electrical conductivity becomes a massive problem. When rotating through the motor's magnetic field harmonics – caused by slot effects, PWM switching, and field variations – the conductive sleeve generates eddy currents. The power loss follows:

P_eddy = π²t²f²B²l²/6ρ_e

Where t is sleeve thickness, f is frequency, B is flux density, l is length, and ρ_e is electrical resistivity. For a typical high-speed motor, this translates to 300-700W of pure heat generation.

Enter Carbon Fiber and Everything Changes

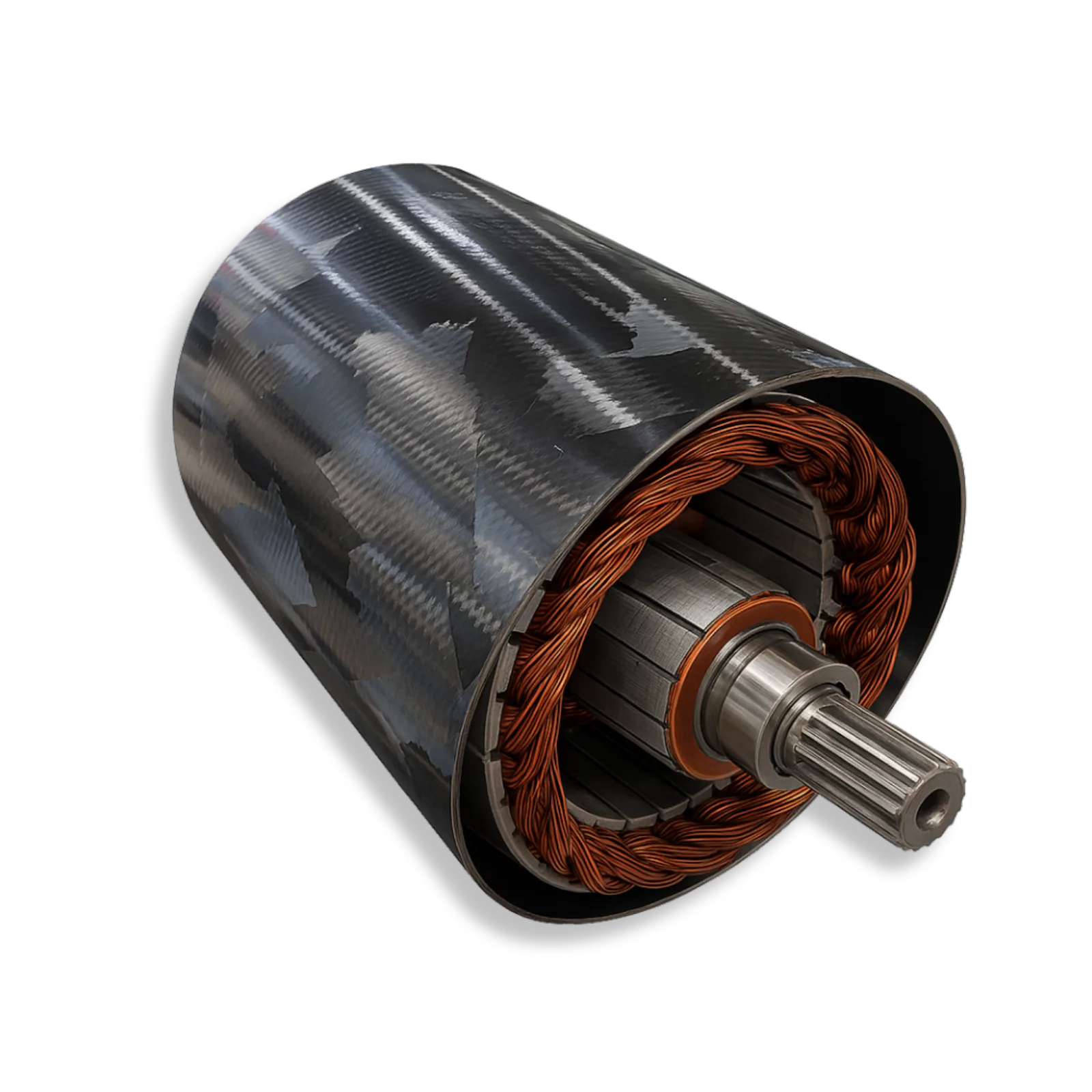

Carbon fiber composite sleeves represent a fundamental shift in how we approach rotor containment. Let me break down why this material is revolutionary:

The Weight Game Nobody Else Can Win

Carbon fiber sleeves are 50% lighter than aluminum and up to 75% lighter than steel alternatives. But the real story isn't just about weight – it's about where that weight sits. In a high-speed rotor, the sleeve must contain not only the magnets but also itself. A heavy metal sleeve generates substantial self-induced stress, consuming much of its own strength just to stay together.

With a density of just 1.55-1.64 g/cm³ compared to steel's 7.85 g/cm³, carbon fiber dedicates more of its strength to actually containing the magnets rather than fighting against its own mass.

The specific strength (strength/density) comparison is striking:

  • Carbon fiber: >1,300 kN·m/kg
  • Titanium: ~215 kN·m/kg
  • Steel: ~130 kN·m/kg

Strength That Defies Logic

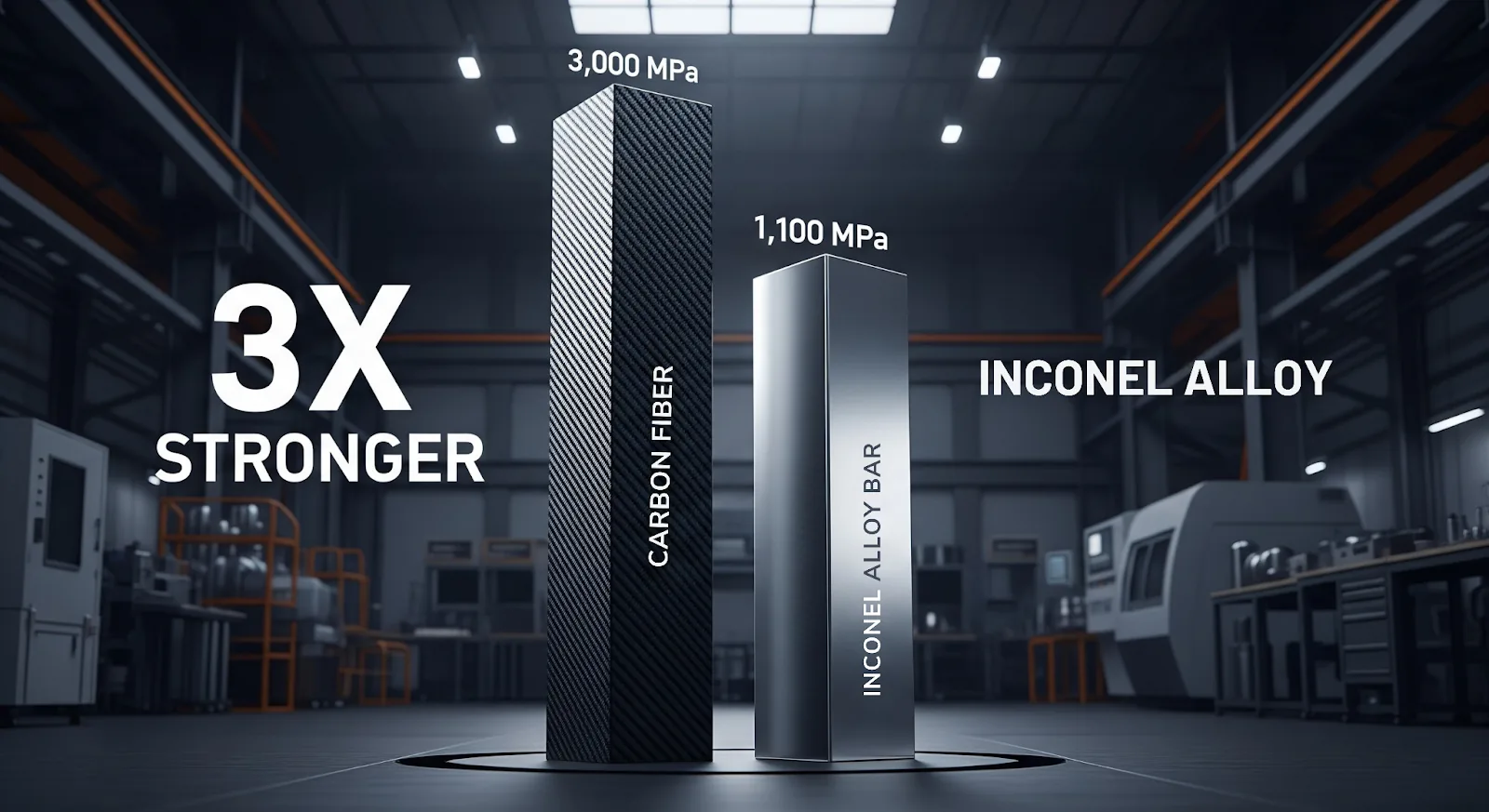

Modern carbon fibers achieve tensile strengths of 2,000-3,000 MPa – nearly triple that of high-performance Inconel alloys. But unlike metals, this strength can be precisely oriented. Through careful fiber placement, we can align the strength exactly where it's needed: in the circumferential (hoop) direction to resist centrifugal forces.

The anisotropic nature of composites becomes an advantage here. By using high-angle helical winding (typically 85-89°), we can achieve:

  • Hoop strength: 2,400+ MPa
  • Axial strength: 100-200 MPa (sufficient for handling)
  • Interlaminar shear strength: 80-120 MPa

This is where advanced manufacturing techniques become crucial. At Addcomposites, we've seen how our AFP-XS system enables manufacturers to achieve fiber orientations within ±1 degree, maximizing the strength utilization of every fiber. The tension control during winding is critical – we typically apply 50-70% of the fiber's ultimate tensile strength during winding to create compressive prestress on the magnets.

The Invisible Advantage That Changes Everything

Here's where carbon fiber truly shines – or rather, doesn't. While metallic sleeves are electrical conductors, carbon fiber composites have extremely low electrical conductivity. This "electromagnetic transparency" eliminates a major source of motor inefficiency: eddy current losses.

The electrical conductivity comparison tells the story:

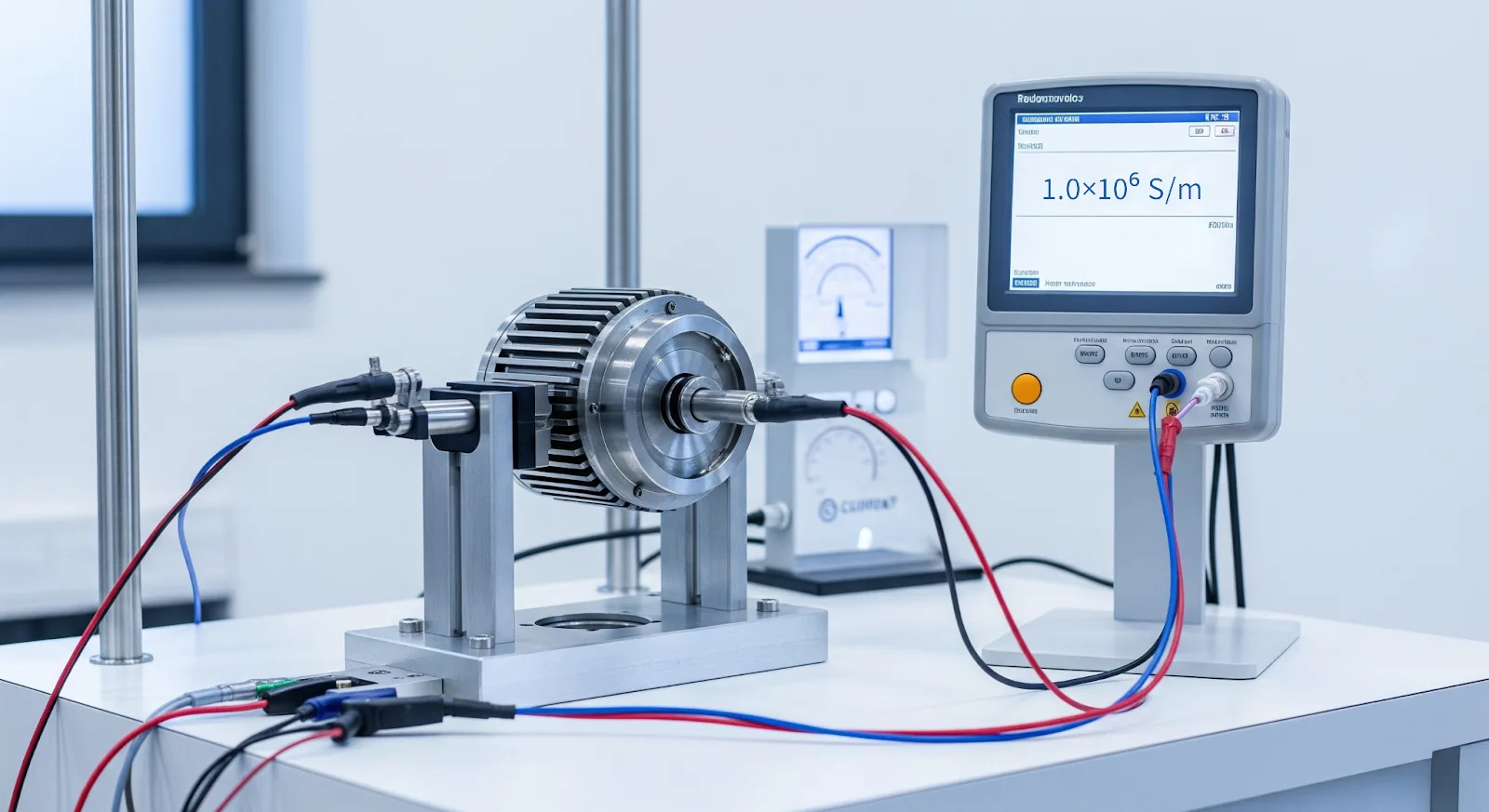

  • Stainless steel: 1.0×10⁶ S/m
  • Titanium: 4.375×10⁵ S/m

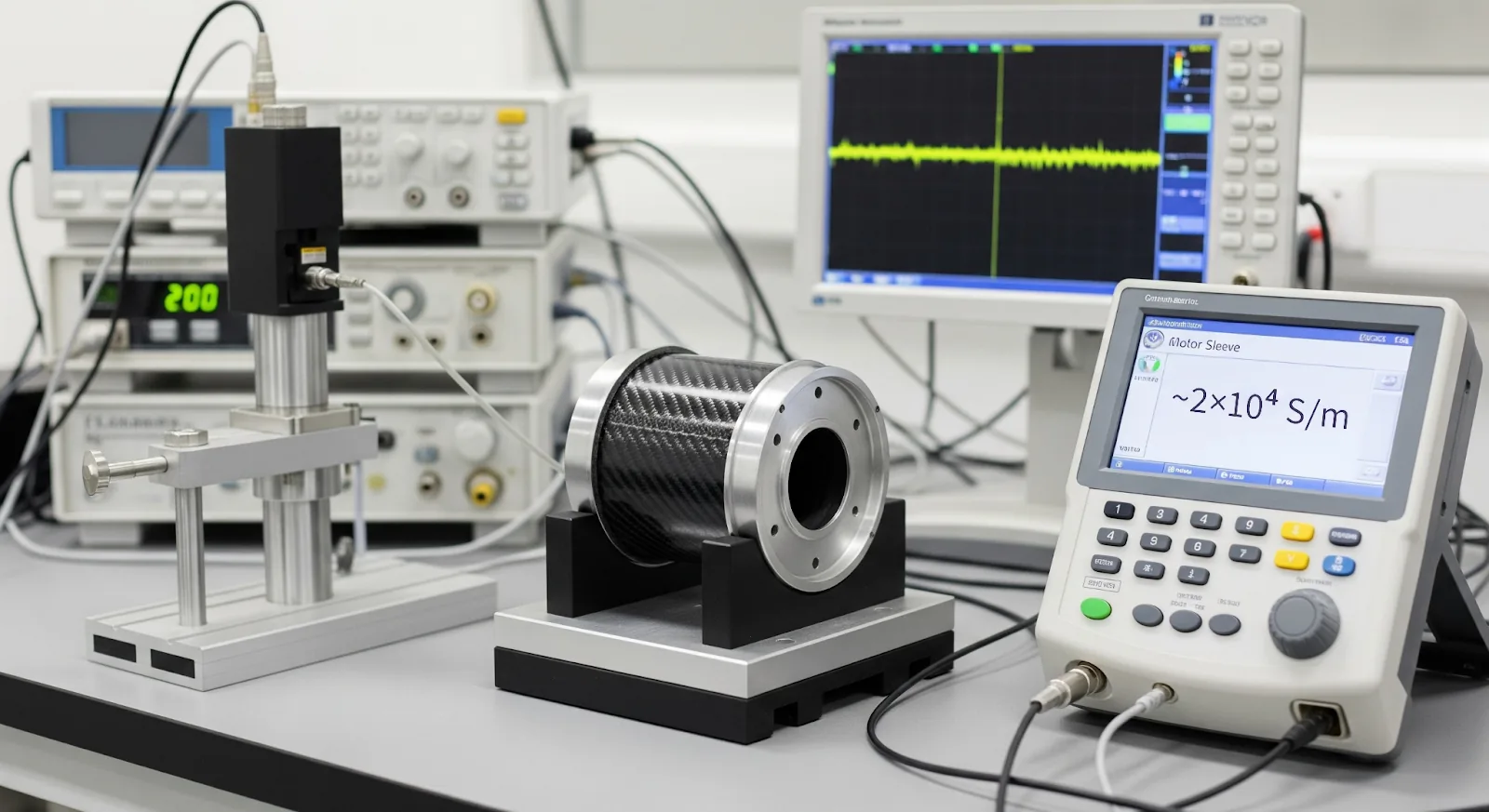

  • Carbon fiber composite: ~2×10⁴ S/m (transverse direction)

When a conductive metal sleeve rotates through the motor's fluctuating magnetic fields, it generates circular currents that produce heat and sap efficiency. Studies have shown these losses can reach 600-700 watts in high-speed motors with metallic sleeves. Carbon fiber? Near-zero eddy current losses.

But there's a trade-off: carbon fiber's thermal conductivity is also low (~0.7-7 W/m·K transverse), compared to metals (16-25 W/m·K). This means heat generated in the magnets can't easily escape radially. However, the massive reduction in heat generation more than compensates for this limitation.

Making the Impossible Possible Through Manufacturing

The challenge with carbon fiber sleeves has never been about material properties – it's been about manufacturing. Traditional composite manufacturing methods were either too slow, too expensive, or unable to achieve the precision required for motor applications.

The Pre-stress Puzzle

Creating effective carbon fiber sleeves requires applying tremendous pre-stress during manufacturing. This compressive load on the magnets must be carefully calculated to ensure:

  • At rest: Magnets remain in compression
  • At max speed: Magnets experience minimal tensile stress
  • Through temperature range: Thermal expansion doesn't create excessive stress

The pre-stress calculation involves solving coupled equations:

σ_prestress = σ_centrifugal(max_speed) + σ_thermal(ΔT) + safety_margin

Typical values range from 50-150 MPa of compressive stress on the magnets.

Modern Manufacturing Methods That Actually Work

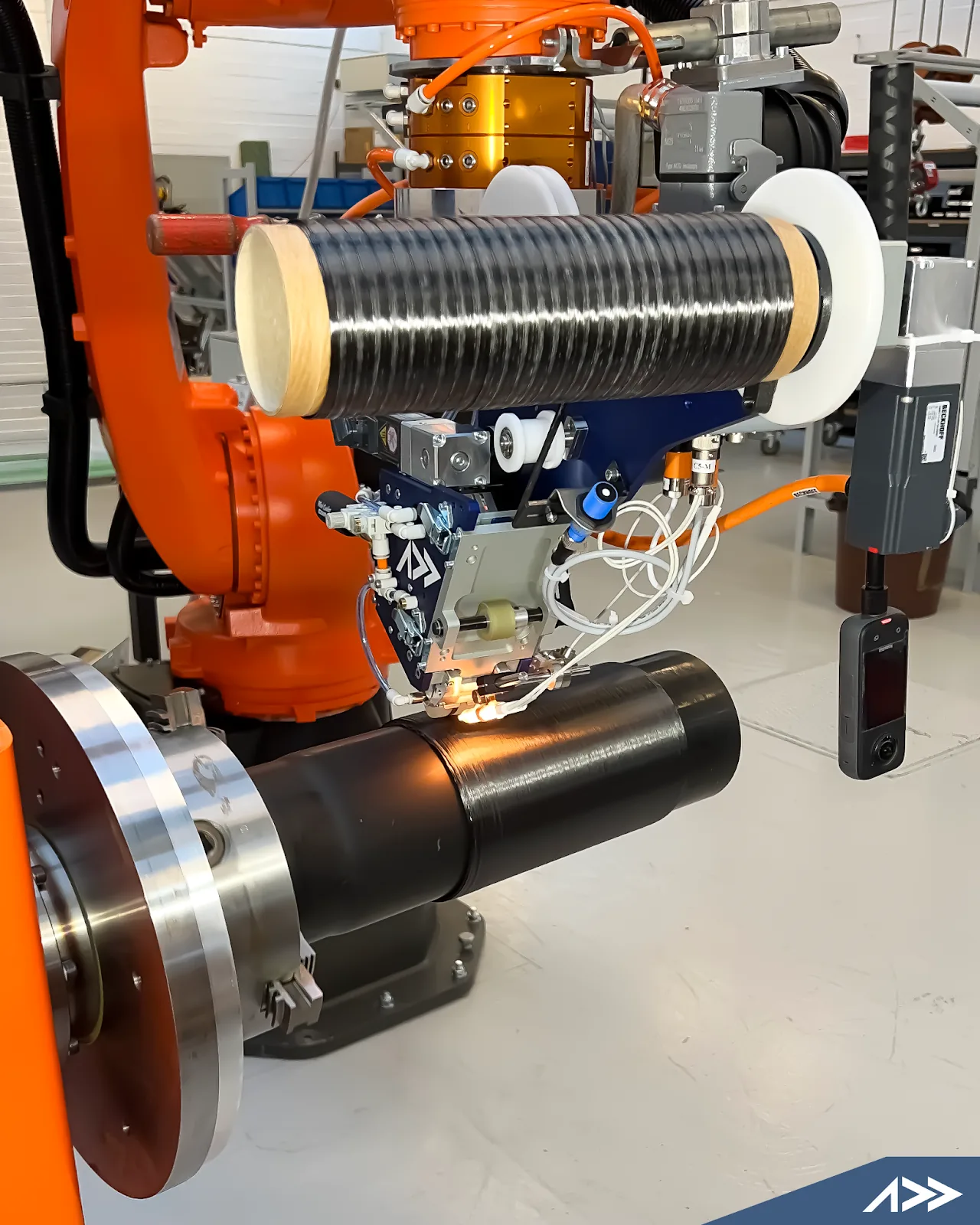

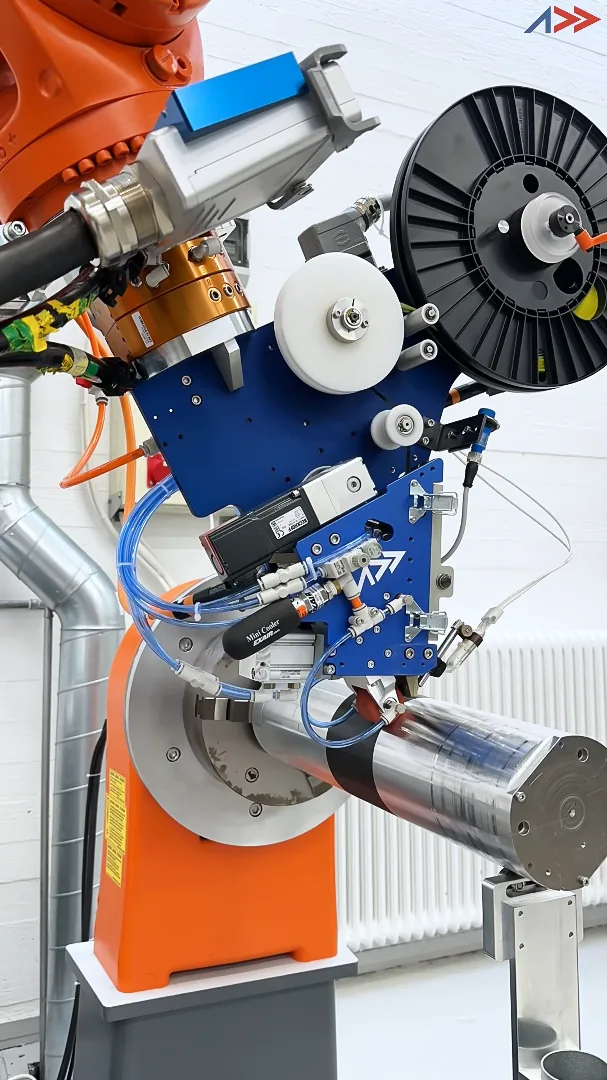

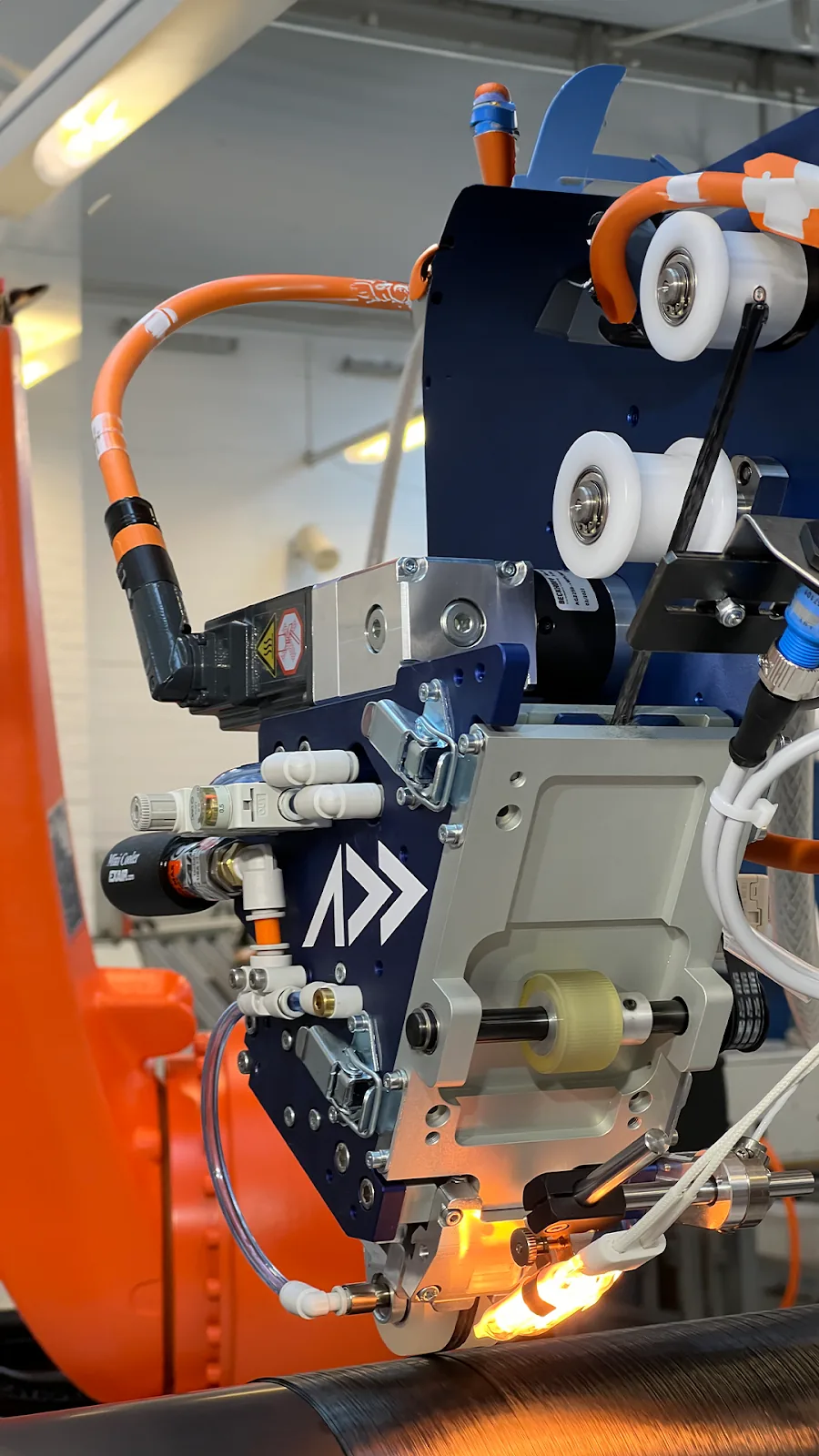

High-tension filament winding and automated fiber placement (AFP) can now produce sleeves with:

  • Precise preload: Fibers wound under tensions up to 200N per tow
  • Minimal thickness: 2-4mm for most applications (vs 5-8mm for metal)
  • Consistent quality: Automated processes eliminate human variability
  • Complex geometries: Tapered sleeves, integrated end caps, local reinforcements

What excites me most is how accessible this technology has become. When I worked on satellite components at ISRO, AFP systems cost millions and required specialized facilities. Today, our AFP-XS system brings this same capability to manufacturers for the price of a luxury car, with systems that can switch between sleeve winding and complex 3D surface placement in minutes.

The manufacturing parameters are critical:

  • Winding tension: 100-200N per tow
  • Temperature: 35-50°C for thermosets, up to 400°C for thermoplastics
  • Compaction force: 500-1000N
  • Speed: Up to 1 m/s layup rate

Real Numbers from Real Applications

Let's look at what carbon fiber sleeves enable in practice:

Performance Metrics That Matter

  • Motor speeds exceeding 30,000 RPM (with some applications reaching 100,000+ RPM)
  • Power density improvements of 30-40% compared to metal-sleeved alternatives
  • Efficiency gains of 2-3% from eliminated eddy current losses
  • Operating temperatures reduced by 20-30°C due to lower losses
  • Rotor tip speeds up to 250 m/s (Mach 0.73!)

Case Studies Worth Studying

Tesla's Carbon-Wrapped Motor: Achieves 20,000+ RPM with a sleeve thickness of just 2.5mm, enabling an air gap reduction of 50% compared to their previous metal-sleeved design. The result? 5% higher power density and 2% better efficiency.

Formula E Racing Motors: Spinning at 30,000 RPM, these motors use carbon sleeves with integrated cooling channels made possible by combining AFP with our SCF3D continuous fiber 3D printing. Temperature reduction: 40°C at peak power.

Industrial Drone Motors: Achieving 50,000 RPM with sleeve weight of just 15 grams. The entire rotor assembly weighs less than a smartphone.

The Future Is Already Spinning

The real revolution isn't just in the material – it's in making this technology accessible. Just as SpaceX democratized access to space, we need to democratize access to advanced composite manufacturing.

What's Next in Sleeve Technology

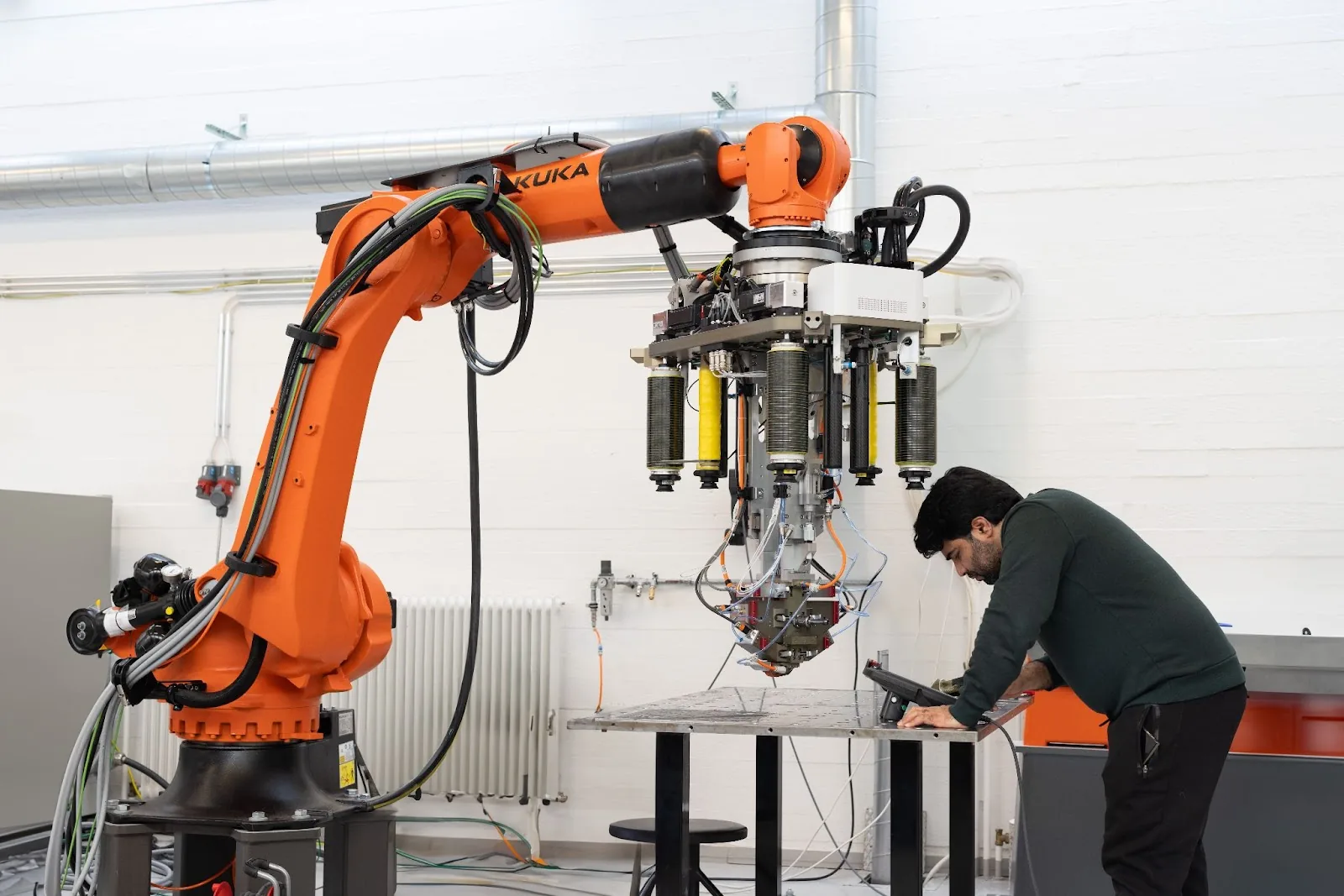

Modern manufacturing cells combining continuous fiber 3D printing with traditional AFP can produce complex motor components that were impossible just five years ago:

  • Integrated cooling channels: 3D printed within the sleeve structure
  • Variable thickness optimization: Thicker at the magnet gaps, thinner elsewhere
  • Embedded sensors: Fiber optic strain and temperature monitoring
  • Hybrid constructions: Carbon fiber with selective glass fiber for tailored properties
  • Smart sleeves: Integrated health monitoring and predictive maintenance

Market Growth That Can't Be Ignored

The numbers tell the story:

  • Carbon fiber sleeve market: Growing at 10.2% CAGR
  • Electric vehicle market: $1.1 trillion by 2030
  • High-speed motor applications: Expanding into aerospace, marine, industrial automation
  • Cost reduction: 40% decrease in carbon fiber prices over the last decade

Your Path to Carbon Fiber Sleeve Manufacturing

As someone who's witnessed the transformation of impossible-to-access space technology into democratized manufacturing tools, I'm convinced that carbon fiber motor sleeves represent more than just a material substitution. They're a glimpse into a future where advanced materials and accessible manufacturing converge to enable previously impossible performance.

Getting Started Is Easier Than You Think

The beauty of modern composite manufacturing is that you don't need to invest millions to begin. At Addcomposites, we've structured our offerings to match your journey:

1. Explore and Validate

  • Start with simulation in our AddPath software
  • Validate your design with comprehensive FEA integration
  • Optimize fiber paths and winding angles before cutting any material
  • Investment: Just your time and creativity

2. Prototype and Prove

  • Rent our AFP-XS system for as low as €3,499/month
  • Access both filament winding and continuous fiber 3D printing capabilities
  • Produce prototypes in days, not months
  • Test multiple design iterations without massive capital investment

3. Scale and Succeed

  • Upgrade to our AFP-X for production volumes
  • Integrate multiple systems for lights-out manufacturing
  • Add inline inspection and quality control
  • Seamless transition from prototype parameters to production

What You Get With Addcomposites

  • One Platform, Multiple Processes: Switch between AFP, filament winding, and SCF3D printing on the same system
  • Complete Ecosystem: From design software (AddPath) to production hardware (AFP-XS/X) to quality control
  • Risk-Free Starting Point: Monthly rentals mean you can validate your business case before major investment
  • Expert Support: Our team has hands-on experience from space-grade to automotive applications
  • Proven Technology: Systems already producing parts for Tesla, aerospace primes, and Formula racing

Ready to revolutionize your motor design? Whether you're looking to produce carbon fiber sleeves for 50,000 RPM drone motors or 20,000 RPM EV motors, we have the tools and expertise to make it happen.

Start with a free consultation to discuss your application, or download our motor sleeve design guide to dive deeper into the technical details. For those ready to take the leap, our AFP-XS rental program gets you manufacturing in weeks, not years.

The next time you see an electric vehicle silently accelerating with breathtaking speed, remember that this performance is enabled by a thin layer of carefully placed carbon fibers, spinning at speeds that would have been engineering fantasy just a decade ago.

The revolution isn't coming – it's already spinning at 20,000 RPM. The question is: will you be part of it?

Want to see these systems in action? Schedule a live demo or visit our applications lab in Finland to witness the future of composite manufacturing firsthand.
