In the sophisticated realm of composite manufacturing, the Automated Fiber Placement (AFP) process stands out for its precision and efficiency in creating complex structures. However, this advanced technique encounters a nuanced challenge that could undermine the integrity of the final composite part: the contamination of the compaction roller with release agent residues. This issue arises due to the roller's design, which, while ensuring tape adhesion, inadvertently picks up and redistributes release agent applied on the mold surface, potentially compromising layer bonding. Addressing this challenge demands a multifaceted approach, blending traditional practices with innovative strategies to ensure the flawless execution of AFP processes. This exploration delves into the problem and examines potential solutions, from the use of release films and edge taping methods to the minimized application of release agents and the imperative for ongoing technological innovation.
Problem Statement:
In the realm of advanced composites manufacturing, Automated Fiber Placement (AFP) represents a pinnacle of precision and efficiency, enabling the creation of complex structures with high-performance materials. A critical aspect of this process involves the application of release agents to the mold surface, ensuring the seamless release of the composite part once cured. However, the AFP process introduces a nuanced challenge that complicates this seemingly straightforward task.

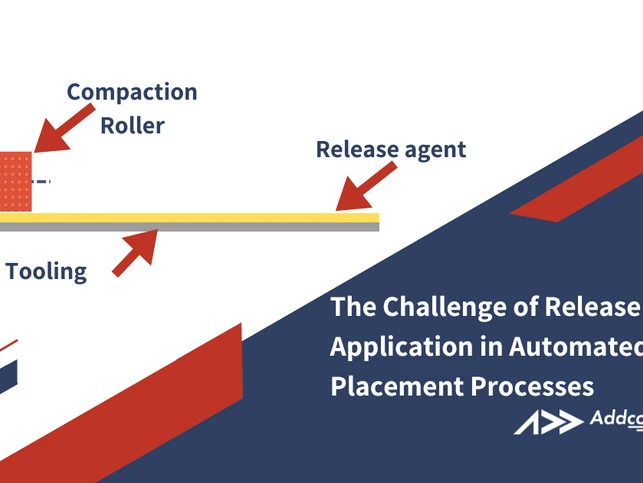

The compaction roller, a central component of the AFP machine, is designed wider than the tape width. This design choice is strategic, aimed at ensuring the tape adheres firmly to the mold without slipping, a necessity for the accuracy and integrity of the composite layup. While effective for its intended purpose, this design introduces a significant complication: the accumulation of release agent residues on the compaction roller.
As the roller traverses the mold surface, it inevitably picks up release agent applied to the mold. This phenomenon occurs because the roller extends beyond the edges of the tape, coming into direct contact with areas of the mold treated with release agent. Over successive passes, the roller can become contaminated with this agent, leading to a problematic cycle where the roller itself becomes a medium for transferring release agent residues back onto the tape or subsequent layers. This contamination can compromise the bonding between layers, affect the composite's structural integrity, and lead to defects in the final product.
The issue is further compounded by the necessity of a meticulously applied release agent. The standard approach of liberally applying release agent to ensure easy demolding is not viable in AFP processes. An excess of release agent, especially types that are prone to transfer or migration, can exacerbate the issue, leading to increased contamination risks. Consequently, the selection and application method of the release agent in AFP processes cannot follow the traditional paradigms used in other forms of composites manufacturing.
Proposed Solutions
Addressing the challenge of release agent contamination in Automated Fiber Placement (AFP) processes requires innovative strategies that balance the need for effective mold release without compromising the integrity of the composite layup. The strategies you've outlined present a spectrum of solutions, each with its benefits and limitations. Here's an exploration of these strategies, including their potential advantages and challenges:
1. Use of Release Films
Advantages:
Physical Barrier: Release films act as a physical barrier between the mold surface and the composite material, eliminating the need for chemical release agents in direct contact with the composite material.
Clean Removal: These films can be designed to peel away cleanly from the cured composite, minimizing the risk of surface defects.
Challenges:
Conformability: Applying release films on complex or curved surfaces can be difficult, limiting their use primarily to flat or gently contoured molds.
Application Difficulty: Ensuring a wrinkle-free application on non-flat surfaces requires significant skill and may not always be feasible, especially for intricate mold geometries.
2. Edge Taping Method
Advantages:
Localized Protection: Taping the edges of the laminate can protect these critical areas from contamination during the initial layup stages.
Simplicity: This method uses readily available materials and can be implemented without special equipment.
Challenges:
Cumbersome Process: The process of applying and removing tape, as well as applying and curing release agent on the laminate edges, is time-consuming and labor-intensive.
Potential for Inconsistency: Ensuring consistent application and removal of tape across different parts and production cycles may be challenging.
3. Minimized Release Agent Application & Compaction Roller Cleaning
Advantages:
Reduced Contamination: Applying the smallest necessary amount of release agent and allowing it to fully dry can minimize the potential for transfer to the compaction roller.
Maintained Efficiency: Regular cleaning of the compaction roller during the AFP process can help prevent buildup of release agent, maintaining the roller's effectiveness and preventing contamination of subsequent layers.
Challenges:
Process Interruption: Regular cleaning of the compaction roller may interrupt the AFP process, potentially affecting production throughput.
Operational Complexity: Implementing a system for regular roller cleaning adds complexity to the AFP operation, requiring additional equipment or manual intervention.
4. Innovative Solutions and Recommendations
Given the challenges and limitations of the strategies discussed, a combination of approaches, along with ongoing innovation, may offer the best path forward:
Development of New Release Agent Formulations: Creating release agents that bond more firmly to the mold surface while being less prone to transfer could mitigate the problem.
Advanced Roller Designs: Designing compaction rollers that minimize direct contact with treated mold areas or incorporate features that reduce the likelihood of picking up release agents.
Process Optimization: Detailed studies to optimize the amount and type of release agent, application methods, and drying times tailored specifically for AFP processes.
Automation of Cleaning Processes: Integrating automated roller cleaning mechanisms within the AFP machine could minimize downtime and ensure consistent cleaning without significantly disrupting the manufacturing process.
Each of these strategies presents its own set of challenges and opportunities for innovation. Collaboration between material scientists, process engineers, and equipment manufacturers will be crucial in developing effective solutions that enhance the efficiency and quality of AFP-manufactured composite materials.
Implications:
This challenge necessitates a reevaluation of release agent selection and application strategies tailored specifically for AFP. The ideal release agent for AFP processes must possess characteristics that prevent it from being easily transferred or picked up by the compaction roller, while still providing effective release properties. Additionally, application methods must be refined to minimize the potential for roller contamination, possibly through targeted application techniques or the development of new roller designs that minimize contact with treated mold areas.
Conclusion:
The nuanced challenge of release agent application in AFP processes underscores the need for innovation and adaptation in composite manufacturing techniques. Addressing this issue is not merely a matter of improving material properties or refining application methods; it represents a critical intersection of engineering design, material science, and process optimization. Successfully overcoming this hurdle is essential for advancing the capabilities and applications of AFP technology, ensuring that the composites industry can continue to push the boundaries of what is possible.
