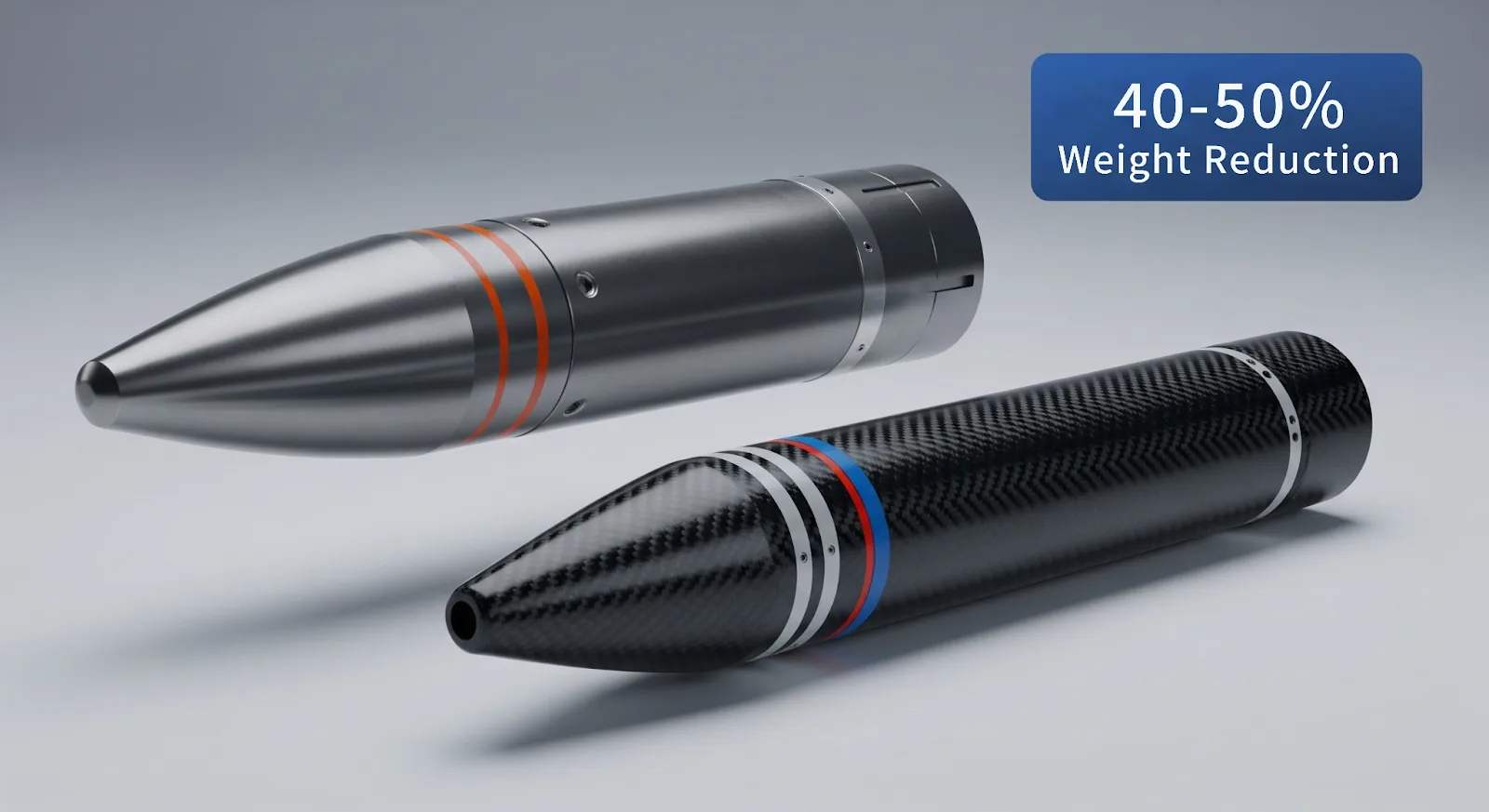

The most immediate and impactful benefit of carbon fiber reinforced polymer (CFRP) missile casings is their exceptional weight reduction. Modern CFRP casings deliver a 40-50% weight reduction compared to aluminum alternatives, fundamentally altering the performance equation for guided munitions.

This weight savings translates directly into operational advantages. According to established aerospace principles, every kilogram removed from a missile increases its effective range by approximately 16 kilometers. The U.S. Army's Precision Strike Missile (PrSM) program exemplifies this transformation – by utilizing a lighter, smaller-diameter composite casing, two PrSMs can fit into the same launch pod that previously held only one ATACMS missile, instantly doubling the firepower of existing HIMARS and MLRS launchers.

The Technical University of Munich demonstrated these benefits in rocket module design, achieving a 40% weight reduction by replacing aluminum with CFRP/PEEK composites. Similarly, Boeing's 787 Dreamliner, with 50% CFRP components, achieves 20% fuel savings through weight reduction – principles that apply directly to missile performance.

As missiles push into hypersonic speeds exceeding Mach 5, thermal management becomes the dominant design challenge. Standard carbon fibers maintain structural integrity until decomposition temperatures around 650°C, but advanced carbon-carbon (C-C) composites have been tested at temperatures exceeding 2760°C under extreme pressures.

MATECH's ultra-high-density C/ZrOC ceramic matrix composites demonstrate 20 times better ablation resistance than conventional carbon-carbon composites. These materials achieve bulk densities exceeding 2.20 g/cc, approaching the theoretical limit of graphite at 2.26 g/cc. For hypersonic missile casings, this means the ability to withstand the intense friction heating that would cause conventional metals to lose structural integrity, melt, or vaporize.

The strategic implications are profound. An adversary's ability to develop, source, and manufacture these advanced C-C, CMC, and ultra-high-temperature ceramic materials directly indicates their capacity to field credible hypersonic threats. North Korea's recent hypersonic missile test claims use of "carbon fiber compounds for engine casings," highlighting the global adoption of these technologies.

The economics of CFRP missile casings present both challenges and opportunities. Aerospace-grade carbon fiber costs $85,000-220,000 per metric ton, compared to industrial grades at $25,000-95,000 per ton. Aluminum, by contrast, costs approximately $1,800 per ton, making CFRP roughly 45 times more expensive by weight.

The polyacrylonitrile (PAN) precursor requires 2 kg of material to produce 1 kg of carbon fiber, with energy-intensive processing at temperatures up to 5,500°F. A typical CFRP component costs $28,000 versus $18,000 for aluminum equivalents.

However, lifecycle analysis reveals compelling long-term benefits. Boeing's 787 saves $12 million in fuel costs over 25 years through weight reduction. For missiles, this translates into extended range, increased payload capacity, or the ability to launch from smaller platforms. The PrSM program's ability to double launcher capacity effectively halves the cost per deployed munition.

‍

Lightweight CFRP casings are fundamental enablers of modern drone warfare and loitering munitions. The Pentagon's Perdix drones, weighing just one pound each, utilize 3D-printed Kevlar and carbon-fiber construction to survive high-speed ejection from F-16 flare dispensers. This allows a single aircraft to deploy 30+ networked drones per mission.

AeroVironment's Switchblade 300 epitomizes this capability. With a total munition weight of just 1.68 kg, the entire system fits in a military backpack and deploys in under two minutes. The UVision Hero-120, at 14.5 kg with a 4.5 kg warhead, provides tactical units with organic anti-armor capability previously requiring artillery or air support.

The SkyDefense CobraJet interceptor features a 6.5-foot carbon fiber airframe achieving 200 mph speeds while carrying 16 air-to-air rockets for counter-swarm operations. These systems demonstrate how CFRP enables the "democratization" of precision airpower, making capabilities once exclusive to military superpowers accessible to smaller forces.

Beyond weight savings, composites provide inherent stealth characteristics. The non-conductive fiber within a polymer matrix gives CFRP lower intrinsic radar reflectivity than metallic structures. More importantly, manufacturers can tailor the material's properties by embedding radar-absorbing materials directly into the composite matrix during fabrication.

The Kongsberg/Raytheon Naval Strike Missile (NSM) explicitly uses "state-of-the-art design and use of composite materials" to achieve "sophisticated stealth capabilities." The F-35 Lightning II incorporates 35% composites as part of its low-observable design. The AGM-158 JASSM cruise missile extensively uses composite materials throughout its airframe, contributing to 30% weight reduction and 50% cost savings compared to traditional designs.

Fiber orientation and layup patterns can be optimized to scatter radar waves away from the source, further reducing radar cross-section. This allows subsonic missiles like the NSM to compress enemy reaction time by flying closer before detection.

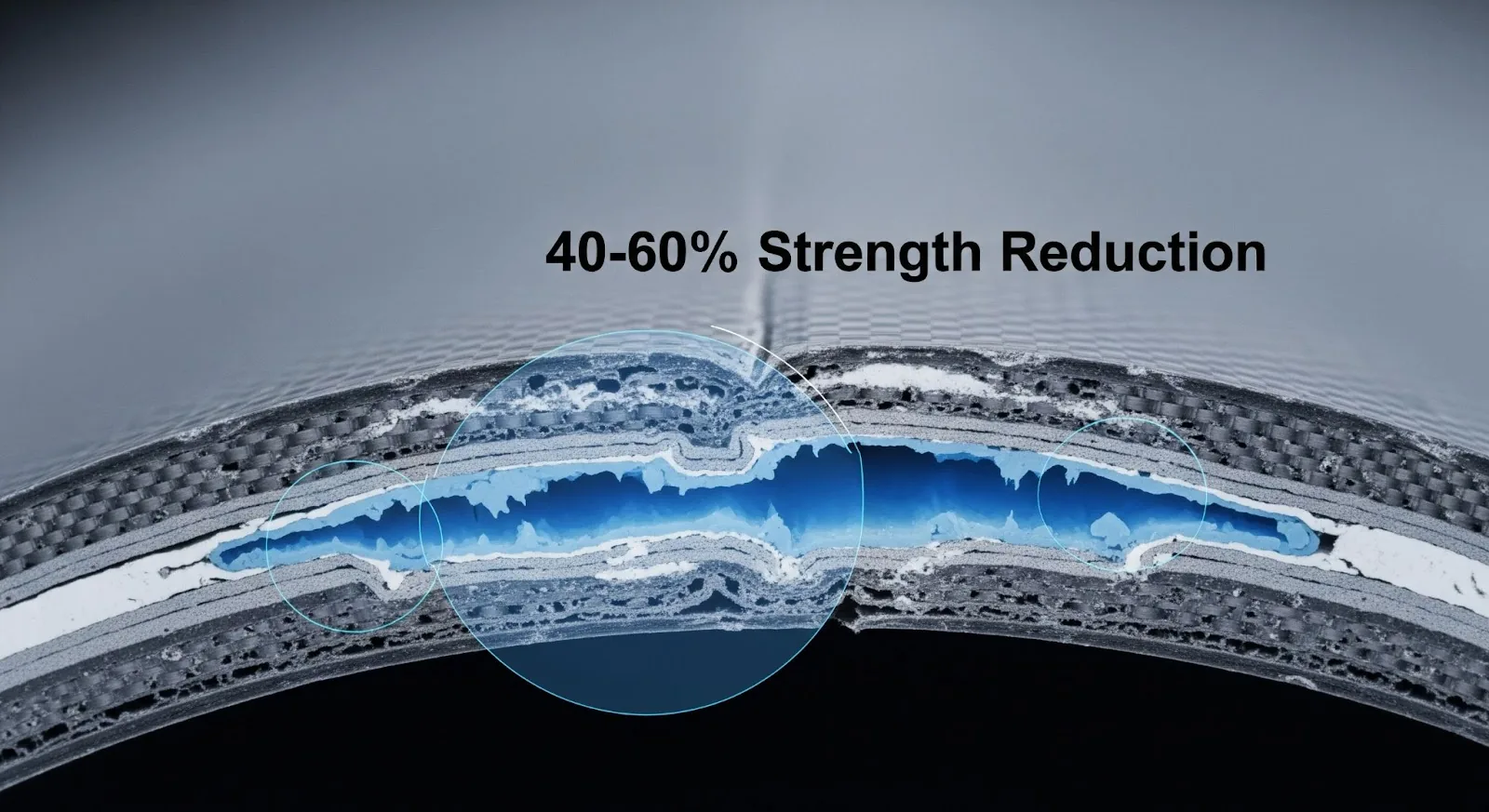

Despite compelling advantages, CFRP missile casings face significant limitations. Impact damage can reduce composite strength by 40-60%, with "Barely Visible Impact Damage" (BVID) creating internal delaminations that compromise structural integrity without visible signs. Unlike metals that bend or dent, composites exhibit brittle failure modes that can be catastrophic.

Field repairs present particular challenges. While metals can be welded or patched relatively easily, CFRP repairs require specialized procedures, controlled curing temperatures, and extensive quality control. This creates a bifurcation in logistics philosophy:

• High-value systems require depot-level maintenance infrastructure with clean rooms, autoclaves, and specialized technicians
• Attritable systems are treated as disposable, demanding continuous production rather than repair capability

The Lockheed Martin LRASM program validated that composite airframes can withstand violent launch conditions, with test reports noting the missile exited VLS canisters "without damaging the missile coatings or composite structure" – proving composites aren't inherently fragile but require different handling protocols.

Perhaps the most critical strategic consideration is supply chain concentration. Only three companies manufacture aerospace-grade carbon fiber globally, with just one (Hexcel) based in the United States. Japanese manufacturers Toray and Teijin control significant market share, requiring METI approvals for military applications.

The Department of Defense has identified this as a critical vulnerability: "Single foreign sources of unique and proprietary carbon fibers from Japan and Europe represent considerable DoD supply chain vulnerabilities." The supply chain traces back to petroleum-based acrylonitrile for PAN precursor production, creating dependencies on politically volatile regions.

Export controls under ITAR and EAR regulations classify high-performance carbon fiber (exceeding specific modulus of 10.15×10⁶ m) as controlled items. The "Deemed Export Rule" extends these restrictions to technical data, complicating international defense cooperation even with allies.

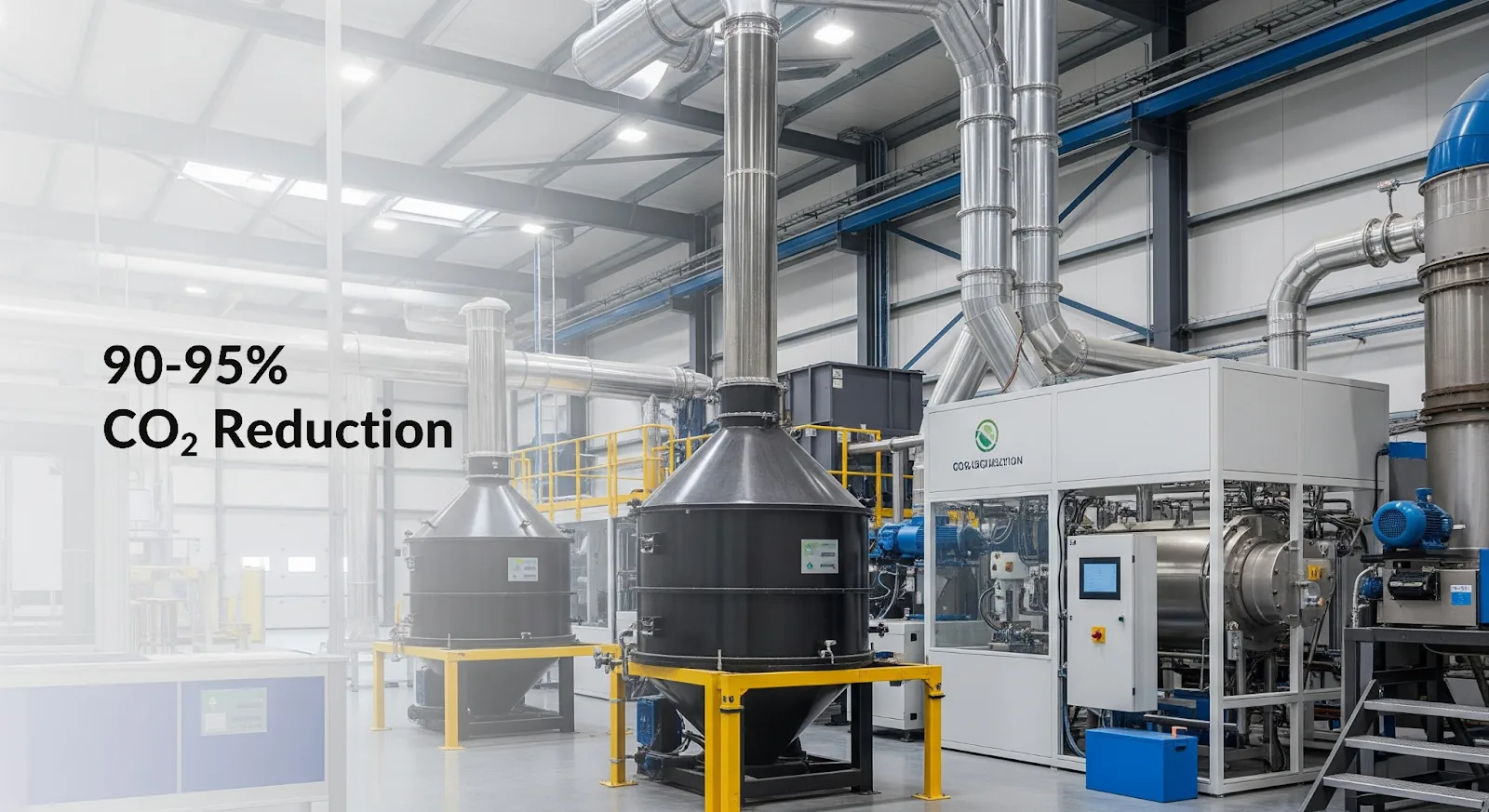

Environmental considerations increasingly influence defense procurement. CFRP composites are non-biodegradable and can persist for over 50 years, but recycling technologies show promise. Advanced recycling can reduce CO₂ emissions by 90-95% compared to virgin production, with cost savings up to 70%.

The University of Delaware's TuFF process achieves 100% property retention in recycled carbon fiber applications. Pyrolysis, the leading recycling method, heats composite waste to ~500°C in oxygen-free environments, recovering intact carbon fibers retaining over 90% of original strength. The energy required for recycled carbon fiber production is one-sixth that of virgin fiber.

This creates strategic opportunity – nations mastering the composite recycling "circular economy" reduce dependence on vulnerable supply chains while meeting environmental commitments. The European Union's policies encouraging carbon fiber recycling while restricting landfill disposal point toward future regulatory trends.

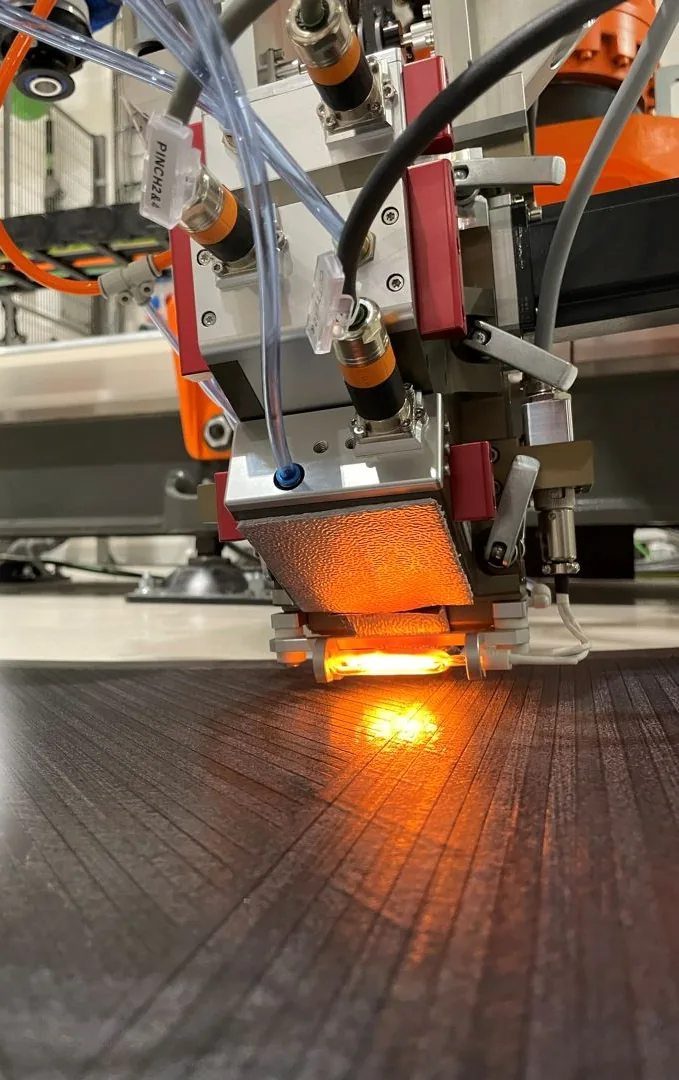

The democratization of composite manufacturing technology represents a paradigm shift as significant as the materials themselves. Companies like AddComposites are breaking down traditional barriers with systems starting at €3,499/month rental, compared to traditional AFP systems costing millions.

Their modular approach – from educational AFP-XS Lite systems to production-ready AFP-X configurations – enables organizations to start small and scale up. With deployment in 4 weeks versus 6-12 months for traditional systems and compatibility with existing industrial robots, the technology becomes accessible to smaller defense contractors and research institutions.

This accessibility accelerates innovation cycles and enables rapid prototyping of new munition designs. The ability to process thermoset, thermoplastic, and dry fiber materials on the same equipment provides unprecedented flexibility for experimental programs.

Carbon fiber composite missile casings represent more than incremental improvement – they're enabling technologies for new operational concepts. From hypersonic strike weapons to attritable drone swarms, composites provide the performance margins that make these systems possible.

The challenges are real: higher costs, repair complexity, and supply chain vulnerabilities require careful management. However, the operational advantages – doubled firepower, extended range, hypersonic capability, and stealth characteristics – far outweigh these limitations for most applications.

As manufacturing technology becomes more accessible and recycling capabilities mature, we're witnessing a fundamental transformation in defense capabilities. The nations that master the complete composite ecosystem – from precursor chemistry through automated manufacturing to end-of-life recycling – will define the future of military power projection.

The carbon fiber revolution in missile design isn't coming – it's here. The question isn't whether to adopt these technologies, but how quickly defense establishments can integrate them to maintain competitive advantage in an rapidly evolving threat environment.
