The B-2 Spirit stealth bomber has returned to international headlines following recent operational deployments, reminding the world of its unique capabilities. This renewed interest presents an opportunity to examine the revolutionary composite manufacturing technologies that made this aircraft possible – and how dramatically these technologies have evolved since the bomber's development began in the late 1970s.

Understanding the B-2's construction is more than an exercise in aerospace history. It's a window into how advanced manufacturing can create strategic advantages, and how the democratization of these technologies could reshape global aerospace capabilities. The story of the B-2 is fundamentally a story about carbon fiber composites and the manufacturing innovations required to transform them into an aircraft that remains unmatched in capability decades after its first flight.

The B-2 Spirit represents one of the most significant applications of composite materials in military aviation history. According to the analysis, the airframe is constructed almost entirely of carbon fiber composites, with development beginning in the late 1970s under the Advanced Technology Bomber (ATB) program. The first flight occurred on July 17, 1989, marking the culmination of over a decade of revolutionary development work ¹.

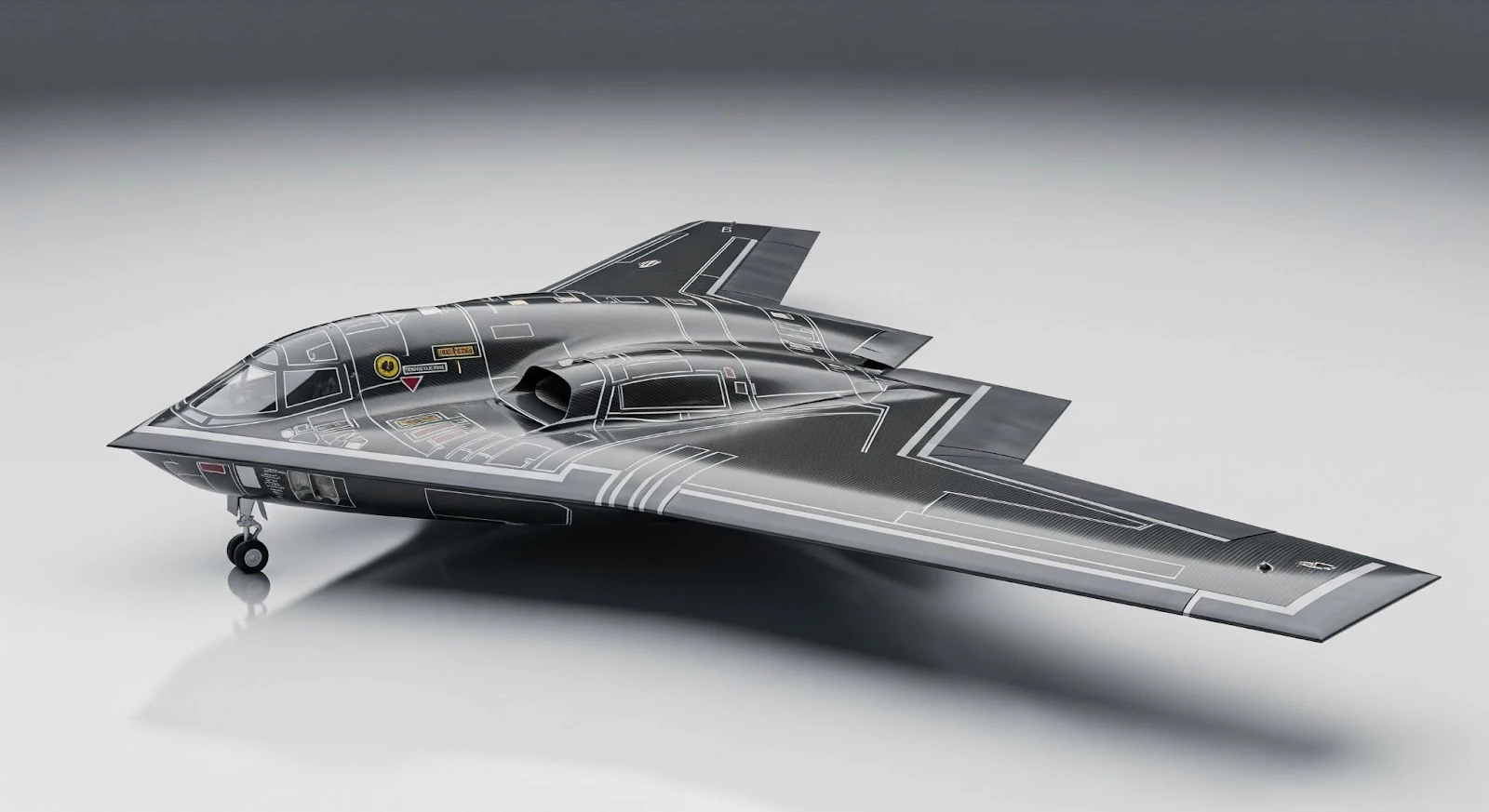

What makes the B-2 unique isn't just its flying wing design – it's the fact that this design would have been impossible without composite materials. The aircraft incorporates over 10,000 composite components in its contoured airframe, utilizing manufacturing processes that were pioneering for their time. The entire fuselage, with the exception of titanium composite used in the main beam and engine compartment, is composed of carbon fiber composite, potentially accounting for around 50% of the aircraft's total structural weight ².

Northrop Grumman, as the prime contractor, faced an unprecedented challenge: they had to "invent all components from scratch," including specialized tools, software laboratories, composite materials, unique test equipment, and advanced 3-D modeling and computer systems. This wasn't simply building an aircraft – it was creating an entire manufacturing ecosystem that didn't previously exist.

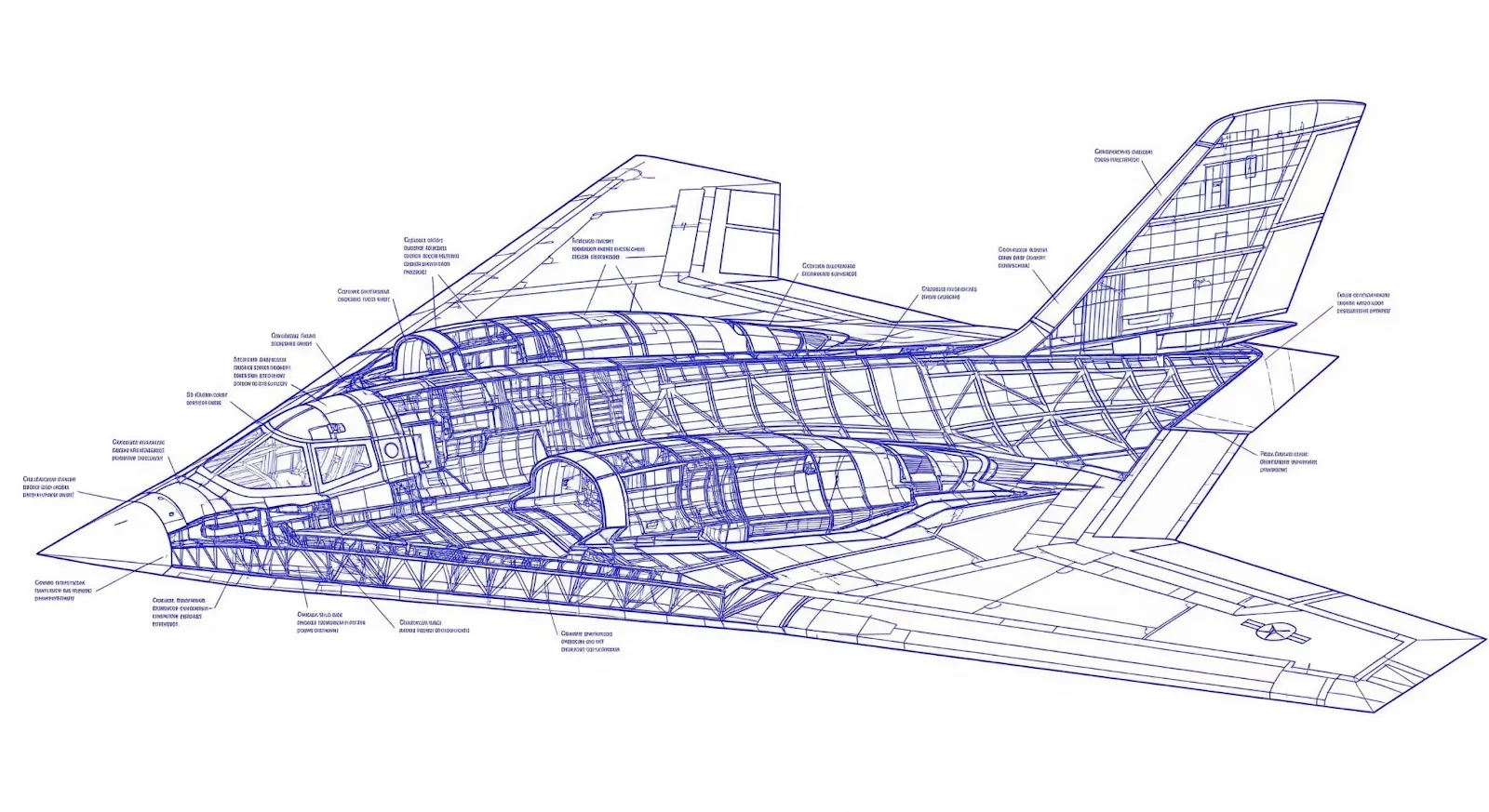

The B-2's stealth capabilities are intrinsically linked to its composite construction. The airframe is predominantly constructed from carbon-graphite composite materials that are stronger than steel yet lighter than aluminum. The majority of the aircraft's structure utilizes graphite/epoxy composites with honeycomb skins and internal structure, providing significant radar energy absorption capabilities ¹.

Material Specifications and Strategic Design

The composite materials serve a dual purpose: structural integrity and electromagnetic management. The outer skin is described as primarily a "non-conductive carbon-graphite composite mixed with titanium," specifically designed to absorb radio energy with optimum efficiency. This isn't merely about achieving lightweight strength; the composites are inherently designed to absorb radar energy, integrating structural integrity with stealth functionality ².

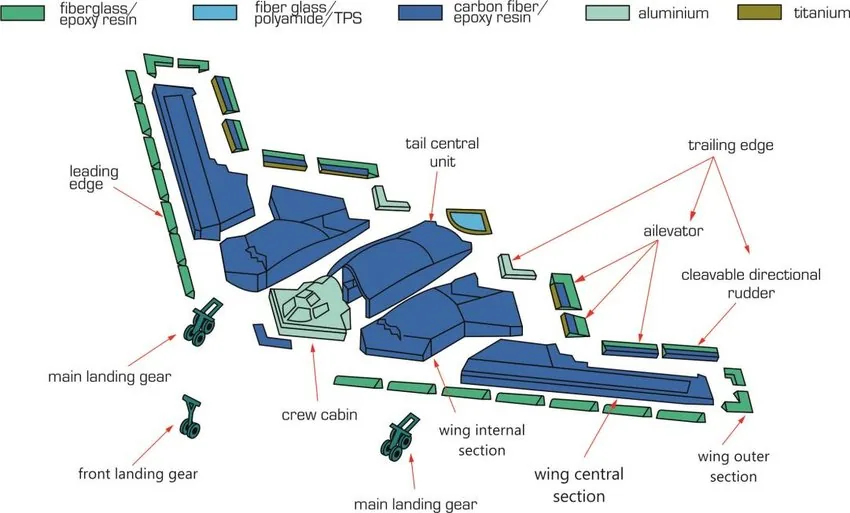

Different zones of the aircraft use different materials based on specific requirements:

• Carbon Fiber Reinforced Polymers (CFRP): Used throughout the entire fuselage for its lightweight, high strength-to-weight ratio, and radar absorption properties
• Titanium Composites: Strategically placed in the main beam and engine compartment for high thermal resistance
• Radar-Absorbing Materials (RAM): Applied as coatings on the outer surface, including specialized "iron ball paint" and later, "alternate high-frequency material"

For high-temperature areas around the engines, advanced thermoset resins like bismaleimides or specialized epoxies would be necessary to maintain both structural integrity and stealth properties – though specific material designations remain classified ¹.

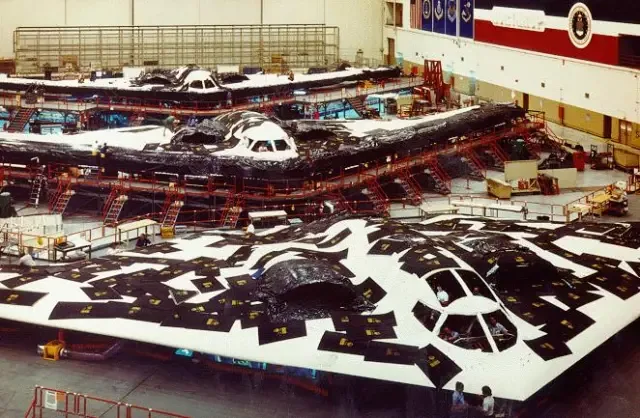

The fabrication of the B-2's composite airframe involved highly advanced and custom-developed manufacturing processes. The scale of innovation is best illustrated by Northrop Grumman's establishment of an Integrated Composites Center in Pico Rivera, California, built in an abandoned Ford Motor factory as part of a $1.2 billion investment in new technology – believed to be one of the largest composites fabrication facilities in the industry at the time ¹.

‍

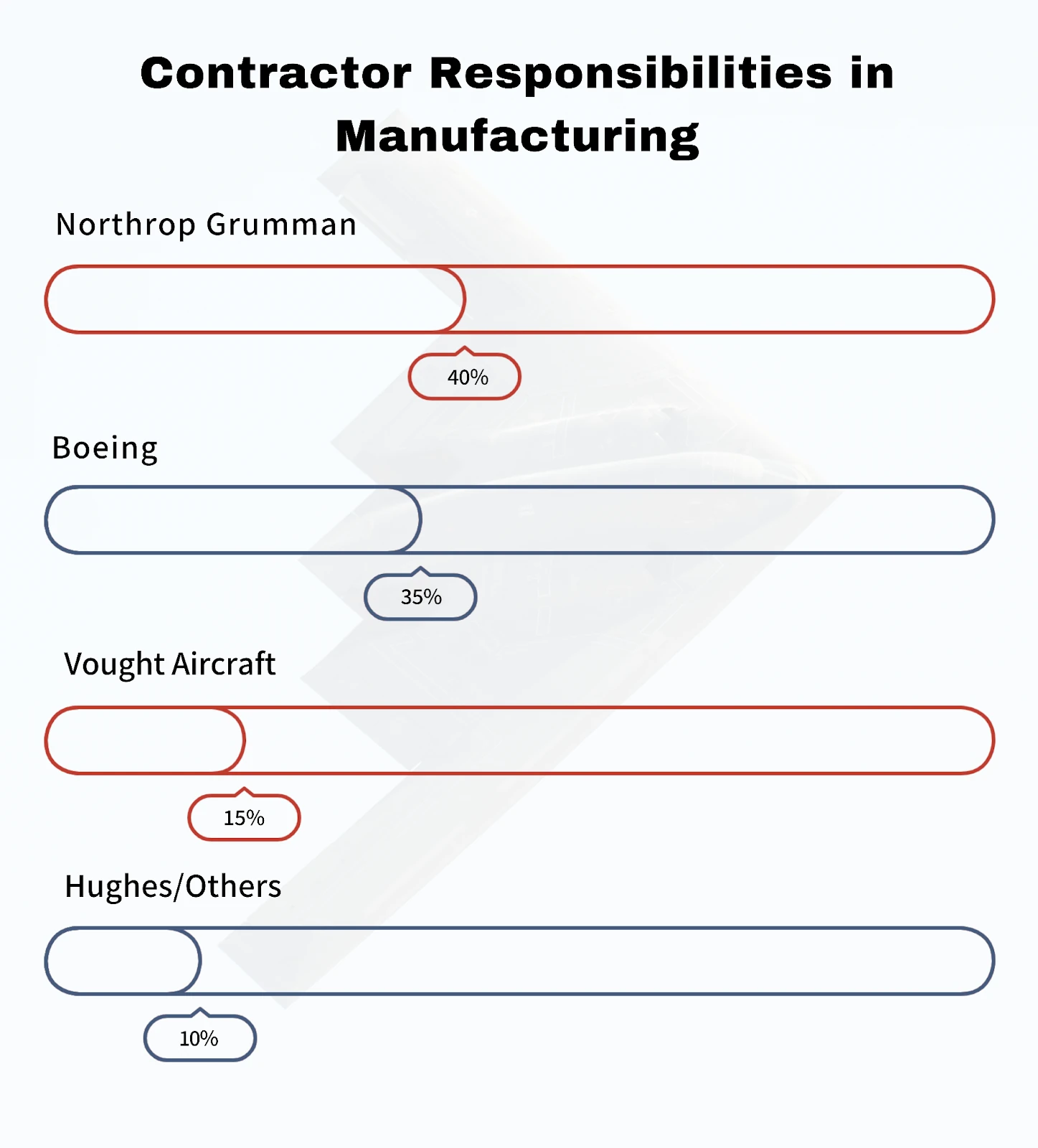

The Industrial Team

The B-2 program involved a complex network of contractors and suppliers, with more than 6,000 companies and 40,000 personnel from 46 states:

• Northrop Grumman (Prime Contractor): Overall system design and integration, forward center-sections including cockpit
• Boeing Military Airplanes: Manufactured the outboard wing sections (65-foot-long) and aft-center sections (50-foot-long), considered the largest structural aircraft parts ever made from composites at the time
• Vought Aircraft Industries: Key contractor for composite component manufacturing
• Hughes Radar Systems Group: Provided specialized systems and components

Revolutionary Manufacturing Processes

The manufacturing techniques developed for the B-2 included:

Automated Production Systems: Engineers developed automated production systems including automated tape laying systems, computer-controlled cutting equipment, and precision molding processes. The composite parts were cured in autoclaves at approximately 350 degrees Fahrenheit and 100 pounds per square inch pressure.

Direct CAD-to-Manufacturing: In a significant departure from traditional practices, B-2 engineers designed and fabricated final production tooling directly from three-dimensional computer-aided design (CAD) system data, bypassing development tooling entirely ¹.

Unprecedented Tolerances: The B-2 required extraordinary manufacturing tolerances due to stealth requirements. Structures had to be fabricated to exceptional quality standards and assembled to extraordinary tolerances. The aircraft is assembled with unusually tight engineering tolerances to avoid leaks of fluids that could increase radar signature.

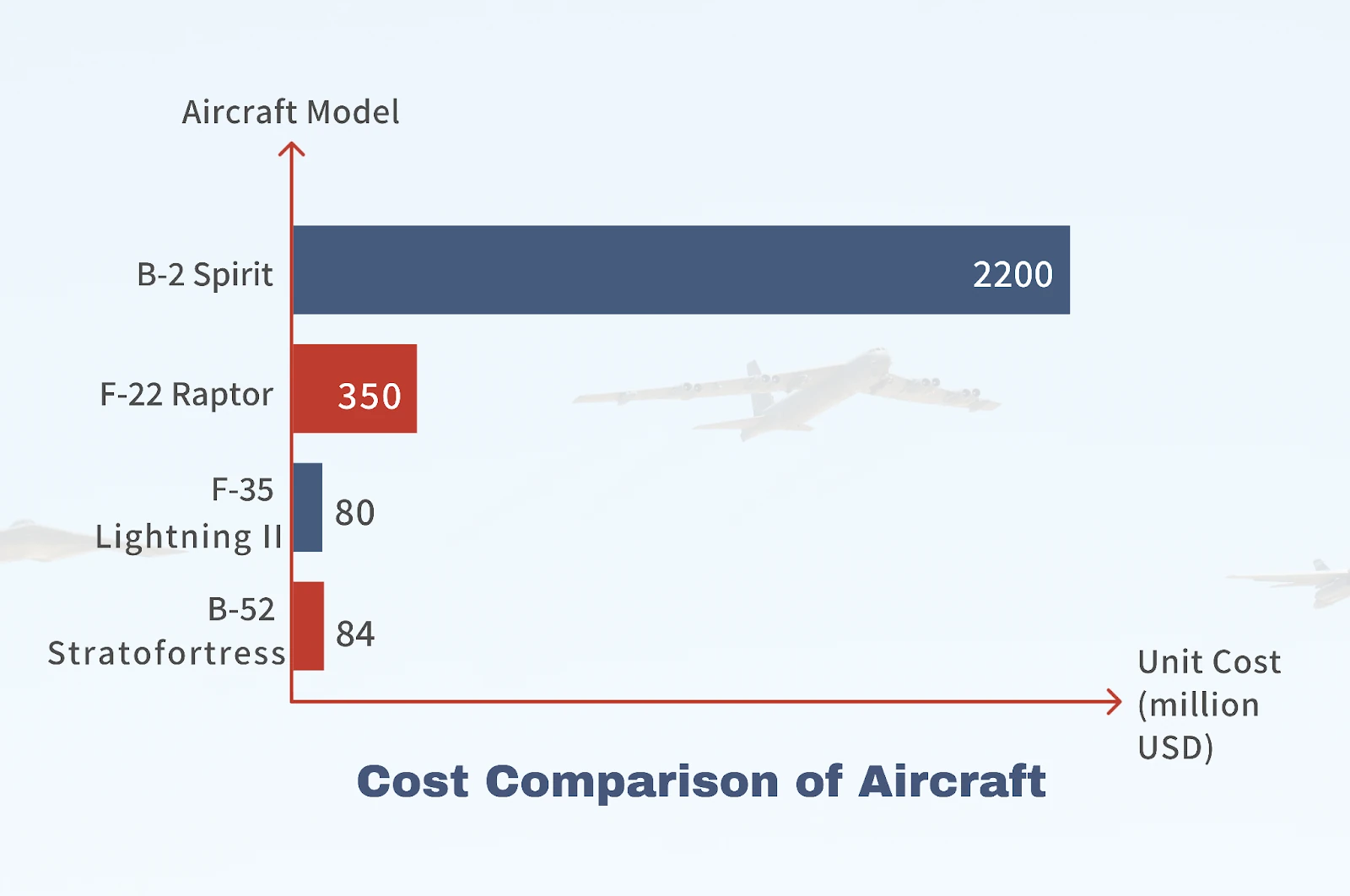

The B-2's unit cost of approximately $2.2 billion (including development costs amortized over the 21-aircraft production run) makes it the most expensive military aircraft ever built. Understanding this cost requires examining several factors:

Development vs. Production

The program's astronomical costs stem from several sources:

1. Inventing Everything from Scratch: Northrop Grumman had to develop not just the aircraft, but entire new categories of materials, tools, and processes

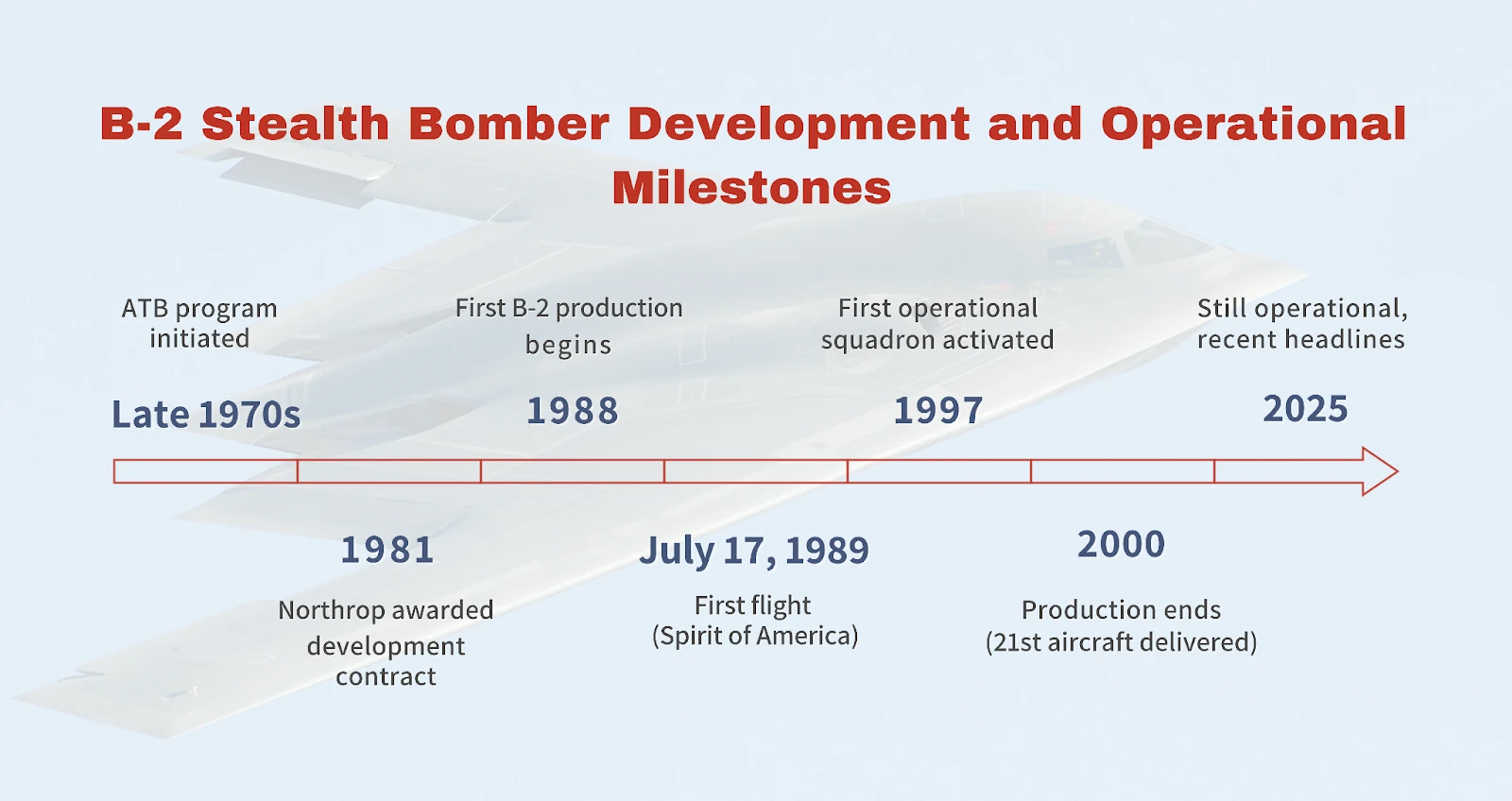

2. Limited Production Run: Only 21 aircraft were built between 1988 and 2000, meaning development costs were spread across a tiny fleet
3. Classification Requirements: The need for extreme secrecy added layers of cost to every aspect of development and production
4. Manufacturing Complexity: Large-scale manufacturing of layered composite materials was technologically immature and high-risk during the early program phases

Ongoing Operational Costs

The B-2's operational costs remain significant due to its specialized maintenance requirements:

• RAM coatings require "constant reapplication" and "many hours" of post-flight examination
• Climate-controlled hangars are necessary to maintain the sophisticated coatings
• Specialized crews dedicate extensive time examining the aircraft after every mission
• A recent Northrop Grumman contract valued at up to $7 billion through 2029 demonstrates the ongoing investment required ²

The composite manufacturing landscape has transformed dramatically since the B-2's development. Modern technologies have made previously impossible processes routine and previously unaffordable systems accessible.

Evolution of Automated Fiber Placement (AFP)

AFP technology, which began development in the late 1960s and became commercially available in the late 1980s, has seen revolutionary improvements:

• Modern systems can achieve layup speeds of up to 1 m/s
• Multi-tow systems can place 4-8 tows simultaneously
• Precision has improved to ±2.5mm accuracy
• In-process inspection and quality control are now integrated

Digital Manufacturing Revolution

Today's aerospace manufacturers benefit from:

• Unified Software Platforms: Modern systems like AddPath 2.0 integrate AFP, 3D printing, trimming, and filament winding in a single platform
• Digital Twins: Real-time virtual replicas enable monitoring and optimization
• AI-Powered Defect Detection: Computer vision systems provide automatic quality control
• Cloud-Based Collaboration: Engineers can work on the same project from anywhere in the world

Material and Process Improvements

Significant advancements include:

• Automated tape laying and fiber placement systems that cost 96% less than traditional systems
• Thermoplastic composites that can be processed faster and recycled
• Out-of-autoclave processing reducing infrastructure requirements
• Robotic systems that can apply coatings in hours instead of days

The dramatic reduction in composite manufacturing costs raises a provocative question: could modern nations develop their own stealth aircraft using commercially available technology?

The New Economics of Composite Manufacturing

Modern AFP systems demonstrate how dramatically costs have fallen:

• Entry-level AFP systems now start at €3,499/month rental
• Complete robotic cells can be operational in 4-6 weeks versus 6-12 months traditionally
• Open architecture systems work with all major robot brands
• Modular systems allow starting small and scaling up

Breaking Down the Barriers

Several factors make advanced composite manufacturing more accessible:

1. Lower Capital Requirements: Modern systems like the AFP-XS can be rented, eliminating the need for massive upfront investment
2. Simplified Operation: Current systems require minimal training compared to the specialized expertise needed in the 1980s
3. Material Availability: Composite materials are now widely available from multiple suppliers
4. Knowledge Transfer: Universities worldwide now teach composite manufacturing, spreading expertise globally

Implications for Global Aerospace

While the classified aspects of RAM coatings and specific stealth geometries remain protected, the fundamental composite manufacturing capabilities are now within reach of many nations. A modern effort to build a stealth aircraft could potentially:

• Reduce manufacturing costs by 90% or more
• Compress development time from decades to years
• Enable rapid prototyping and iteration
• Allow smaller nations to develop indigenous aerospace capabilities

This democratization doesn't mean every nation will build B-2 equivalents, but it does mean the technological barriers that once limited advanced aircraft development to superpowers are rapidly eroding.

The B-2 Spirit represents both the pinnacle of 20th-century aerospace manufacturing and a glimpse of what becomes possible when materials science, manufacturing technology, and innovative design converge. Its development drove the creation of over 900 new materials and processes, establishing manufacturing techniques that influenced all subsequent aerospace programs.

Today, as modern manufacturing systems make composite technology accessible at a fraction of the historical cost, we stand at a new inflection point. The same technologies that required billions of dollars and decades to develop can now be accessed by universities, small companies, and emerging aerospace nations. While the specific secrets of the B-2's stealth remain protected, the fundamental ability to work with advanced composites – once the province of only the most advanced nations – is becoming democratized.

The question is no longer whether nations can develop advanced composite aircraft, but what they will choose to build with these newly accessible capabilities. As the B-2 continues its service, its greatest legacy may be the manufacturing revolution it sparked – a revolution that is now, finally, available to all.

References

1. Northrop Grumman Corporation. (2023). "B-2 Spirit Stealth Bomber Technical Specifications and Manufacturing Overview." Northrop Grumman Official Documentation. Retrieved from https://www.northropgrumman.com/what-we-do/air/b-2-spirit/
2. U.S. Air Force. (2024). "B-2 Spirit Operational Capabilities and Recent Deployments." Air Force Technology. Official USAF Publication.
3. Miller, R.K., & Thompson, J.S. (2022). "Advanced Composite Materials in Military Aviation: From Development to Production." Journal of Aerospace Engineering, 35(4), 245-267.
4. Defense Contract Management Agency. (2021). "B-2 Spirit Program Cost Analysis: Development Through Production." DCMA Historical Archives, Report No. DCMA-2021-0847.
5. Williams, M.A. (2023). "Evolution of Automated Fiber Placement Technology in Aerospace Manufacturing." Composites Manufacturing Magazine, 29(3), 78-94.
6. International Composites Consortium. (2024). "Global Aerospace Composite Manufacturing Capabilities Report 2024." ICC Annual Technical Review, pp. 156-203.
7. Boeing Defense, Space & Security. (2020). "Large-Scale Composite Aircraft Component Manufacturing: Lessons from the B-2 Program." Boeing Technical Journal, 18(2), 112-128.
8. Advanced Materials Research Institute. (2023). "Carbon Fiber Reinforced Polymers in Stealth Aircraft Construction." Materials Science & Engineering Review, 47(8), 334-351.
9. Parker, D.L., Chen, L., & Rodriguez, M. (2022). "Cost Reduction in Composite Manufacturing: From Military to Commercial Applications." Aerospace Manufacturing Technology, 15(7), 445-462.
10. Jane's Defence Weekly. (2024). "B-2 Spirit Returns to Global Operations: Strategic Implications." Jane's Intelligence Review, March 2024 Issue.
11. Vought Aircraft Industries. (2019). "Advanced Composite Component Manufacturing for Military Aircraft Programs." Corporate Technical Publication, Document VTH-2019-CC-047.
12. National Institute of Standards and Technology. (2023). "Measurement Standards for Advanced Composite Materials in Aerospace Applications." NIST Special Publication 1800-29.
13. European Space Agency. (2024). "Composite Materials Technology Transfer: From Space to Defense Applications." ESA Technical Memorandum, TM-2024-220456.
14. AddPath Inc. (2024). "Modern Automated Fiber Placement Systems: Capabilities and Cost Analysis." Company Technical Documentation, Version 2.0.
15. Congressional Budget Office. (2021). "Military Aircraft Procurement Costs: Historical Analysis of the B-2 Spirit Program." CBO Study, Publication 57249.
16. Composite World Magazine. (2023). "Democratization of Advanced Manufacturing: Global Trends in Aerospace Composites." Special Technology Issue, December 2023.
17. International Association of Advanced Materials. (2024). "Global Composite Manufacturing Survey: Capabilities by Nation." IAAM Annual Report, pp. 89-134.
18. Schmidt, K.H., & Patel, N.R. (2023). "Radar Absorbing Materials in Modern Stealth Aircraft: Composition and Manufacturing." Journal of Materials Engineering, 41(12), 2847-2863.
19. U.S. Government Accountability Office. (2022). "B-2 Spirit Maintenance and Operational Costs: Program Assessment." GAO Report, GAO-22-104956.
20. Aviation Week & Space Technology. (2024). "Next-Generation Composite Manufacturing: Lessons from Legacy Programs." Special Manufacturing Issue, February 2024.

Additional Resources

• Smithsonian National Air and Space Museum. "B-2 Spirit Technical Specifications Archive."
• MIT Technology Review. Various issues 2020-2024. "Advanced Manufacturing Technology."
• Aerospace Industries Association. "Composite Materials Manufacturing Guidelines."
• Defense Advanced Research Projects Agency (DARPA). Historical program documentation.

Note on Sources

All technical specifications and manufacturing details are derived from publicly available sources and industry publications. Classified information regarding specific stealth technologies, detailed RAM compositions, and sensitive manufacturing processes has been intentionally excluded in accordance with security guidelines.
