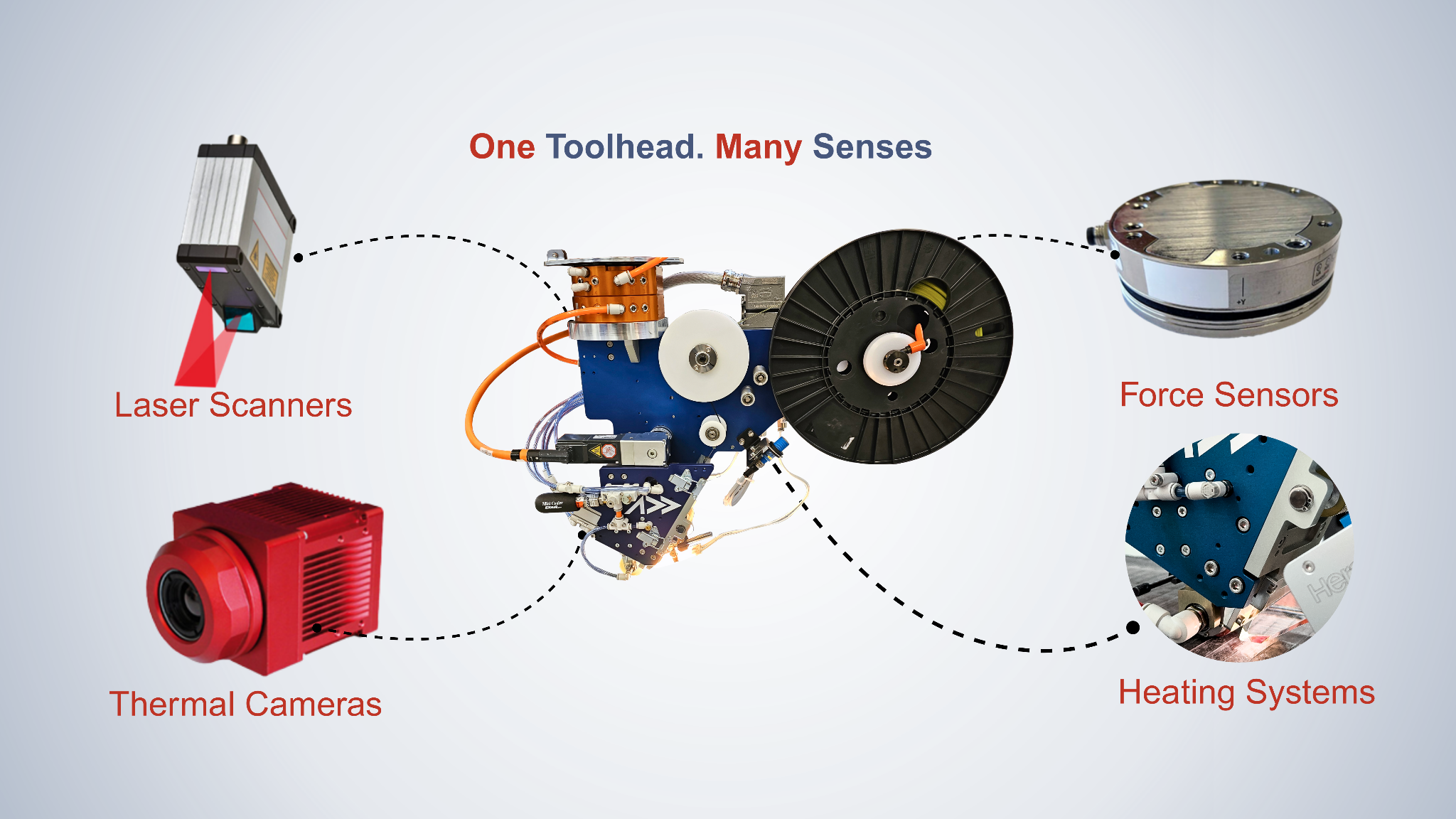

AFP-XS stands out for its robust sensor portfolio, designed to accommodate a diverse range of sensors that cater to the demands of digital manufacturing. Key types include:

• Laser Scanners: For high-precision dimensional measurements, capable of scanning at a 5-micron level to detect issues like wrinkling or gaps.
• Thermal Cameras: To monitor temperature variations during the layup process, ensuring optimal heating and preventing defects such as overheating.
• Force Sensors: These measure pressure and additional parameters, providing feedback on material interaction and process stability.
• Vision Systems: For visual inspections, often working in tandem with other sensors to capture detailed imagery.
• Heating Systems and Additional Sensors: Including post-talk sensors and other specialized units for comprehensive process monitoring.

Physical integration is straightforward and flexible. AFP-XS features built-in mounting positions that can be customized based on the sensor's nature. If a customer prefers their own sensors over Addcomposites' standard offerings (like the standard laser scanner or thermal camera), adaptations are possible. Connectivity relies on standard industrial communication buses, allowing sensors to link directly to the system's PLC (Programmable Logic Controller) via provided ports. This ensures real-time data transmission to the AFP head's controller, making integration "plug-and-play" for most applications—simply mount mechanically, connect via cable, and configure.

This ecosystem not only supports common protocols but also enables the addition of heating systems, turning AFP-XS into a highly adaptable tool for composite manufacturing.

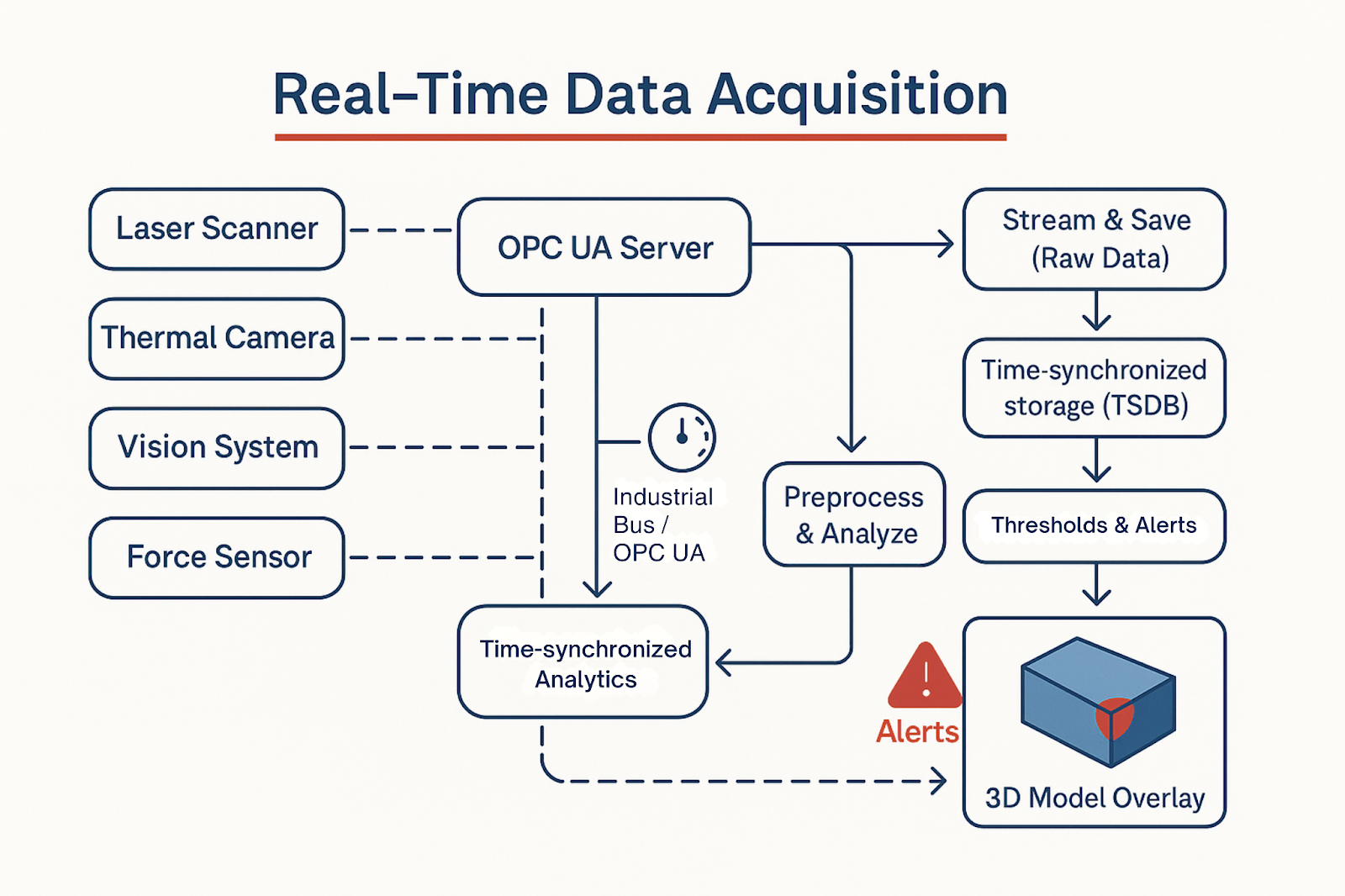

One of the core strengths of AFP-XS lies in its ability to manage massive data streams from multiple sensors simultaneously, enabling true real-time monitoring. The architecture leverages an OPC UA server to stream data from the robot, AFP system, and all connected sensors. Each data point is timestamped with positional information, ensuring synchronization despite varying sampling rates.

Data is stored in a raw, space-efficient format within AddPath, Addcomposites' planning and analysis software. Processing occurs in parallel: while data streams in, analysis runs on chunks (e.g., per pass or layer), allowing results to be ready by the time a layer completes. This setup addresses technical challenges like data volume and synchronization by dividing tasks—streaming and saving happen on one stream, while preprocessing and analysis occur on another.

For instance, if a laser scanner detects wrinkling in a corner, the system flags it immediately, overlaying the data on a 3D digital representation. This empowers operators to visually confirm and adjust processes on the fly, such as rerunning a pass. The balance between edge computing (on-prem devices) and optional high-performance computing (for heavy loads) ensures low response times, making real-time monitoring feasible even with terabytes of data.

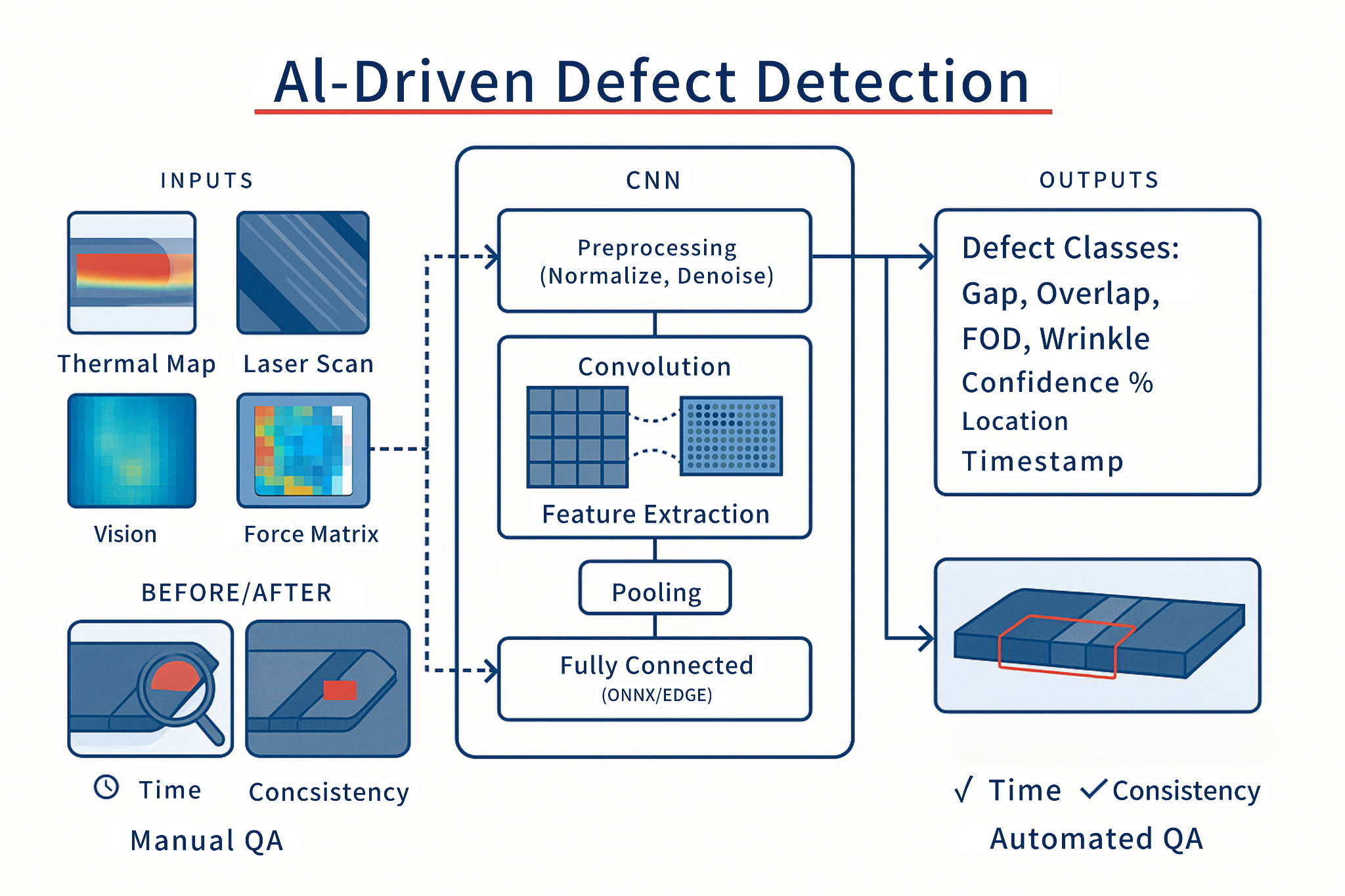

AFP-XS transforms quality assurance from a manual, error-prone task into an automated, intelligent process. Sensors feed into machine learning models—primarily convolutional neural networks (CNNs)—that process data to detect defects with 90-95% accuracy.

The implementation involves converting sensor data (e.g., thermal readings, dimensional scans, or force feedback) into standardized formats like images or matrices. These are compared against defect-free baselines using gain functions to identify patterns, classify defect types, and measure their size. Training begins with pre-trained models on known defect scenarios, then refines as new data from layups is submitted, incorporating certainty scores for reliability.

Once detected, defects are overlaid on the 3D digital model in AddPath, highlighting issues like overheating or excessive wrinkling. This not only automates QA but also integrates with real-time monitoring, allowing for immediate operator intervention. The result? Consistent, high-precision checks that surpass traditional methods, reducing downtime and improving overall part quality.

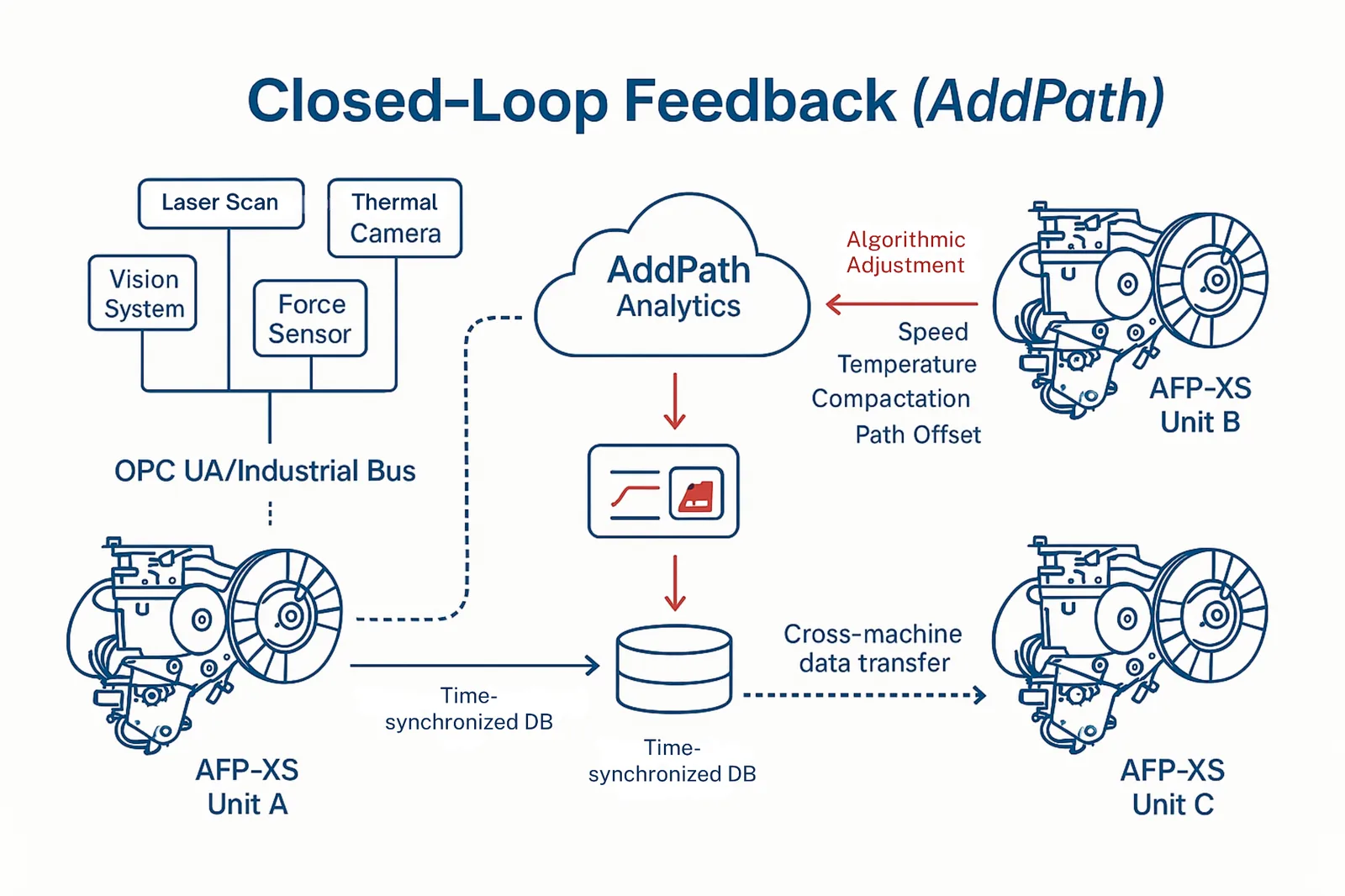

Beyond immediate monitoring and QA, AFP-XS sensors play a pivotal role in digital training and knowledge capture, converting real-world manufacturing insights into algorithmic knowledge. Historical sensor data feeds back into AddPath, creating a closed-loop system that refines planning parameters. For example, if thermal data reveals overheating in a specific area, the software adjusts heat settings algorithmically for future runs, embedding expert knowledge into the process.

This data is highly transferable across identical AFP-XS systems, as they share the same sensor sets and protocols. Companies with multiple units can exchange datasets (with permission), accelerating learning and optimization. While long-term predictive models are still in development, the current framework already supports process improvements by looping sensor intelligence back to the planning stage, effectively "training" the system digitally.

Maintenance ensures sustained accuracy: Sensors are high-quality and pre-calibrated, with material-specific tuning and reference checks using master objects to compensate for drift in industrial environments.

Smart sensor integration on AFP-XS exemplifies how digital manufacturing can achieve unprecedented levels of efficiency and precision. From versatile sensor mounting to real-time data handling, automated QA, and digital training, these technologies empower manufacturers to produce high-quality composites with minimal human intervention. As Addcomposites continues to innovate—potentially expanding into long-term predictive analytics—the potential for sensor-driven intelligence in manufacturing is boundless. For those in the industry, embracing such systems isn't just an upgrade; it's a step toward a smarter, more sustainable future.
