In the rapidly evolving landscape of large format additive manufacturing, where parts can span meters and production volumes continue to rise, intelligent sensor integration has become the cornerstone of quality assurance. Addcomposites' LFAM print head represents a paradigm shift in how production intelligence is gathered, analyzed, and applied in real-time for large-scale composite manufacturing. As a production-ready system designed for massive build volumes, the LFAM print head leverages an advanced sensor suite that transforms raw data into actionable insights, enabling manufacturers to achieve consistent quality even at unprecedented scales.

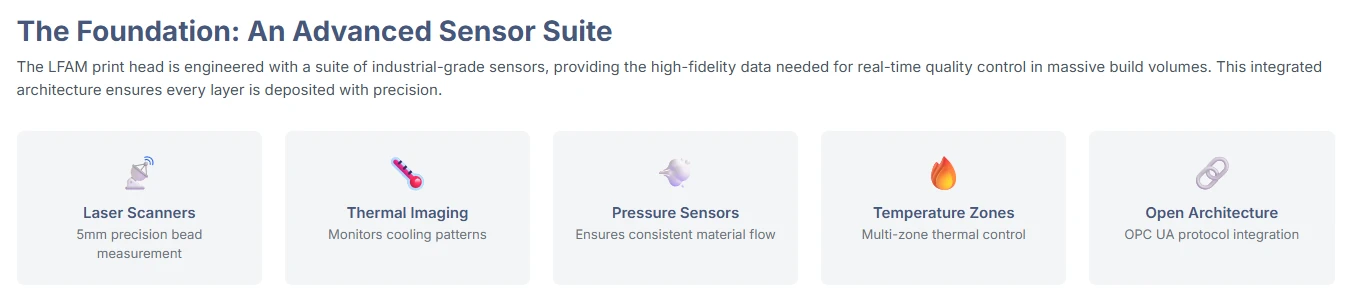

The LFAM print head's sensor architecture is engineered specifically for high-volume production environments where quality consistency across massive parts is non-negotiable. The integrated sensor suite includes:

• High-Resolution Laser Scanners: Capturing point cloud data in real-time to measure bead width and thickness with millimeter-level precision, essential for detecting dimensional deviations and ensuring proper material deposition across large build volumes.


• Industrial Thermal Imaging Systems: Continuously monitoring cooling patterns and bond quality across the layup surface, detecting potential debonds and ensuring optimal thermal management—critical for preventing warpage and maintaining structural integrity in large-scale parts.


• Precision Pressure Sensors: Positioned just before the nozzle, these sensors monitor extrusion pressure and temperature to ensure consistent material flow, proper melting of granulates, and adequate compaction for minimal void content.


• Multi-Zone Temperature Monitoring: Tracking thermal profiles across multiple zones to maintain uniform heating and prevent thermal gradients that could compromise part quality.



The LFAM platform features an open architecture design that allows seamless integration of additional sensors through the system controller. All sensors connect through industrial-grade OPC UA protocols directly to the LFAM controller, ensuring deterministic real-time data acquisition essential for production traceability. The architecture supports dynamic sensor configuration and hot-swapping capabilities, enabling continuous production even during sensor maintenance or upgrades.

The LFAM system's digital twin capability, powered by AddPath software, creates a comprehensive virtual representation of every manufactured part in real-time. This sophisticated system goes beyond simple data logging to provide a complete production intelligence platform that enables predictive quality control and adaptive manufacturing strategies for large-scale parts.

Digital Twin Architecture

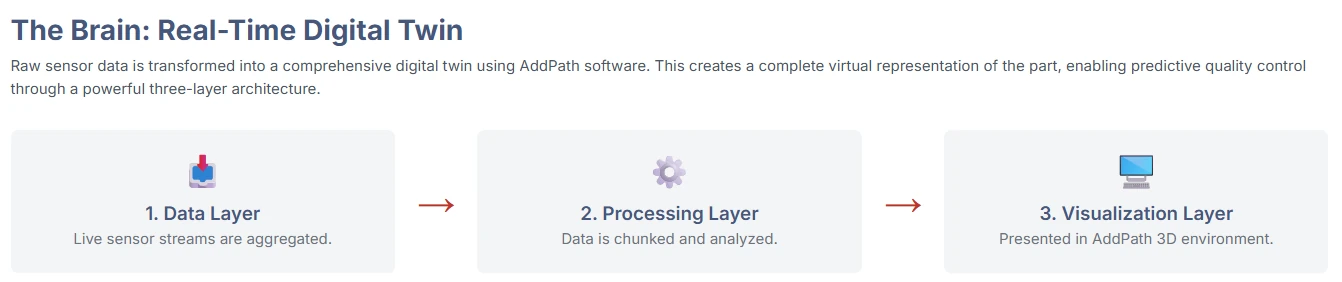

The system employs an advanced architecture where the LFAM controller aggregates all sensor data along with robot position information and extruder actuator states. This fused dataset is transmitted through the OPC UA server to AddPath, which displays the information in a near real-time 3D environment. The digital twin operates on multiple synchronized levels:

• Data Aggregation Layer: All sensors connected to the LFAM controller provide continuous streams of pressure, temperature, dimensional, and thermal data, precisely timestamped and spatially referenced to create a four-dimensional production map.


• Processing Layer: Data is chunked into manageable segments—organized by layers, passes, and inner/outer contours—reducing computational load while maintaining comprehensive coverage. This segmentation allows operators to focus on specific areas of interest without losing sight of the overall production picture.

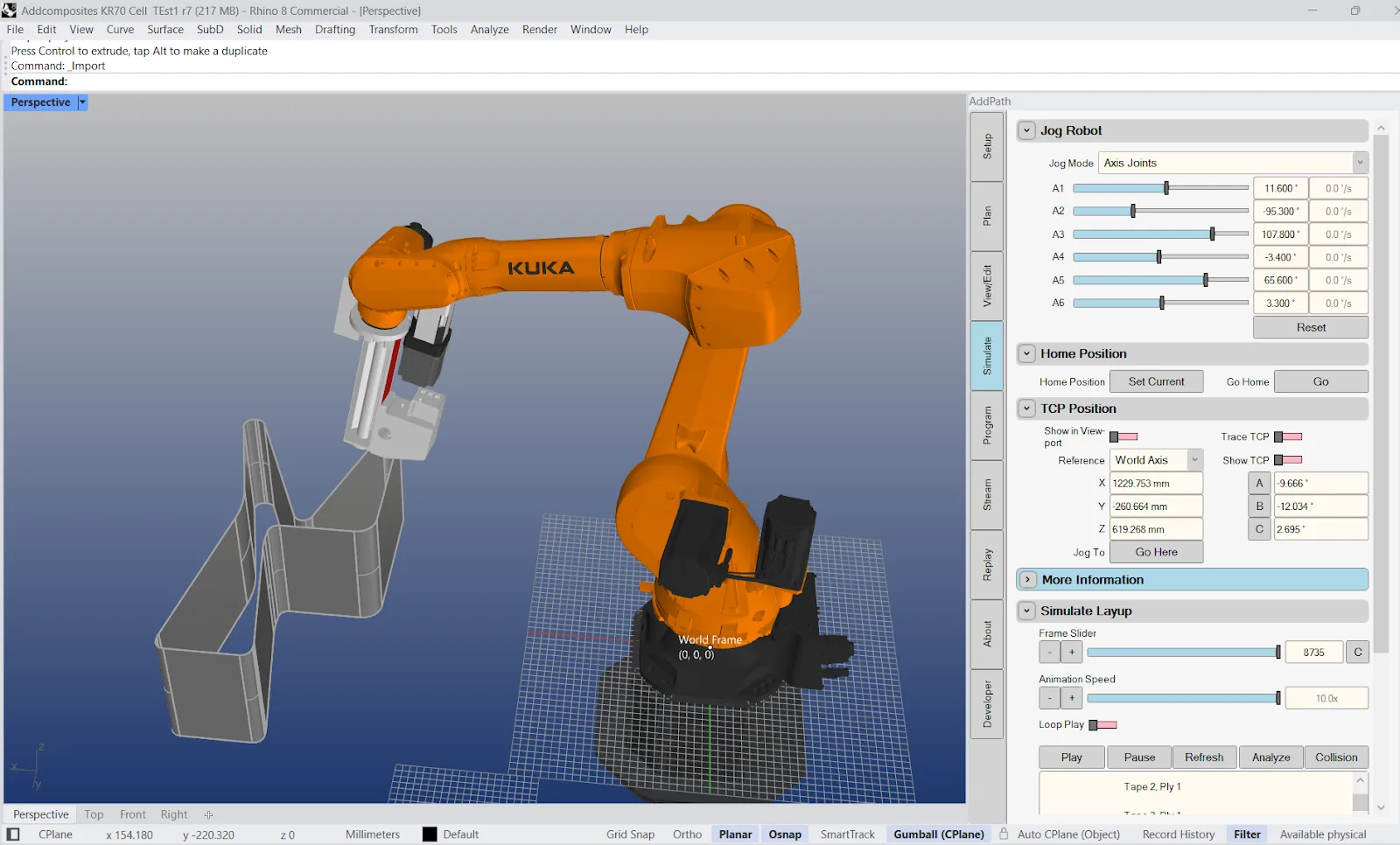

• Visualization Layer: AddPath presents this data in an intuitive 3D interface where operators can monitor the print process, visualize tolerances after each layer, and identify areas requiring attention.



The intelligent data management system handles massive data streams through batch processing and redundant storage across multiple server areas, ensuring no data loss even with package drops. Remarkably, this sophisticated system runs efficiently on standard workstation laptops, eliminating the need for expensive, high-powered computing infrastructure typically required by other solutions.

Intelligent Defect Detection

The LFAM system transforms quality assurance from post-production inspection to real-time defect prevention through sophisticated detection algorithms specifically optimized for large format manufacturing. The defect detection system operates through multiple integrated mechanisms:

Process Defect Monitoring: The system continuously monitors critical process parameters against predefined tolerances. When pressure drops indicate potential flow issues, when thermal cameras detect temperature deviations from optimal ranges, or when any parameter exceeds set limits, the system can automatically pause production. This immediate response prevents the propagation of defects across large parts where material waste would be significant.

Geometric Validation: Laser scanners capture point cloud data of deposited beads, which is processed through AI/ML algorithms to compare against planned geometry. The system predicts deviations in real-time, overlaying results on the 3D visualization to highlight areas of concern. This capability is particularly crucial for large format parts where manual inspection would be impractical.

The implementation leverages machine learning models that process sensor data streams in parallel, identifying issues such as:

• Layer adhesion problems detected through thermal imaging
• Dimensional deviations captured by laser scanning
• Material inconsistencies revealed by pressure variations
• Surface quality issues identified through multi-spectrum analysis

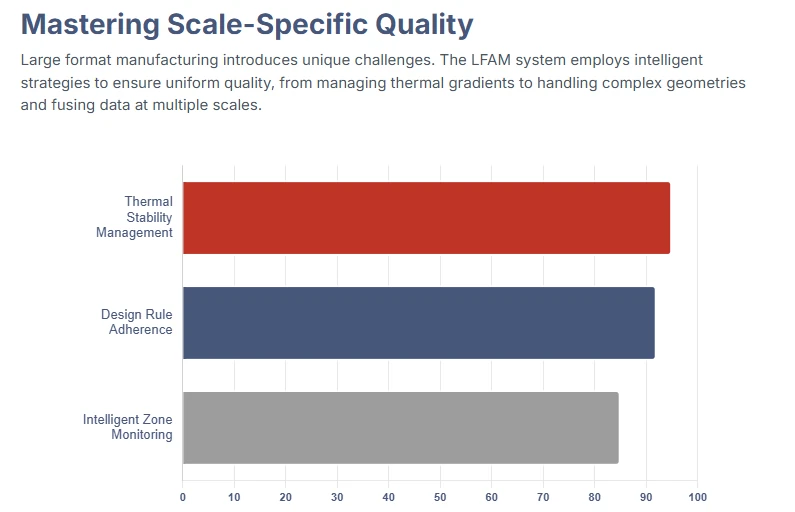

Large format additive manufacturing presents unique quality challenges that the LFAM sensor suite is specifically designed to address. When manufacturing parts that can span several meters, traditional inspection methods become impractical, and new approaches are required to ensure uniform quality from center to edges.

Thermal Stability Management

Large parts experience significant thermal gradients and deformations that can compromise quality. The LFAM system uses thermal camera data to calibrate cooling rates for each layer, balancing thermal stability across the entire build volume. The system can also heat substrates strategically to improve bonding and minimize warpage. This continuous thermal monitoring and adjustment ensures that each layer bonds properly with the previous one, preventing delamination and maintaining structural integrity throughout the build.

Complex Geometry Handling

For complex geometries with overhangs, varying wall thicknesses, or internal structures, the system employs smart monitoring strategies. Thermal cameras focus on specific zones of attention, while algorithms trim and sort sensor data to extract relevant information. The system follows established design rules to ensure manufacturability:

• Maintaining wall thicknesses as multiples of bead width for consistent material flow
• Avoiding unsupported overhangs beyond recommended angles
• Eliminating internal support structures through intelligent part design
• Optimizing toolpaths to minimize thermal stress in critical areas

Multi-Scale Data Fusion

While the system primarily focuses on macro-level quality metrics like bead size and surface finish, it intelligently correlates this with process parameters to infer micro-level quality. Thermal imaging can indicate potential void formation, while pressure data suggests material compaction quality. This multi-scale approach provides comprehensive quality assessment without requiring expensive micro-level inspection equipment.

The sensor suite divides large parts into manageable zones, each with optimized monitoring parameters. The thermal camera maintains specific focus windows for critical areas, while less critical regions receive periodic monitoring. This intelligent resource allocation ensures comprehensive coverage without overwhelming data processing capabilities.

The LFAM system's predictive capabilities represent a significant advancement in large format manufacturing intelligence. By leveraging historical sensor data and digital twin models, the system anticipates quality issues before they occur, enabling proactive process adjustments that prevent defects and optimize production efficiency.

Predictive Quality Analytics

The planning phase in AddPath incorporates extensive predictive analysis. During slicing and path planning, the system identifies potential issues such as excessive overhangs, inappropriate speeds, or problematic geometries. This pre-production analysis allows operators to optimize parameters before committing materials, significantly reducing waste and rework. The system evaluates:

• Overhang angles and support requirements
• Optimal print speeds for different geometries
• Temperature profiles for various material types
• Pressure requirements for consistent extrusion

Real-Time Adaptive Response

The system sets intelligent limits for critical parameters—pressure thresholds, temperature ranges, and dimensional tolerances—that trigger automatic responses when exceeded. When sensors detect drift from optimal conditions, the system can:

• Alert operators to required adjustments
• Pause production to prevent defect propagation
• Recommend parameter modifications based on current conditions
• Log events for future process optimization

While fully automated adaptive control is currently under development through European research projects, the current system provides operators with real-time recommendations for parameter adjustments based on sensor feedback.

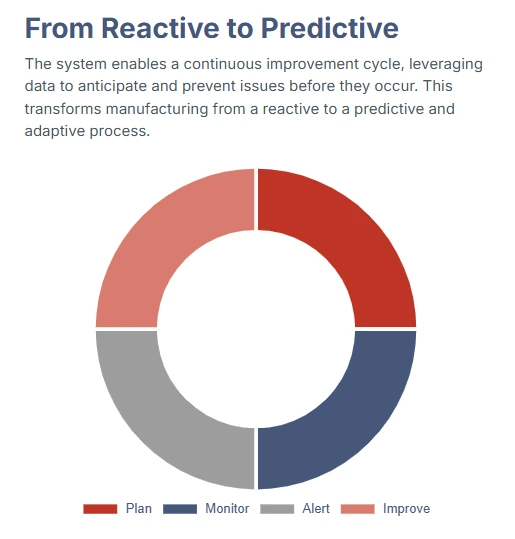

Continuous Learning and Improvement

Every production run contributes to the system's knowledge base. The digital twin records successful parameter combinations, correlating them with quality outcomes. This accumulated intelligence enables:

• Increasingly accurate predictions of potential issues
• Optimized parameter recommendations for new parts
• Reduced setup time for similar geometries
• Enhanced process stability over time

The system performs continuous Statistical Process Control (SPC) analysis on sensor streams, identifying trends before they result in defects. For instance, gradual pressure increases might indicate nozzle wear, prompting preventive maintenance before quality is affected.

The LFAM system's comprehensive sensor integration and digital twin capabilities revolutionize production validation and certification for large format manufactured parts. This transformation addresses a fundamental challenge in additive manufacturing: while 3D printing technology enables creation of complex geometries, the qualification and certification of these structures has traditionally been the bottleneck.

Automated Documentation Generation

The digital twin automatically generates detailed quality records for every manufactured part. With sensor accuracy approaching 98-99% (when properly configured and calibrated), the system creates documentation far more comprehensive than traditional inspection methods. Every layer, every pass, and every sensor reading is recorded and organized for easy retrieval. The documentation includes:

• All sensor data streams with timestamps and spatial references
• Process parameters for every segment of production
• Environmental conditions throughout manufacturing
• Material batch information and consumption rates
• Operator interventions and parameter adjustments
• Detected anomalies and corrective actions taken

Process Certification Approach

Rather than requiring certification of individual parts, the LFAM system enables process certification. Once the manufacturing process is validated with comprehensive sensor data proving consistent quality, subsequent parts produced with the same parameters can be certified based on process adherence. This approach eliminates approximately 30-40% of administrative overhead typically required for part qualification.

The system provides the evidence needed to demonstrate that parts were manufactured within specified parameters, essential for industries with strict quality requirements. This process-based certification is particularly valuable for:

• Aerospace components requiring AS9100 compliance
• Automotive parts meeting IATF 16949 standards
• Marine structures adhering to classification society rules
• Infrastructure components requiring civil engineering certifications

Knowledge Preservation and Transfer

Beyond immediate certification needs, the digital twin creates a permanent record of manufacturing expertise. This knowledge base becomes invaluable for:

• Training new operators on successful production parameters
• Troubleshooting quality issues by comparing with historical data
• Replicating successful builds across multiple production sites
• Continuous improvement initiatives based on accumulated data

The comprehensive traceability provided by the LFAM system supports regulatory compliance across various industries, providing auditors with complete visibility into the manufacturing process and quality control measures.
