Welcome to our comprehensive guide on Automated Fiber Placement (AFP) machines, a transformative technology in the field of composite manufacturing. Whether you are new to AFP or looking to upgrade your existing system, this blog is designed to provide you with valuable insights and practical advice to help you make an informed decision. Here’s what you can expect:

  • Understanding AFP Machines: Delve into the basics of AFP machines, unraveling their functionality and significance in today’s manufacturing landscape.
  • Cost Breakdown: Gain clarity on the various cost components associated with AFP machines, ensuring you know exactly what you are investing in.
  • Traditional vs. Modern Systems: Compare traditional large AFP machines with modern modular AFP systems, highlighting the advancements and benefits of each.
  • AFP-XS: A Modern Solution: Discover AFP-XS, a modular AFP system that bridges the gap between traditional complexity and modern efficiency, designed to meet the evolving needs of the industry.

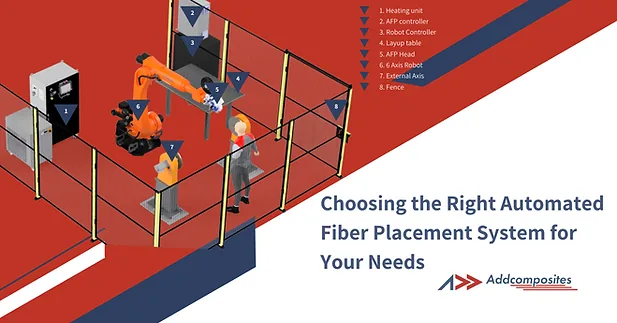

  • Choosing the Right System: Equip yourself with knowledge on how to select the most suitable AFP system for your specific needs, ensuring a perfect match for your production requirements.
  • Get an Automated Quote: Learn how to easily obtain a customized quote for your AFP system, streamlining your decision-making process.

What is an Automated Fiber Placement (AFP) Machine?

Automated Fiber Placement (AFP) is a sophisticated process used in the manufacturing of composite materials, where continuous fibers are meticulously placed onto a substrate using a specialized machine. This technology has been around for decades, evolving significantly over time to enhance efficiency and quality. Today, AFP is a pivotal part of various industries, known for its ability to produce composite parts with superior mechanical properties, extended fatigue life, and enhanced fracture toughness.

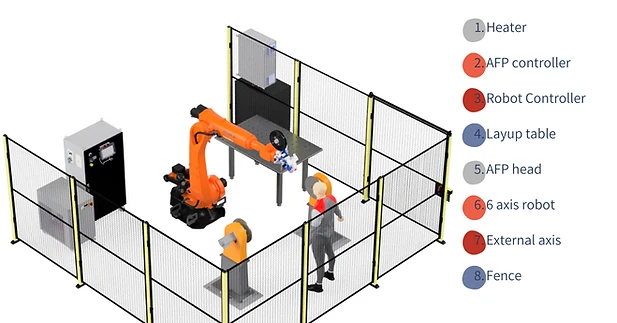

The AFP machine operates by attaching an AFP head to an industrial robotic arm, programmed to place strips of composite material tapes, or tows, onto a tool surface. This process requires precision to ensure minimal defects and optimal adhesion between the tows and the substrate. The machine utilizes heating and compaction during the placement of the tows, and tow tension is meticulously managed to ensure accurate placement. The end result is a laminate, composed of multiple plies stacked together in a precise sequence.

The use of automation and robotics in AFP not only accelerates production but also ensures improved accuracy, quality, and a reduction in human error, making it an invaluable asset in composite manufacturing. Operators of AFP systems generally need a basic understanding of composites processing and CNC machine operation. The programming and operation of the machine involve several steps, including part production simulation, NC code generation, machine setup, and careful monitoring during the layup process.

AFP machines have found applications in various industries, such as aerospace for manufacturing aircraft components, automotive for composite parts, construction for materials like bridge decks and beams, and wind energy for composite wind turbine blades. The versatility and precision of AFP machines make them a valuable tool for manufacturing lightweight, complex-shaped structures optimized for load-carrying and efficiency.

Understanding the Cost Components of an Automated Fiber Placement (AFP) Machine

  • Material Handling
    • Thermoset Materials: These materials require careful handling, often needing slight heating above room temperature for optimal placement, yet must be kept below certain temperatures to prevent premature curing.
    • Thermoplastic Materials: These materials are non-tacky at room temperature and require heating to their melting point for proper bonding. This may necessitate additional equipment such as external heating units.
    • Dry Fiber: These materials are also non-tacky and are used as precursor methods to RTM-like infusion methods to achieve a higher rate of production. The Dry fiber tapes often contain a thermoplastic binder in the form of viel, powder, or thread that is heated and helps with the tack during placement
    • Number of Tows: In the majority of the cases selecting a single tow system with variable width support is sufficient. However in order to achieve a higher production rate over complex geometry multi-tow fiber placement heads are preferred.
  • Temperature Control
    • Proper application of heat is crucial for ensuring the effective adhesion of the composite materials. Various heating systems are available, each with its own set of characteristics. Infrared heaters are commonly used, but they may have drawbacks such as inefficient and non-uniform heat transfer.
  • Process Types
    • The AFP machine should be versatile enough to accommodate different manufacturing processes, including fiber placement, tape laying, and filament winding. This ensures adaptability to various part shapes and sizes.
  • Motion Platforms:
    • The choice of motion platform depends on the size and shape of the parts being manufactured. Options include horizontal gantries, vertical gantries, and robotic arms, each suited for specific applications.
  • Software Integration and Process Planning:
    • The software used in AFP operations plays a critical role, acting as the intermediary between design, manufacturing, and quality control. A well-integrated software solution ensures efficient process planning and operation.
  • Support and Maintenance:
    • Given the complexity of automated systems, consistent support from the Original Equipment Manufacturer (OEM) is essential. This includes updates for firmware, planning software, operations, and the provision of spare parts for a significant period, typically at least 10 years.

By understanding these cost components, manufacturers can make more informed decisions when selecting an AFP machine, ensuring they choose a system that meets their specific needs and budget.

Price of Traditional Large AFP Machines

Automated Fiber Placement (AFP) machines, particularly those used in the aerospace industry for large, expensive parts, are typically custom-built. This customization is a significant factor in the pricing of these machines, making it a complex aspect to quantify. However, we can identify the main cost drivers and provide a general understanding of the pricing structure.

Main Cost Drivers:

  1. Engineering Costs: The technical complexity of AFP machines is a major cost driver. This complexity varies based on the size and complexity of the part being manufactured, as well as the speed of tape or tow placement.
  2. Market Dynamics: The AFP machine market is characterized by a small number of consumers (typically airplane manufacturers or the military) and suppliers. This leads to nearly full customization of each machine, contributing to the high costs.
  3. Customization: Added features and modifications to a basic machine will increase the overall price. Common customizations include changes in length, width, or adaptations for national safety regulations. For example, the incremental cost for adding 10 feet in the width of the machine is approximately $100,000.

Pricing Examples:

  1. Manufacturer A:
    1. A tape laying machine capable of making parts as large as 25' x 120'.
    2. Base price: $3,500,000.
    3. With additional features (software, postprocessor, part history recording, installation): Approximately $4,182,000.
    4. A machine half the size would cost 5-7% less.
  2. Manufacturer B:
    1. A tape laying machine 16 feet wide, capable of making parts up to 140 feet long.
    2. Base price: Approximately $2.5-$2.6 Million.
    3. With all features included: $4.25-$4.8 Million.
    4. An addition of 20 ft in width would increase the cost by $200,000.
  3. Manufacturer C:
    1. A fiber placement system capable of placing up to 32 tows of 0.125" width at a speed of up to 1200 in/min.
    2. Price range: $4.5-$6 Million for a machine with a travel of 30' x 28.5' x 5'.

These examples illustrate the significant investment required for traditional large AFP machines, with prices ranging from $3 Million to $6 Million, depending on the size, capabilities, and additional features of the machine. It is crucial for manufacturers to carefully consider their specific needs and budget when selecting an AFP machine, as the cost implications are substantial.

Price of Modern Modular AFP Systems

The advent of modern modular Automated Fiber Placement (AFP) systems has revolutionized the composite manufacturing industry, offering a more cost-effective and flexible solution compared to traditional large AFP machines. These systems are designed to be user-friendly, versatile, and efficient, catering to the evolving needs of manufacturers.

Key Features and Advantages:

  1. Plug-n-Play: Modular AFP systems can easily integrate with existing robots, providing a seamless transition and reducing setup time.
  2. Dedicated Software: They operate with their own software, ensuring compatibility and streamlined operations.
  3. Built-In Digital Twin: This feature allows for in-situ quality control and inspection, ensuring the integrity of the manufacturing process.
  4. Multi-Material Capability: These systems can process a variety of materials including thermoset, thermoplastic, and dry fiber, providing flexibility in manufacturing.
  5. End-to-End Ecosystem: They offer interoperability with design FEA software, robotic software, and inspection software, creating a comprehensive solution for manufacturers.

Pricing Options:

The modular nature of these systems provides various pricing options, making them accessible for different needs and budgets.

  1. Lease to Buy: For a monthly installment of only €3499, manufacturers can gradually own the system.
  2. Rent for a Project: At €3499 per month, manufacturers can rent the system for specific projects, connecting the AFP to any existing robot.
  3. Buy Only AFP Head: For those who already have a compatible robot, the AFP head can be purchased separately for under €100k.
  4. Buy the Complete Cell: Manufacturers can build and order a complete cell tailored to their production needs.

AFP-XS: A Game-Changer in Composite Manufacturing

AFP-XS stands out as a prime example of a modern modular AFP system, designed to bridge the gap between traditional AFP technology and the current needs of the industry. It is a product born out of a deep understanding of the user's pain points, aiming to make AFP technology more accessible and cost-effective.

AFP-XS is not just about affordability; it is about empowering users. With its user-centric design, it addresses safety concerns in composite manufacturing by providing multi-material capabilities. This aligns with the industry's shift towards more sustainable practices, ensuring safer material processing options.

The system's use of open-access software gives users the flexibility to build their own scripts and leverage digital twin capabilities, ensuring real-time quality control and superior system performance. Its compact and simplified design, focusing on single tow variable width options, reduces system complexity, ensuring ease of use and maintenance.

Configuration Considerations:

  • Materials: Determine the types of materials you intend to work with, such as carbon fiber, glass fiber, or other preimpregnated flat strips of thermoset, thermoplastic, or with no matrix at all (i.e., Dry fibers).
  • Shape Complexity: Decide on the intricacy of the shape you're aiming for, such as Flat, Open, Close, Selective, or Fiber steered.
  • Production Volume: Estimate the expected production volume. This can be left blank if uncertain.
  • Existing Infrastructure: Consider whether you already have a production floor or lab space equipped with CNC or Robot.

Basics of Quality and Reliability:

  • Support: Ensure the automated systems have consistent support for firmware, planning software, operations, and spare parts for at least 10 years from the OEM supplier. Addcomposites provides built-in remote support with constant updates to support any future needs.
  • Material Handling:
    • Thermoset: These materials become tacky after refrigeration and should be heated slightly above 40°C but below 60°C for optimal placement.
    • Thermoplastic: These are non-tacky at room temperature and require heating to their melting point for effective bonding. External heating units like lasers or hot gas torches might be necessary.

Motion Platforms: Understanding Gantry and Robotic Systems

  • Horizontal Gantry: Best for parts with significant height or those that require rotation. Offers 6° of freedom (DOF) - 3 cartesian and 3 rotational, with an external rotational axis for the mandrel/tool.
  • Vertical Gantry: Suitable for large plate-like structures that don't demand complex motion. Performs layups from the top of the tool, typically without a rotating mandrel.
  • Robotic Arm: Ideal for complex shapes requiring extensive maneuverability. Boasts up to 8 DOF, making it the most versatile option.

Process Types:

  • Fiber Placement: Uses narrow tapes to cover complex shapes without wrinkles.
  • Tape Laying: Employs a single wide tape mainly for flat preform creation.
  • Filament Winding: Winding tow pregs on a closed shape along the geodesic path.

Temperature Control:

The application of heat is pivotal for proper adhesion of incoming tows to the substrate. Various heating systems are available, each with unique characteristics and applications.

Software Integration and Process Planning in AFP Operations:

The success of AFP operations hinges significantly on the software used, acting as the bridge connecting design, manufacturing, and quality control. Ensure to choose software that integrates well with the AFP system to avoid inefficiencies.

Additional Considerations:

  • Simulated AFP Tape Courses: Enables the simulation of programmed AFP tape courses.
  • Waste Reduction: Uses virtualization to minimize waste.
  • Path Optimization: Consider methods that optimize fiber paths on the tool surface, considering factors like machine kinematics, thickness variation, and user requirements.

Get an Automated Quote for Your AFP System

Making the right investment in an Automated Fiber Placement (AFP) system is crucial, and we understand the importance of having all the information you need to make an informed decision. To facilitate this, we offer an automated quoting system that provides you with a detailed and customized quote based on your specific requirements.

How to Get Your Quote:

  1. Click on the Link: Get Your Automated AFP System Quote
  2. Fill in the Form: Provide all the necessary details about your project, materials, production volume, and any specific requirements you have.
  3. Submit: Once you've filled in all the details, submit the form.
  4. Receive Your Quote: You will receive a detailed quote directly to your email, outlining the costs, specifications, and any additional information relevant to your chosen AFP system.

Why Use Our Automated Quote System?

  • Quick and Easy: Get a quote in just a few minutes without the need for back-and-forth communication.
  • Customized to Your Needs: The quote will be tailored to your specific project requirements, ensuring you get an accurate estimate.
  • No Obligation: There is no obligation to purchase. Use the quote to help you plan and make the best decision for your needs.

We are here to help you transition into the future of composite manufacturing with ease and confidence. Get your automated quote today and take the first step towards optimizing your production process with the right AFP system.

Get Your Automated AFP System Quote

If you have any questions or need further assistance, feel free to contact our support team. We are here to help you every step of the way.

‍
