In aerospace manufacturing, where every component must meet exacting standards and production volumes continue to rise, intelligent sensor integration has become the cornerstone of quality assurance. Addcomposites' AFP-X represents a paradigm shift in how production intelligence is gathered, analyzed, and applied in real-time. As a production-ready automated fiber placement system, AFP-X leverages an advanced sensor suite that transforms raw data into actionable insights, enabling manufacturers to achieve aerospace-grade quality consistently at scale.

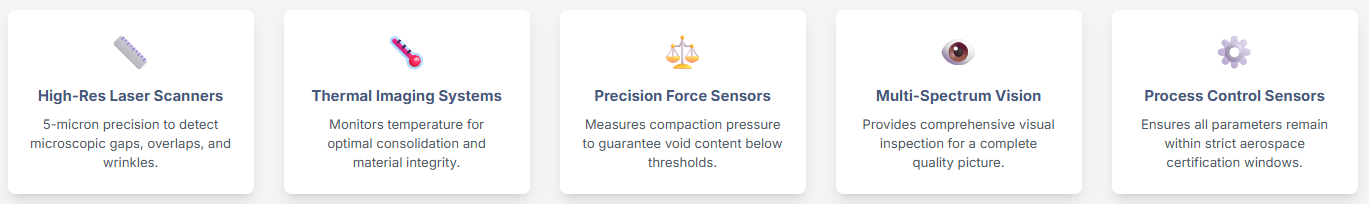

AFP-X's sensor architecture is engineered specifically for high-volume production environments where aerospace-grade quality is non-negotiable. The integrated sensor suite includes:

• High-Resolution Laser Scanners: Operating at 5-micron precision levels to detect microscopic defects such as gaps, overlaps, and wrinkles that could compromise structural integrity in aerospace applications.

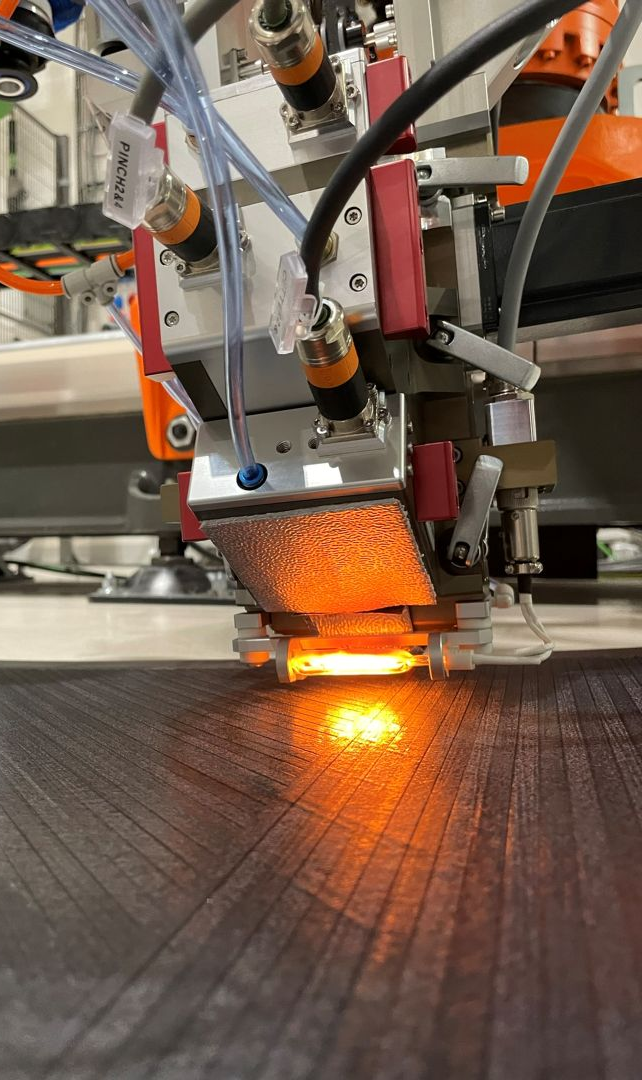

• Industrial Thermal Imaging Systems: Continuously monitoring temperature profiles across the layup surface to ensure optimal consolidation and prevent thermal degradation—critical for maintaining material properties in certified aerospace components.


• Precision Force Sensors: Measuring compaction pressure and material interaction forces to guarantee consistent consolidation across every ply, essential for achieving void content below aerospace thresholds.


• Multi-Spectrum Vision Systems: Providing comprehensive visual inspection capabilities that work in concert with other sensors to create a complete quality picture.


• Advanced Process Control Sensors: Including specialized heating systems and auxiliary monitoring devices that ensure process parameters remain within aerospace certification windows.

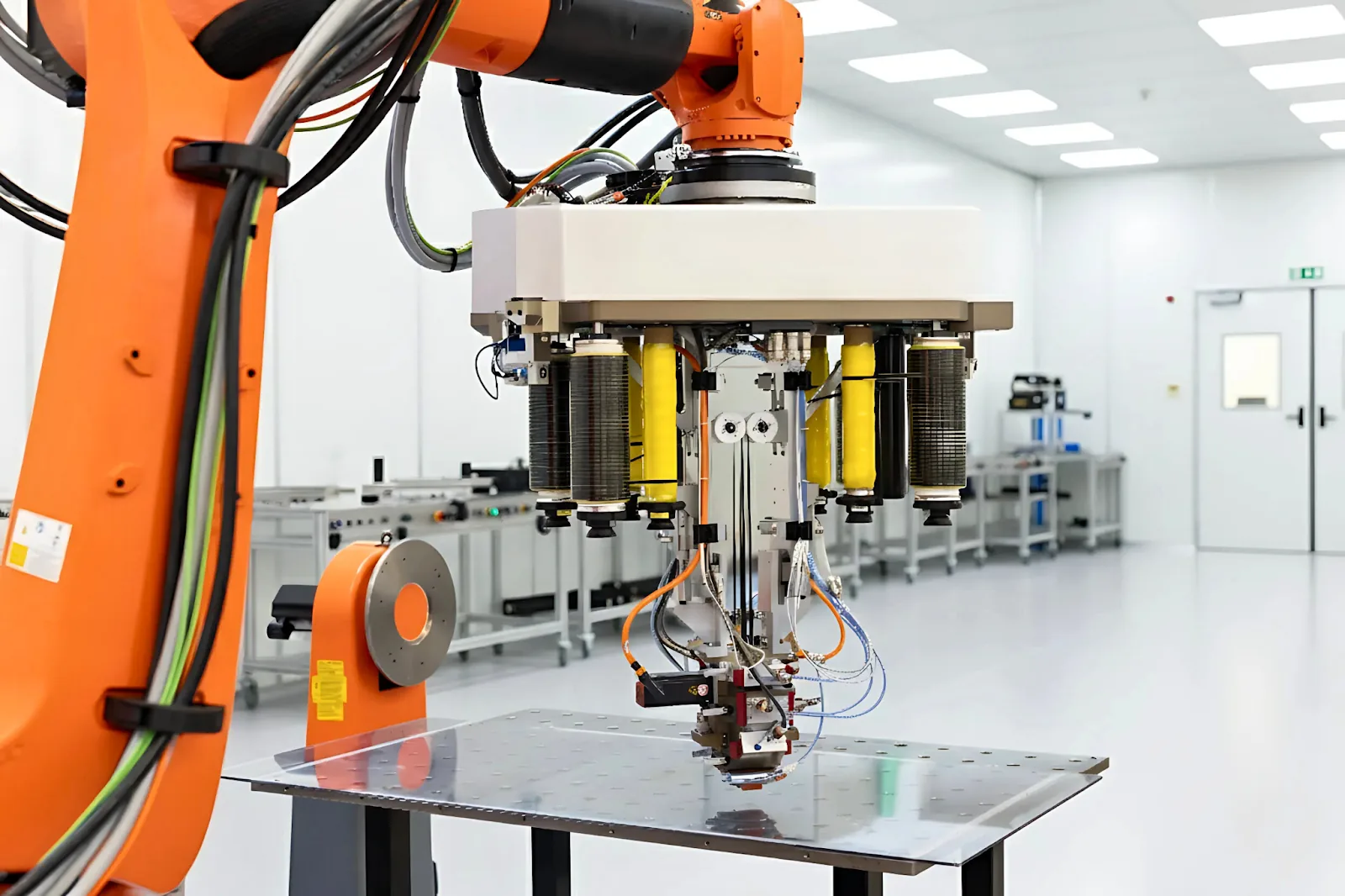

The AFP-X platform features purpose-built mounting positions optimized for production environments, with quick-change capabilities that minimize downtime during sensor maintenance or reconfiguration. All sensors connect through industrial-grade communication protocols directly to the system's PLC, ensuring deterministic real-time data acquisition essential for production traceability. The architecture supports hot-swapping of sensors and automatic configuration recognition, enabling continuous production even during sensor updates or replacements.

AFP-X's true innovation lies in its digital twin architecture, which creates a complete virtual representation of every manufactured part in real-time. This isn't just data logging—it's a comprehensive production intelligence system that enables predictive quality control and zero-defect manufacturing strategies.

The system employs an advanced OPC UA server architecture that streams synchronized data from all sensors, the robotic platform, and the AFP system into a unified digital twin environment. Every data point is precisely timestamped and spatially referenced, creating a four-dimensional map (3D + time) of the entire manufacturing process. This digital twin operates on multiple levels:

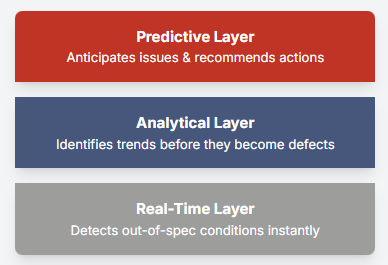

• Real-Time Layer: Processes incoming sensor streams with sub-millisecond latency, enabling immediate detection of out-of-specification conditions
• Analytical Layer: Performs continuous statistical process control (SPC) analysis, identifying trends before they become defects
• Predictive Layer: Leverages historical production data to anticipate potential issues and recommend preventive actions

The production monitoring system handles terabytes of data per shift through intelligent edge computing, performing initial processing at the sensor level while streaming critical metrics to the digital twin. This architecture ensures that production never slows down due to data processing bottlenecks. When the laser scanner detects a potential wrinkle formation, for instance, the system not only flags it immediately but also correlates it with thermal data and compaction force to determine if intervention is required—all while maintaining full production speed.

For aerospace applications, this means every square millimeter of every part has a complete digital record, enabling full traceability from raw material to finished component—a critical requirement for aerospace certification and quality systems. The digital twin maintains a complete quality record for each part, automatically generating the documentation required for aerospace certification, including comprehensive process data proving that every layer was manufactured within specified parameters—essential for meeting AS9100 and NADCAP requirements.

AFP-X transforms quality assurance from reactive inspection to proactive defect prevention through advanced AI algorithms specifically trained on aerospace composite manufacturing. The system employs sophisticated machine learning models, including convolutional neural networks (CNNs) optimized for composite defect detection, achieving detection rates exceeding 95% for critical aerospace defects.

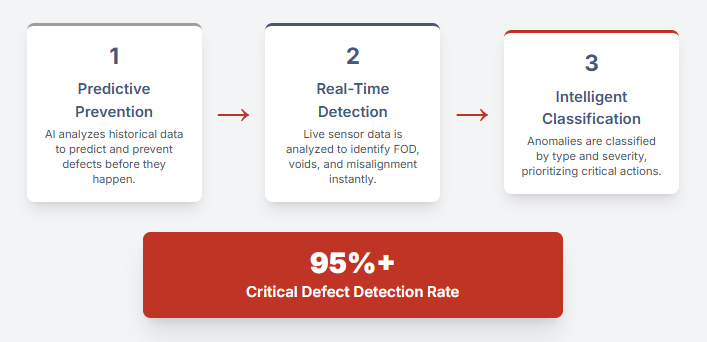

The quality assurance system operates on three integrated levels:

Predictive Prevention: By analyzing patterns from thousands of production hours, the AI predicts likely defect formation based on current process parameters and environmental conditions. This allows operators to adjust parameters proactively, preventing defects before they occur.

Real-Time Detection: As production proceeds, the system continuously analyzes sensor streams against aerospace quality standards. The AI models process thermal images, dimensional scans, and force profiles in parallel, identifying defects such as:

• Foreign object debris (FOD)
• Delaminations and voids exceeding aerospace thresholds
• Fiber misalignment beyond ±3 degrees
• Inconsistent resin content
• Thermal degradation indicators

Intelligent Classification: Detected anomalies are automatically classified by type, severity, and required action. The system distinguishes between cosmetic issues and structural defects, prioritizing interventions based on aerospace certification requirements.

The implementation involves converting sensor data into standardized formats that feed into the machine learning pipeline. These models are initially trained on extensive databases of known defect scenarios, then continuously refined with production data. The system maintains certainty scores for each detection, ensuring operators can make informed decisions about part acceptance or rework requirements.

AFP-X's sensor suite doesn't just monitor the product—it continuously assesses the health of the production system itself, enabling predictive maintenance strategies that maximize uptime in high-volume production environments. This production intelligence capability is crucial for maintaining the consistent output aerospace manufacturers require.

The predictive maintenance system monitors:

• Component Wear Patterns: Tracking roller wear, cutter blade degradation, and heating element performance to schedule maintenance before failures occur
• Calibration Drift: Automatically detecting when sensors or mechanical systems drift from calibration, triggering recalibration procedures before quality is affected
• System Performance Trends: Analyzing long-term trends in cycle times, material usage, and quality metrics to identify optimization opportunities

Machine learning algorithms analyze patterns from the global fleet of AFP-X systems, creating predictive models that become more accurate with each production hour logged. This collective intelligence means that lessons learned from one system immediately benefit the entire network, accelerating the maturation of predictive capabilities.

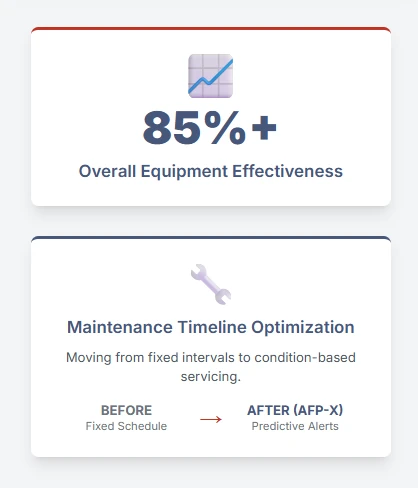

The system provides actionable intelligence through maintenance scheduling recommendations based on actual wear rather than fixed intervals, performance optimization suggestions derived from best-in-class production data, and early warning systems that alert operators days or weeks before potential issues. For aerospace manufacturers, this translates to OEE (Overall Equipment Effectiveness) rates exceeding 85%, with some installations achieving near-continuous production for weeks at a time.

The digital twin capability of AFP-X represents more than just a virtual model—it's a complete digital ecosystem that enables true Aerospace 4.0 manufacturing. Every manufactured part exists simultaneously in physical and digital form, with the digital twin serving multiple critical functions that revolutionize aerospace composite production.

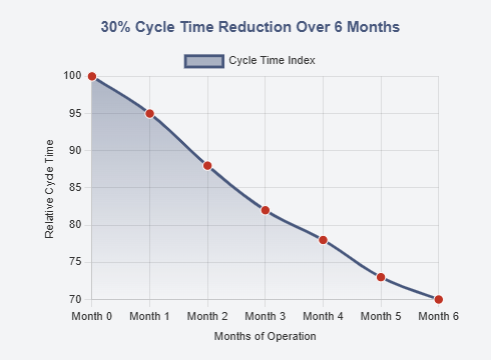

Process Optimization: The digital twin continuously learns from production data, automatically refining process parameters to improve quality and reduce cycle times. This self-optimizing capability means that AFP-X systems become more efficient over time, with some installations reporting 30% cycle time reductions after six months of operation. The system identifies optimal heating profiles, layup speeds, and compaction forces for different materials and geometries, creating a knowledge base that improves with every part produced.

Virtual Commissioning: New parts can be fully validated in the digital environment before physical production begins, reducing development time and material waste. The digital twin simulates the entire manufacturing process, predicting potential issues and optimizing toolpaths before committing to physical production. This capability is particularly valuable for complex aerospace geometries where traditional trial-and-error approaches would be prohibitively expensive.

Supply Chain Integration: The digital twin interfaces with enterprise systems, providing real-time visibility into production status, quality metrics, and delivery predictions. This integration enables aerospace manufacturers to make data-driven decisions about production scheduling and resource allocation. Partners and customers can access relevant production data through secure interfaces, creating unprecedented transparency in the aerospace supply chain.

Knowledge Transfer: Digital twin data is fully transferable between AFP-X systems, allowing manufacturers to replicate successful production parameters across multiple sites. This standardization capability is essential for aerospace suppliers who must maintain consistent quality across global production networks. The digital twin also serves as a training platform, allowing new operators to learn from accumulated production intelligence without risking actual materials.
