Advanced Material Compatibility: Expanding Manufacturing Possibilities with AFP-XS
September 1, 2025
This is some text inside of a div block.
Deep dive into the different materials that AFP-XS can process, how multi-material capability works, and what this enables for industry applications - comparing advantages over other systems.
The manufacturing landscape is rapidly evolving, with demands for more sophisticated, multi-functional components driving innovation in material processing technologies. At the forefront of this evolution is the AFP-XS (Automated Fiber Placement - Extended System), which represents a significant leap forward in material compatibility and processing flexibility. This comprehensive exploration reveals how AFP-XS is revolutionizing manufacturing possibilities through its unprecedented multi-material capabilities.

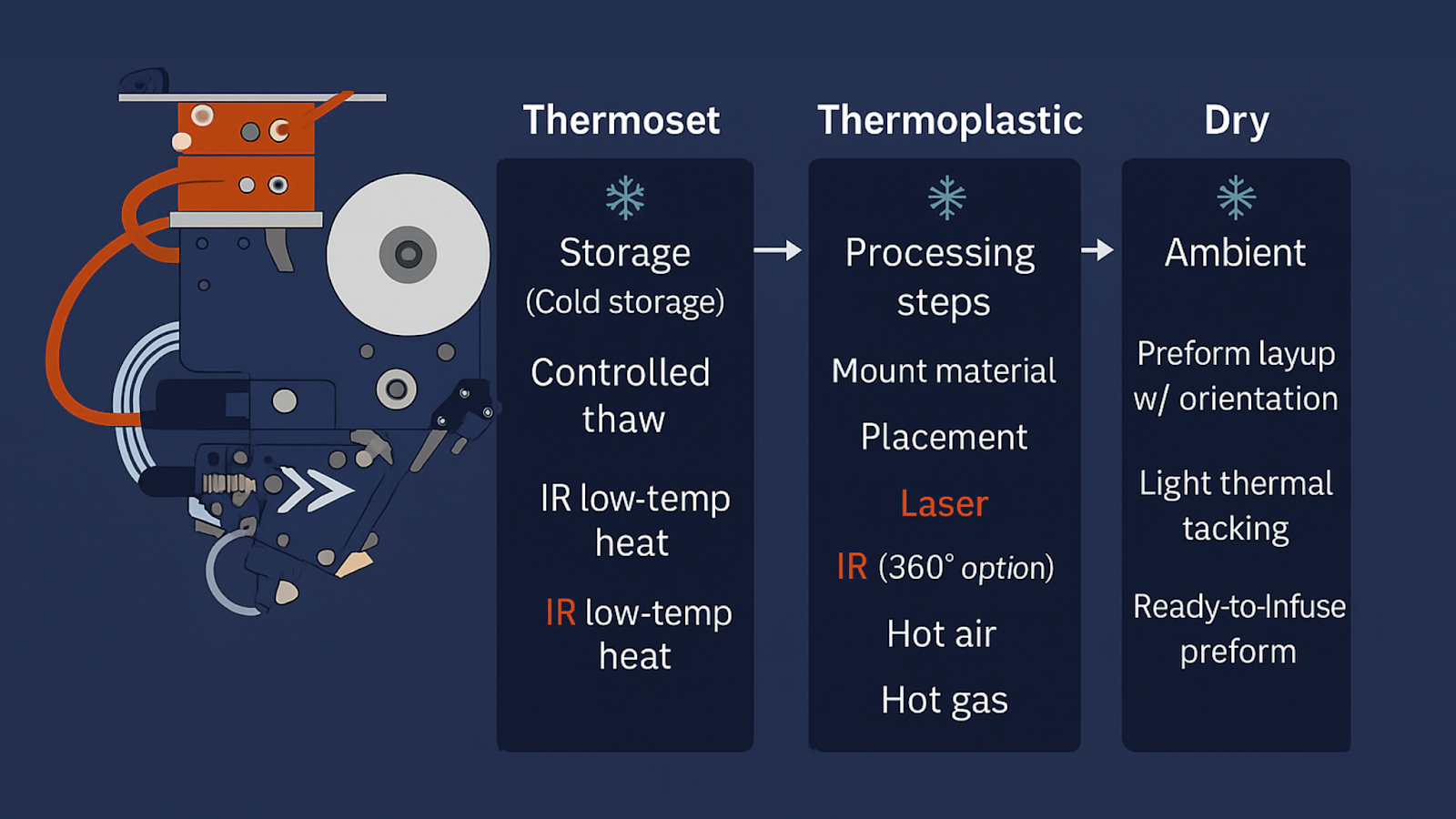

The foundation of AFP-XS's versatility lies in its ability to handle three distinct categories of materials, each with unique processing requirements and characteristics.
Thermoset Materials represent the most challenging category, requiring meticulous handling from storage to application. These materials arrive from cold storage at near-freezing temperatures, where the matrix remains stable and chemical reactions are effectively paused. The processing pipeline begins with a controlled thawing process, allowing the material to reach optimal working conditions. AFP-XS features a built-in mechanism to automatically pick up and manage backing films or separator films, streamlining what was previously a manual process. During processing, low-temperature heaters, typically infrared lamps, provide precisely controlled thermal energy.
Thermoplastic Materials present different challenges, requiring no freezing or specialized storage but demanding significantly higher processing temperatures during placement. AFP-XS addresses this through multiple heating technologies including laser systems, flash lamps, hot air guns, and hot gas guns, each calibrated for specific material requirements.
Dry Materials involve creating preforms of dry fiber with precisely controlled orientation. This process requires careful thermal management to achieve proper tacking between material layers while maintaining the desired fiber architecture, resulting in ready-to-infuse preforms.
One of the most impressive aspects of AFP-XS is its approach to multi-material processing. While the system doesn't process different material types simultaneously within the same laminate—due to their vastly different processing requirements—it excels at rapid transitions between materials.

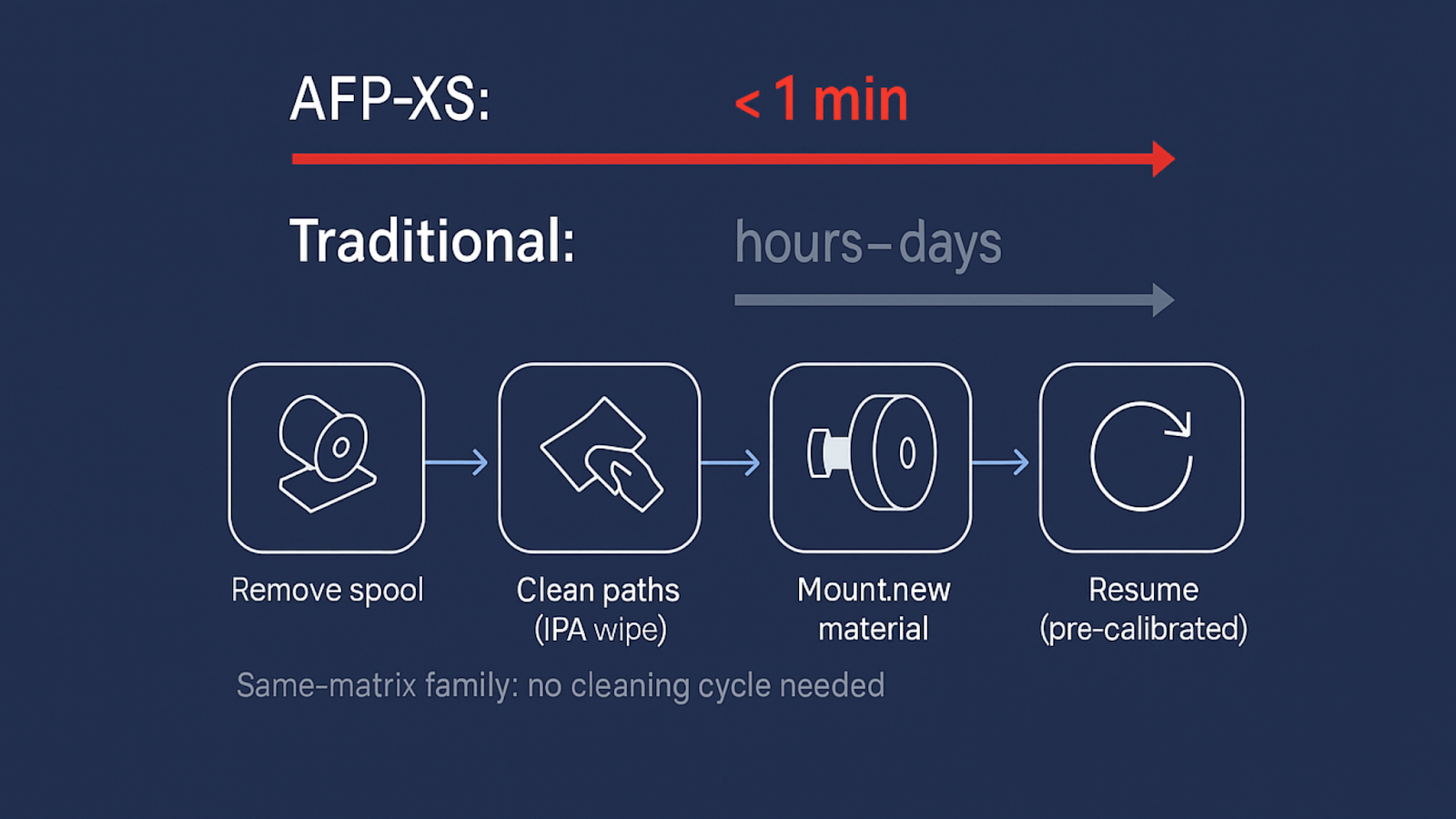

The engineering achievement that enables AFP-XS to switch between materials in under a minute represents a fundamental breakthrough in manufacturing efficiency. This rapid changeover capability stems from the system's modular design, where key components can be quickly swapped while maintaining precise calibration and cleanliness standards.
The changeover process involves removing the current material spool, cleaning critical pathways with isopropyl alcohol and damp cloths, and mounting the new material. What traditionally required hours or even days of downtime in competing systems becomes a sub-minute operation, dramatically improving manufacturing throughput and flexibility.
For materials within the same matrix family—such as carbon fiber and glass fiber thermoplastic tapes—the system requires no cleaning cycle between switches, further accelerating the changeover process and preventing contamination between different material types.
The sophistication of AFP-XS extends to its comprehensive material handling and thermal management capabilities. The system manages materials with vastly different physical properties—from honey-like viscosity thermosets to rigid thermoplastics to flexible dry fiber fabrics—all within a unified processing framework.
Safety protocols are paramount, particularly with thermoset materials that can cause allergic reactions. AFP-XS incorporates comprehensive safety recommendations, including protective equipment and ventilation systems, ensuring operator safety while maintaining optimal processing conditions.
Dimensional precision is critical for system performance. Materials must meet strict tolerance requirements—for example, a tape specified as 1mm thick and quarter-inch wide must maintain these exact dimensions. This precision enables the system to calibrate heat, pressure, feed speed, and placement parameters with confidence.

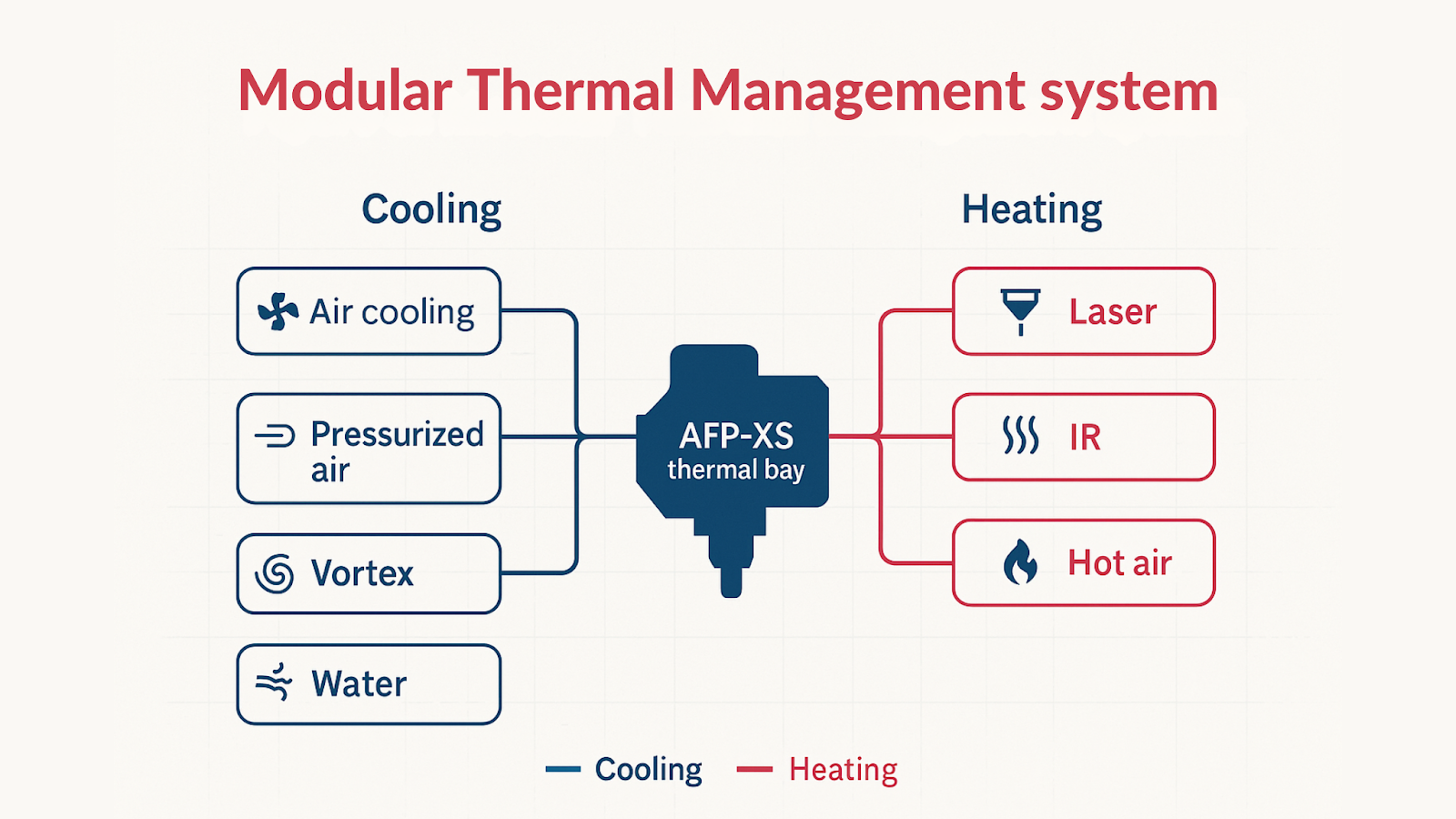

Thermal management represents one of AFP-XS's most sophisticated capabilities. Processing materials with temperature requirements that can differ by hundreds of degrees requires unprecedented flexibility. The system employs multiple cooling approaches: air cooling, pressurized air cooling, vortex cooling, water cooling, and advanced condenser systems. The heating side demonstrates equal sophistication, with multiple heating technologies available depending on material requirements and part geometry.
The range of materials compatible with AFP-XS continues to expand, driven by both technological advancement and market demand for more sustainable and high-performance materials.
Recent developments have proven AFP-XS compatibility with vitrimers—a revolutionary class of materials that combine the processing advantages of thermoplastics with the performance characteristics of thermosets. Additionally, the system has demonstrated success with various novel chemistries, opening doors to applications previously considered impossible.
Key compatibility factors that determine material suitability include:
With these parameters met, AFP-XS can successfully process ceramic matrix composites, metal-reinforced tapes, and other advanced material systems. The push toward sustainability has led to exciting developments in natural fiber composites, with AFP-XS successfully processing bamboo-based and flax-based materials, representing a significant step toward more sustainable manufacturing practices.
AFP-XS incorporates sophisticated monitoring technologies that ensure consistent quality throughout the multi-material processing sequence. While the system focuses on placement-related quality control rather than correcting material-specific defects in real-time, its monitoring capabilities are comprehensive and effective.
The quality control suite includes laser scanners that perform real-time point cloud analysis, monitoring gap and overlap tolerances with immediate operator alerts when tolerances are exceeded. Thermal cameras provide continuous monitoring of heating and cooling processes, while built-in parameter controls manage both low and high-temperature heating applications. Force sensors ensure optimal compaction pressure for each material type.

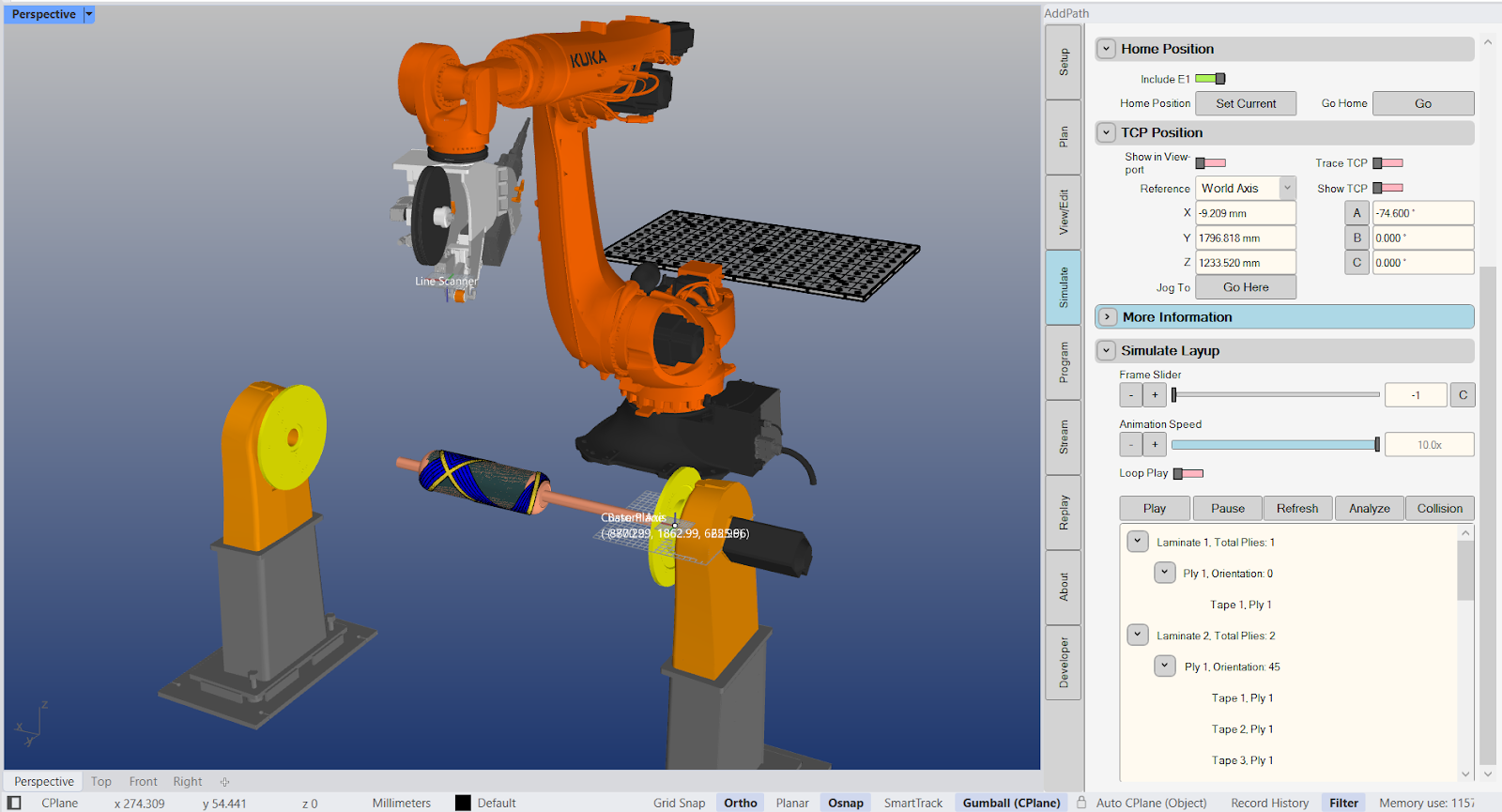

All monitoring data streams in real-time to AddPath software, where operators can visualize the manufacturing process in three dimensions. This comprehensive data presentation enables immediate decision-making and quality assurance throughout the manufacturing process, ensuring that parts are manufactured within tolerance and meet quality standards.
The multi-material capabilities of AFP-XS are driving innovation across multiple industries, solving manufacturing challenges that were previously considered insurmountable.
Research and Development environments benefit significantly, as researchers and engineers can evaluate multiple materials without investing in multiple processing systems. AFP-XS enables rapid material evaluation and comparison, accelerating the development of new applications and optimizing material selection for specific use cases.
A compelling example involves creating parts with complex electrical insulation requirements. By using glass fiber layers for electrical insulation properties combined with carbon fiber layers for structural strength and stiffness, manufacturers can create lightweight, strong components that meet demanding electrical isolation requirements. These applications are particularly valuable in motor applications and other electrical systems where performance and safety are paramount.
The system's versatility extends to various industries requiring specialized material combinations, from aerospace applications demanding specific strength-to-weight ratios to automotive components requiring tailored thermal and mechanical properties.

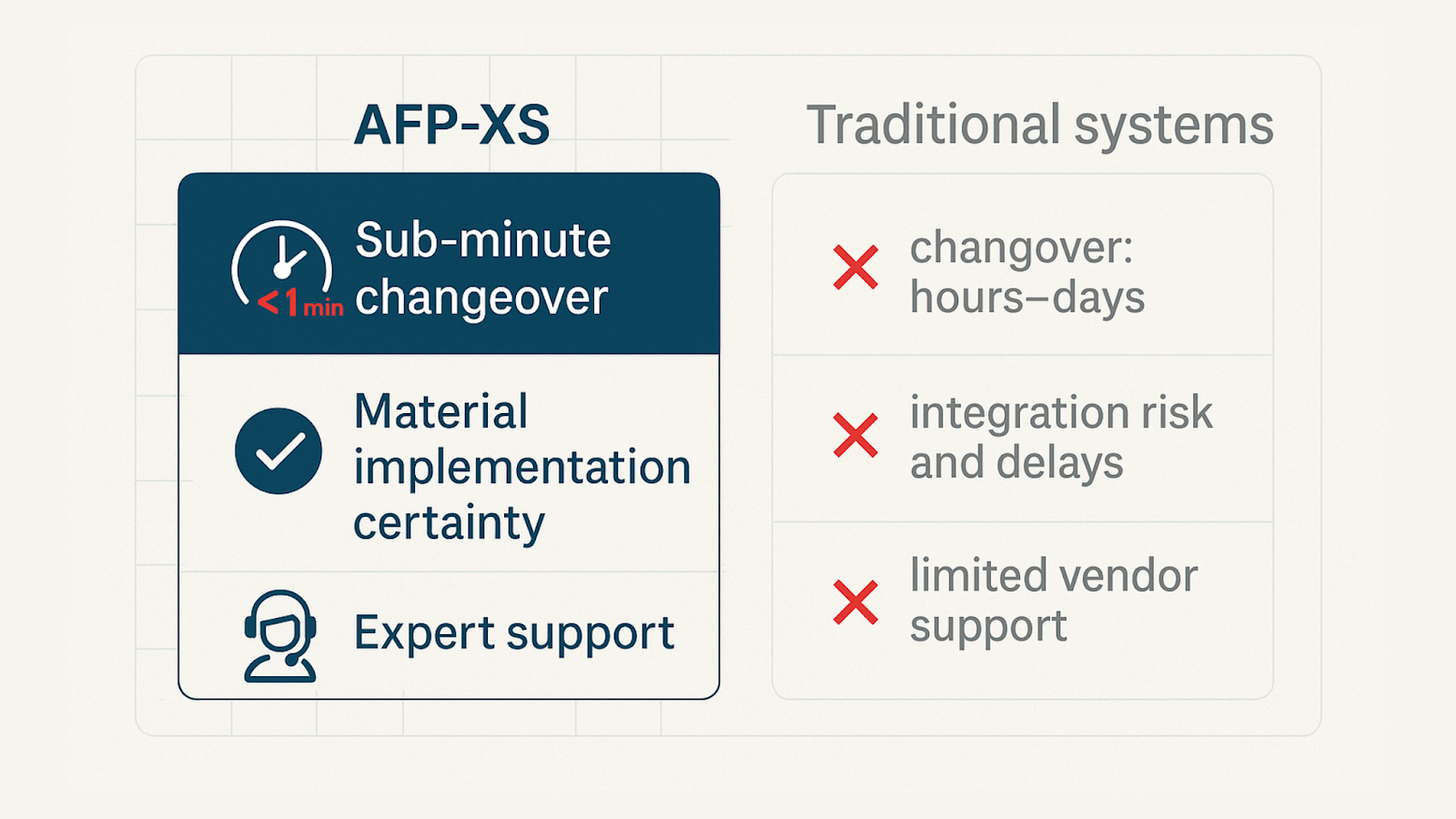

When comparing AFP-XS to other fiber placement technologies, several key advantages distinguish it from competing systems.
The most significant competitive advantage lies in material changeover speed. Where competing fiber placement systems typically require days of downtime to switch between materials, AFP-XS accomplishes the same transition in under a minute. This dramatic improvement in efficiency translates directly to increased productivity and reduced manufacturing costs.
AFP-XS offers a high degree of certainty for material implementation success. The combination of flexible thermal management, modular design, and comprehensive support from Addcomposites ensures that new materials can be successfully integrated with minimal risk and development time.
The Addcomposites support team provides crucial assistance for parameter optimization when working with new materials. This service eliminates much of the trial-and-error typically associated with implementing new materials, providing customers with proven processing parameters and reducing time-to-production. The modular flexibility to switch between different heating and cooling systems means the platform can adapt to future material requirements without requiring complete system replacement.

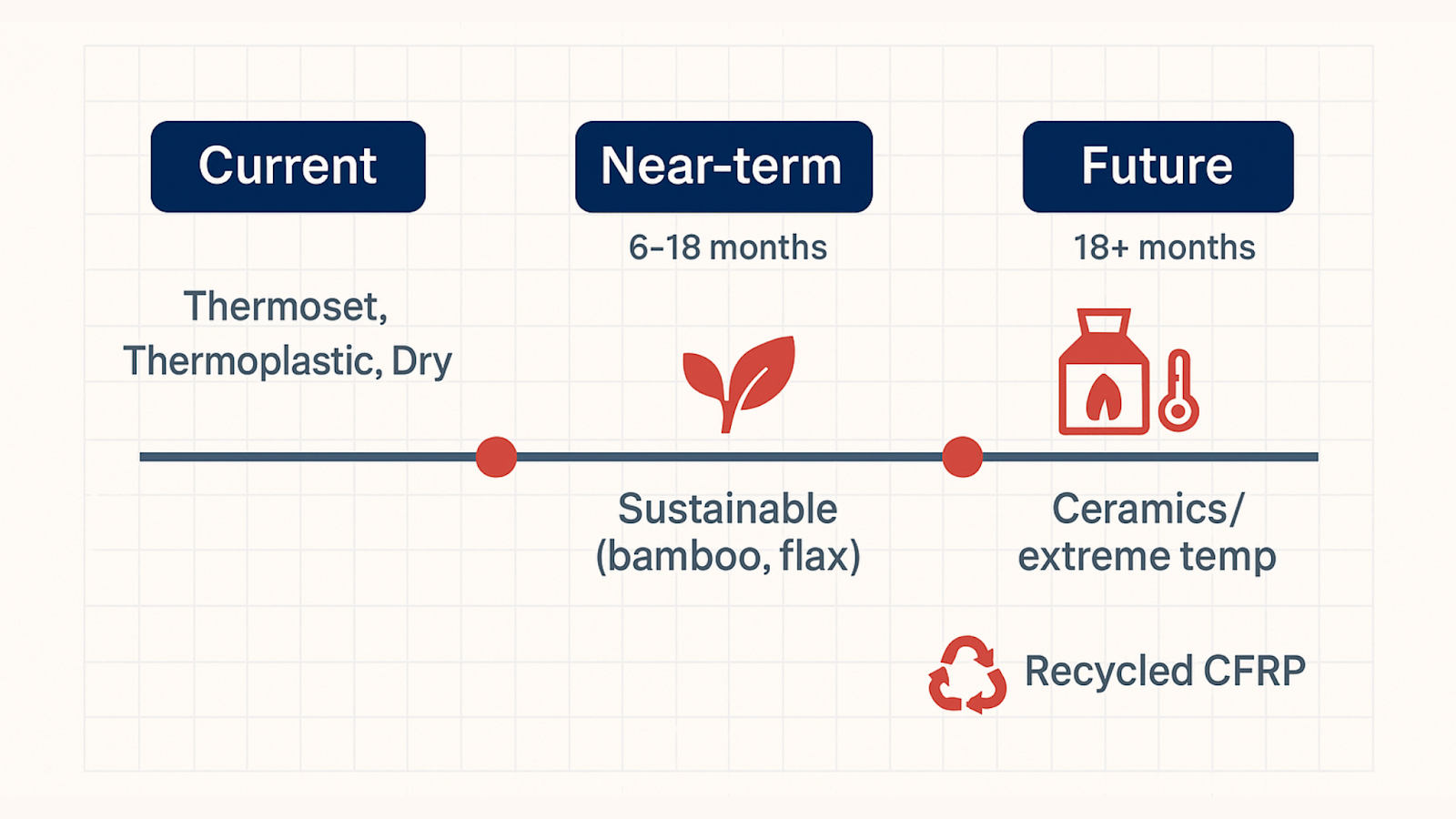

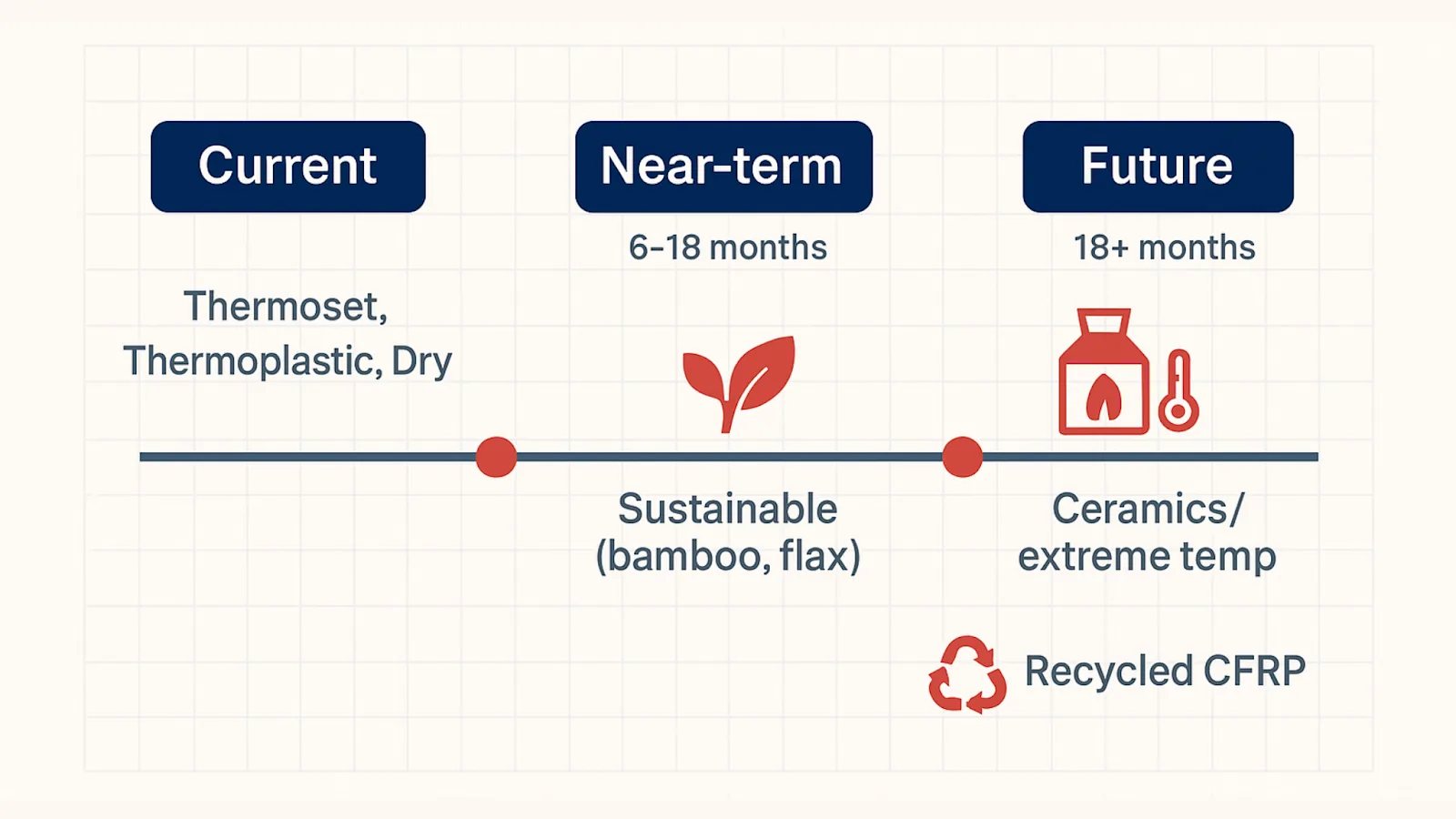

Looking ahead, the AFP-XS material roadmap reflects both market demands and technological possibilities, positioning the system for continued leadership in advanced manufacturing.
Sustainable materials development continues to drive innovation, with natural fiber composites leading the way. Bamboo and flax-based materials offer the potential for significantly reduced environmental impact while maintaining performance characteristics suitable for demanding applications.
For extreme environment applications, ceramic-based composites represent the next frontier. These materials enable applications in high-temperature environments where traditional composites would fail, opening new markets and applications for AFP-XS technology.
The integration of recycled materials, including recycled carbon fiber tapes and other reclaimed composite materials, represents a significant opportunity for both environmental benefit and cost reduction. AFP-XS's material flexibility positions it well for this growing market segment.
With partnerships spanning more than 50 research institutes worldwide, Addcomposites is building a comprehensive network for material development and validation. This collaborative approach ensures that AFP-XS remains at the forefront of material compatibility as new chemistries and applications emerge.
The collaborative network enables rapid validation of new materials and processing parameters, accelerating the development timeline from laboratory concept to production implementation. Research partners contribute valuable insights into emerging material technologies, while Addcomposites provides the platform and expertise to translate these innovations into practical manufacturing solutions.
This ecosystem approach creates a continuous feedback loop of innovation, where challenges identified in one application often lead to solutions applicable across multiple industries and use cases. The result is a constantly evolving platform that stays ahead of market demands and technological possibilities.
The advanced material compatibility of AFP-XS represents a fundamental shift in composite manufacturing. Whether you're developing aerospace components, sustainable bio-based products, or high-temperature applications, AFP-XS provides the technological foundation for innovation.
Ready to explore what's possible with your materials?
Addcomposites offers comprehensive support for challenging materials and multi-material designs:
Don't let material limitations constrain your innovation. Contact Addcomposites today to discover how AFP-XS can transform your manufacturing possibilities.
Transform your manufacturing capabilities with AFP-XS – where material compatibility meets manufacturing excellence.
