Advanced Filament Winding Technologies for Next-Generation Missile Structures
October 9, 2025
This is some text inside of a div block.
The defense industry stands at a critical juncture where traditional manufacturing methods can no longer meet the demanding requirements of modern missile systems. Today's missiles require structures that can withstand extreme launch acceleration loads, aerodynamic pressures, and internal payload stresses while maintaining minimal weight. The complexity increases exponentially when considering the diverse components involved—from high-pressure engine casings and RF-transparent radomes to precision control surfaces and multi-stage interfaces.
Traditional filament winding, while proven effective for cylindrical structures, falls short when addressing the complete spectrum of missile components. Each element—whether it's the main engine casing experiencing internal pressure buildup, the nose cone housing sensitive avionics, or the guide fins controlling direction—demands specialized manufacturing approaches. This complexity has driven the industry toward revolutionary hybrid manufacturing solutions that combine the best of multiple technologies into unified, intelligent systems.

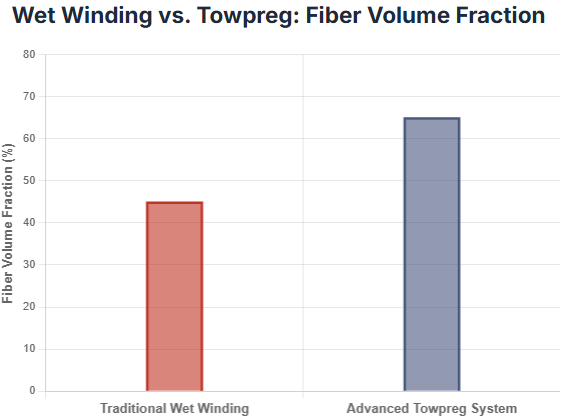

Material selection fundamentally determines the success or failure of missile structures under extreme operational conditions. The shift from wet winding to advanced towpreg systems represents a crucial evolution in achieving consistent, high-performance results. Carbon fiber composites with towpreg technology deliver superior fiber volume fraction control, ensuring dimensional stability and eliminating the risks of dry spots or resin-rich areas that could compromise structural integrity.

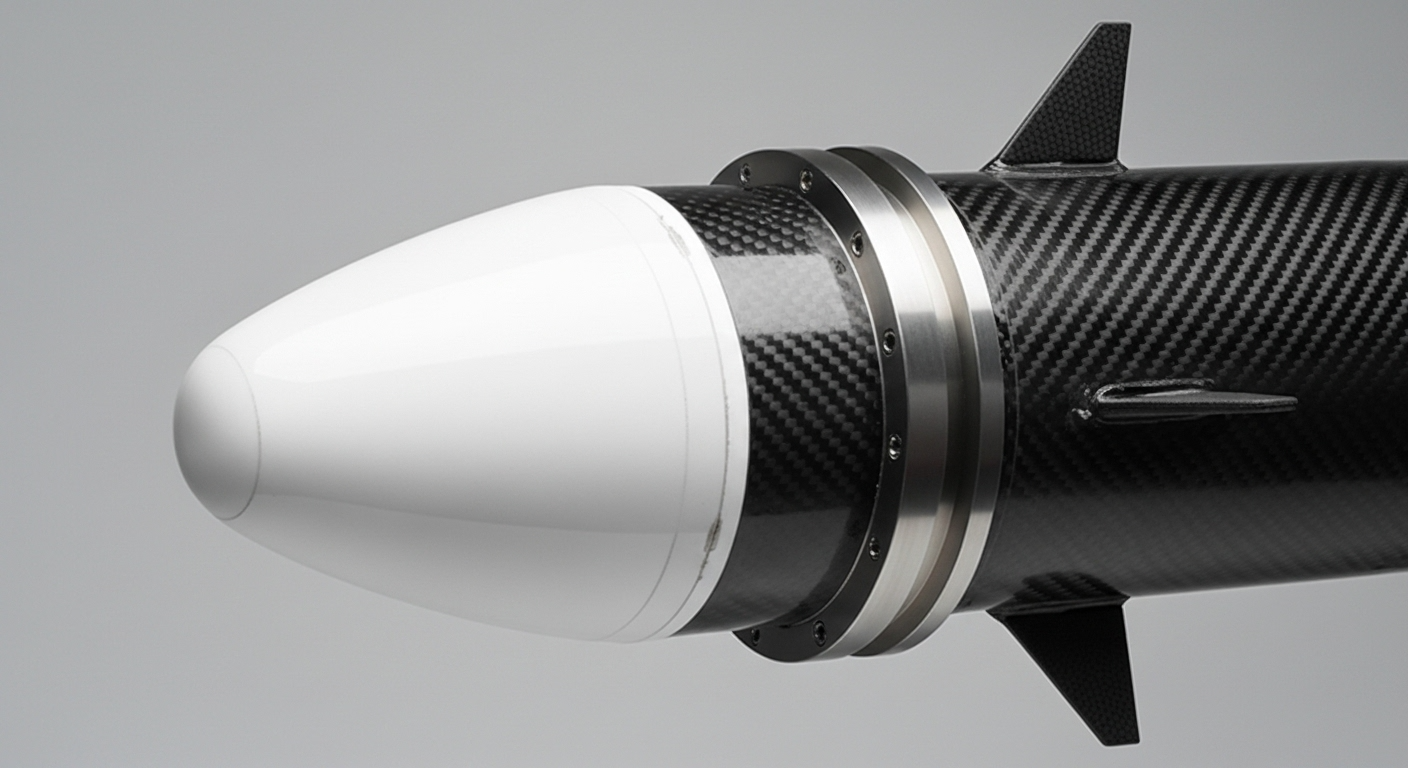

For high-pressure engine casings, particularly in solid rocket motors, the precise resin content control offered by towpreg systems directly translates to higher pressure capabilities. The material must withstand both hoop stresses (circumferential) and meridional stresses (longitudinal) created by internal combustion pressures. Meanwhile, radome structures require an entirely different approach—glass fiber composites that maintain RF transparency while providing adequate protection against vibrational loading and environmental factors. Advanced systems now enable the use of specialized ablative materials for nozzle sections, protecting critical components from extreme thermal loads while maintaining thrust efficiency.
The distribution of loads in missile structures demands sophisticated winding strategies that go beyond simple helical or hoop patterns. Modern missiles experience multi-axial stress states that require careful optimization of fiber orientation and placement density. In solid rocket motor casings, internal pressure creates primary loading in the hoop direction, necessitating robust circumferential reinforcement. However, the meridional direction, while less heavily loaded due to one open end, still requires strategic reinforcement without creating excessive material buildup at polar openings.

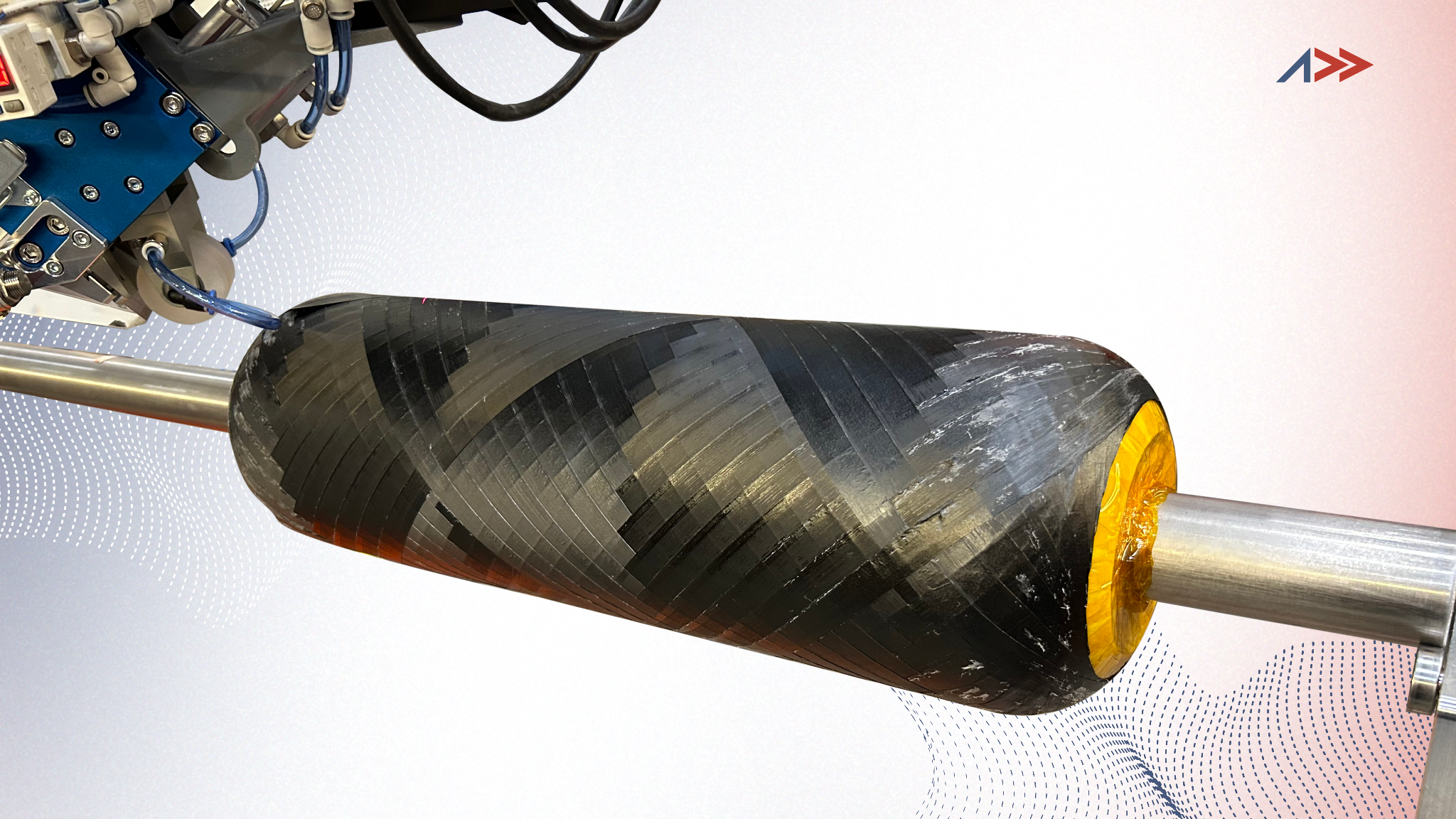

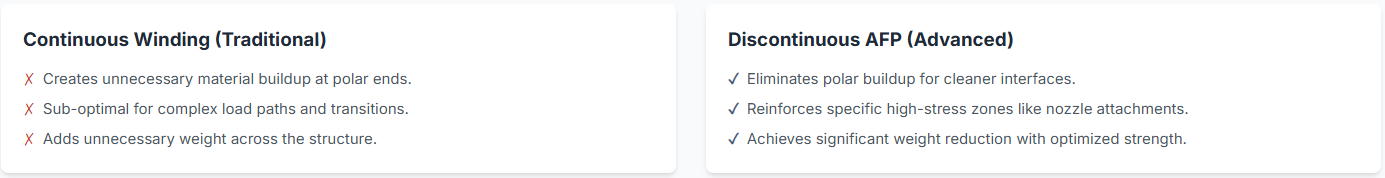

The breakthrough comes with discontinuous winding capabilities that allow precise control over fiber placement in transition zones. This approach enables engineers to reinforce specific areas—such as nozzle attachment points or interstage connections—without the weight penalty of continuous winding. Variable angle trajectories can now be programmed to follow optimal load paths, creating structures that are not just strong, but intelligently designed for their specific stress distributions. This level of control extends to creating thinner, more precise structures for RF-transparent components, where every additional layer could impact electromagnetic performance.

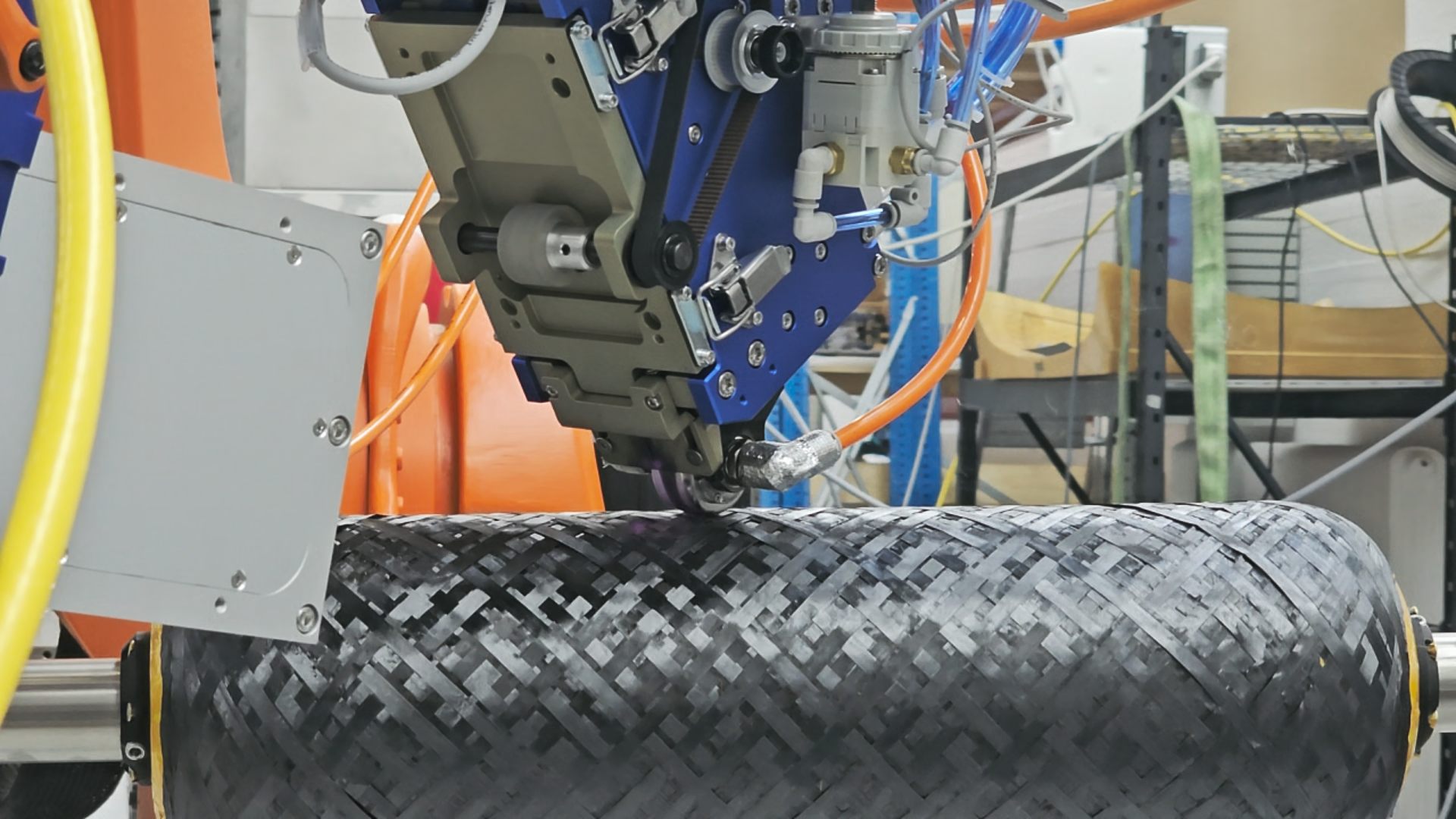

The integration of Automated Fiber Placement (AFP) with extended capabilities into traditional filament winding systems represents a paradigm shift in composite manufacturing. The Addcomposites AFP-XS system transcends the limitations of conventional approaches by combining continuous filament winding with selective discontinuous placement in a single, programmable platform. This hybrid approach enables manufacturers to produce entire missile structures—from cylindrical engine casings to complex aerodynamic surfaces—without changing equipment or interrupting the production flow.

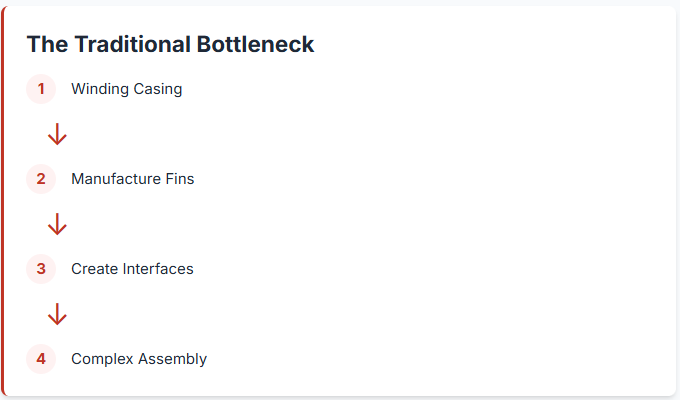

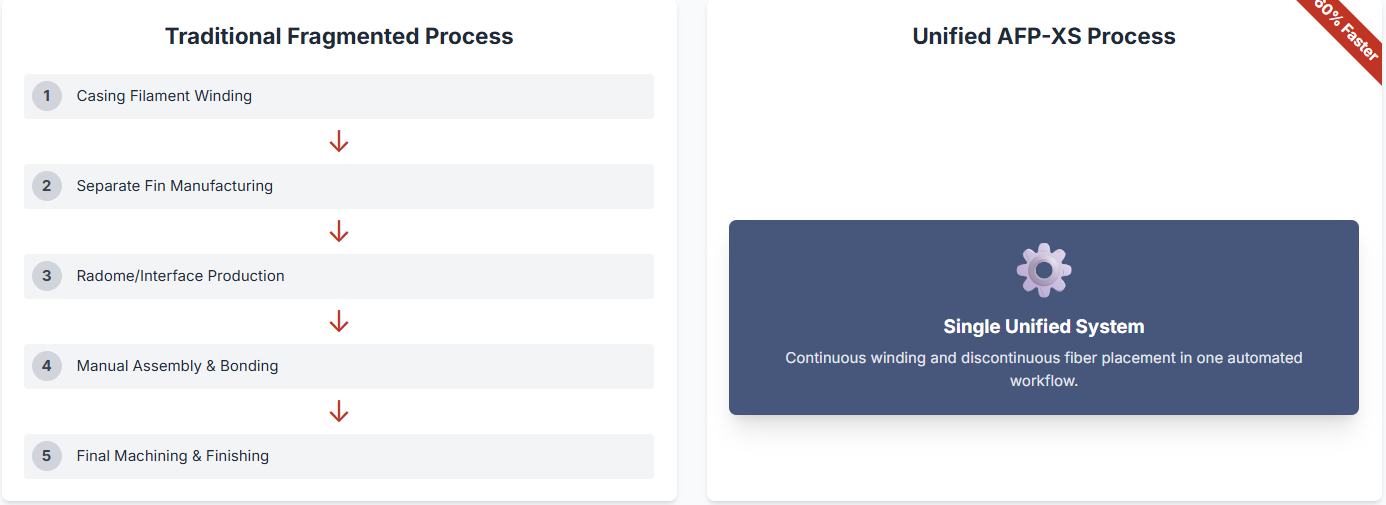

The true revolution lies in the system's ability to seamlessly transition between manufacturing modes through software control alone. Continuous filament winding provides maximum strength for primary structural elements, while AFP capability enables precise placement for complex geometries like guide fins, payload interfaces, and transition zones. This unified approach eliminates the traditional bottlenecks where components manufactured separately required complex assembly procedures. The result is not just faster production, but fundamentally better structures with optimized fiber continuity across previously impossible transitions.
Achieving the exacting dimensional tolerances required for multi-stage missile configurations demands revolutionary approaches to mandrel design and manufacturing. The emergence of large-format additive manufacturing with continuous fiber reinforcement, such as Addcomposites' SCF3D technology, has transformed what's possible in mandrel production. These advanced 3D-printed mandrels offer thermal stability superior to traditional materials while enabling complex internal geometries previously impossible to manufacture.
The choice between soluble, collapsible, or permanent mandrels now extends beyond simple geometric considerations. For closed structures like pressure vessels, soluble mandrels eliminate the extraction challenge while maintaining surface quality. Open structures like radomes benefit from reusable metal tools that can withstand multiple production cycles. Critical to success is the post-processing strategy—precision machining of mandrel surfaces ensures the tight tolerances required for interstage connections, while integrated taper angles facilitate part removal without compromising dimensional accuracy. The integration of interface rings before mandrel removal ensures perfect alignment in multi-stage assemblies, while balanced laminate designs minimize post-cure deformation.
The future of missile manufacturing is here. Addcomposites' AFP-XS technology combines traditional filament winding with advanced AFP capabilities in a single system, enabling you to manufacture complete missile structures with unprecedented precision and efficiency.
