A digital twin for composite parts manufacturing

Overview

  • The manufacturing of structural parts made from carbon fiber composite materials is a complex process that requires extended quality control.

  • To facilitate better decisions about the mechanical properties of the part and, consequently, the need for re-work, a manufacturing database that creates a digital twin of the part as manufactured by merging incoming sensor data and use it to determine the margin of safety for the part.

  • An example is shown via the Automated Fiber Placement (AFP) process with observed defects and other features, with real-time FEA simulation possibility to evaluate the defect and rework.

What are digital twins?

A digital twin can be defined as a virtual replica of the product. It starts as a 3D model that is exactly the same as the physical version of the product. The main characteristic of a digital twin is that it allows analyzing real-world data and real-time monitoring of the physical product even after it has left the factory, and it is operating in the field.

The data is collected by means of sensors on the physical version of the product and it is then sent to the digital twin to study the behavior of the physical twin. By using this practice, it is possible to:

  • Understand the operation of products and production lines.

  • Prevent accidents.

  • Predict asset downtime.

  • Optimize products.

While AFP processes have been taking an important place in manufacturing in recent years, this technology has also been considered cost-effective only for a group of niche industries. Due to the complexity of the production process safety margins need to be included in the mechanical design of such parts, which in turn offsets some of the advantages of lightweight components. A better understanding and documentation of the production process will help to keep the safety margins within reasonable ranges and will also enable more efficient defect handling and rework processes.


State of digital twins in the Industry

For the aerospace industry, the investment in the infrastructure to realize a digital twin is especially interesting because the costs of the structural parts that are produced are relatively high and monitoring of parts pays off quickly. Furthermore, substantial savings may be achieved due to a reduction in end-of-line testing. Therefore, the interest in the implementation of digital twins is probably highest in the aerospace industries. The digital implemented and proven in Aerospace can be scaled to achieve economies, thus making it accessible to other industries employing similar techniques.


Production process and possible defects

During the lay-up process a number of variations and defects may occur, that include e.g. gaps or overlaps in the material, distortions of the fabric, wrinkles, or any kind of foreign objects. A few examples are shown in the figure below. The detection of the defects is very often done through human inspection after each layer and in recent times through sensors.

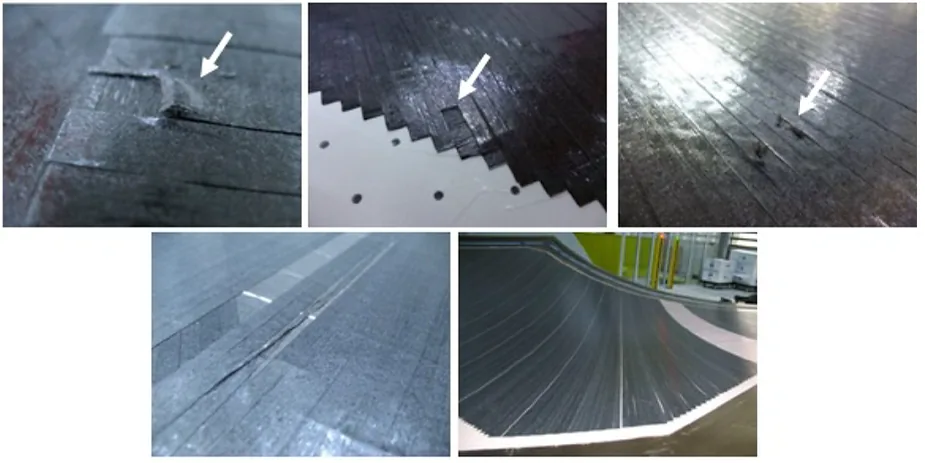

Figure: Various kinds of defects, such as wrinkles, early cut tapes, foreign objects (top row), and large gaps (bottom row)


Sensors for defect detection

The various kinds of defects can be detected by two different modalities:

  1. fiber orientation using a camera to perform analysis of distortions in the material using (texture analysis, physical reflection)

  2. 3D depth data using laser scanners is used to determine gaps, overlaps, and wrinkles.


Recorded Data

Each feature (defect) can have a measured value (manufactured in the database structure) and a simulated value (simulated). These numerical results are classified into three types:

  1. Global data at each ply level and component level e.g. Fiber orientation

  2. Localized data e.g. temperature, pressure

  3. Localized anomalies e.g. Features(defects)


Processing

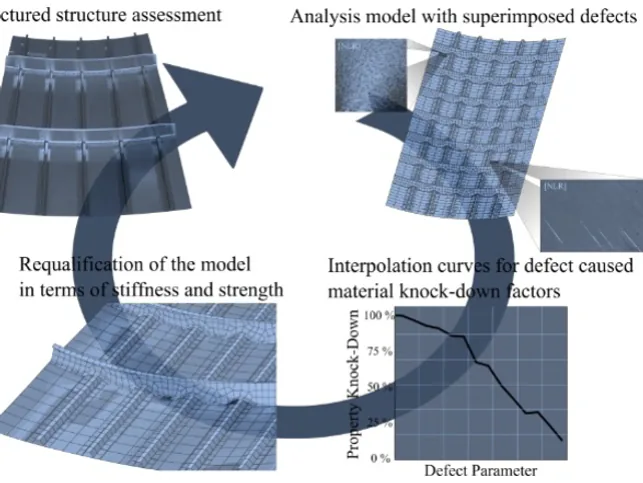

The simulation software is continuously polling these data and as soon as it receives the information that the defect data are complete, it will start the processing. The initial processing will be done through the analytical model to quickly obtain a first estimate about the margin of safety. A detailed finite-element calculation is done only for critical defects that require deeper analysis. The whole process is repeated for each ply, i.e. simulation,

decision making and re-work take place after each ply!


Experiment

For the experiments done in the paper titled "A digital twin for composite parts manufacturing", a modular version of the FScan (fiber orientation measurement) and LScan (depth data) sensor was used to cover the whole width of the material in an Automated Dry Fiber Placement process, where unidirectional non-crimp-fabric was placed on a slightly curved part. The figure below indicates the area covered by the sensor during this particular scanning pass

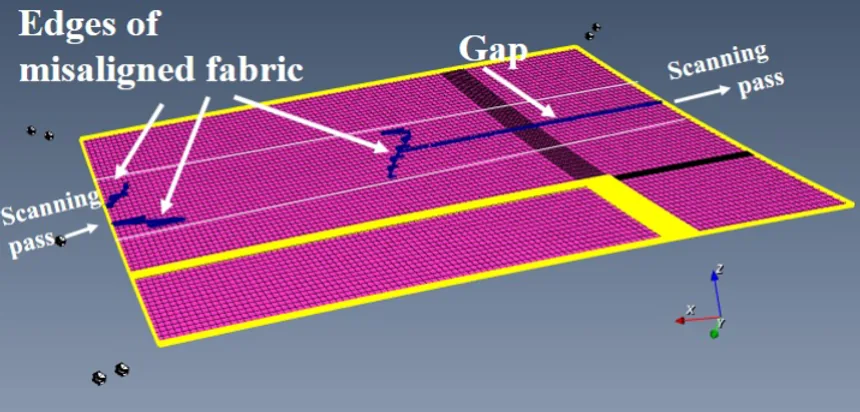

Figure: Features representing ply boundaries and gap back-projected onto the surface of the manufactured part.

The main conclusions from the experiments are that it is possible to collect all relevant information needed for setting up a digital twin of a composite part in real-time and during the production process. The impact of the defects can be calculated in (almost) real-time using an analytical model and only in the case of critical defects a finite-element model is needed that takes about 5 minutes to generate results.


Future

Based on the experiment it seems finally manufacturers can take advantage by collecting all relevant information needed for setting up a digital twin of a composite part in real-time and during the production process. This allows solidifying continuous manufacturing operations as original components can be easily accessed whenever they are required.

this information combined with machine learning and big data can provide the following benefits:

  • Reduce trial and error testing

  • Reduce possible defects during production

  • Shorten the time between the design and production

  • Increase consistency between parts

  • Highlight possible problems
